Removal Procedure

  1. Open the door.
  2. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  or TRIM PANEL REPLACEMENT - SIDE REAR DOOR  .
  3. Remove the door module. Refer to DOOR CONTROL MODULE REPLACEMENT .
  4. Remove the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  or WATER DEFLECTOR REPLACEMENT - REAR DOOR  .
  5. Remove the check link to pillar fasteners.

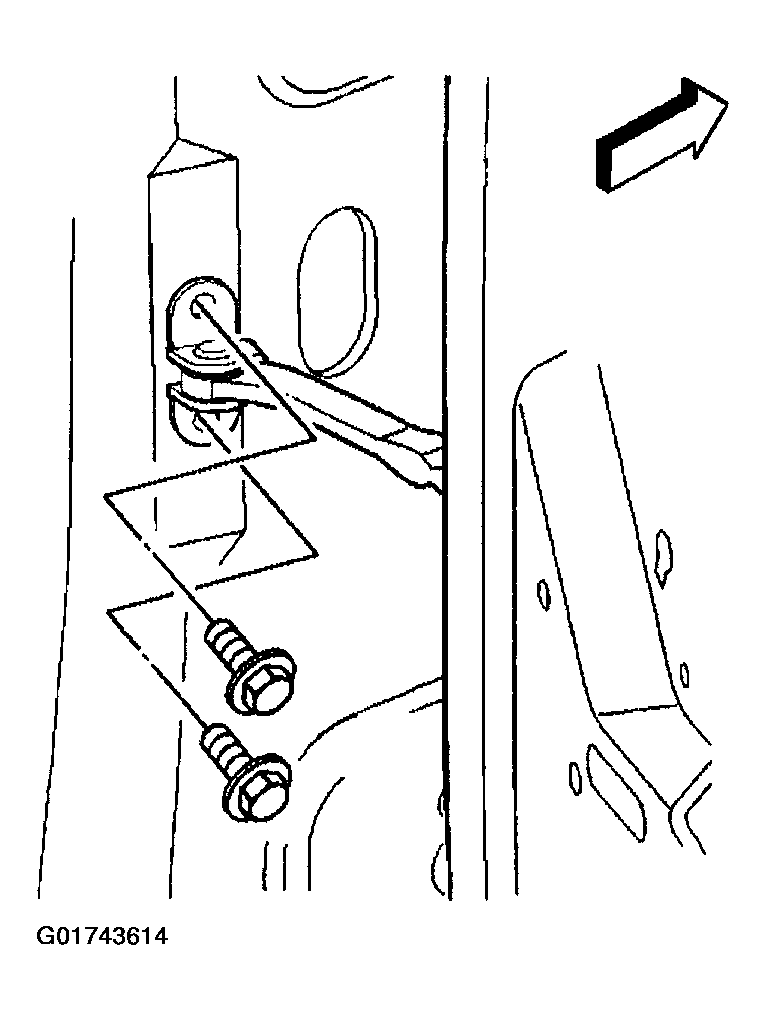

    6. Fig 1: Removing Check Link-To-Pillar Fasteners
    G01743614Courtesy of GENERAL MOTORS CORP.
  6. Remove the close-out grommet.

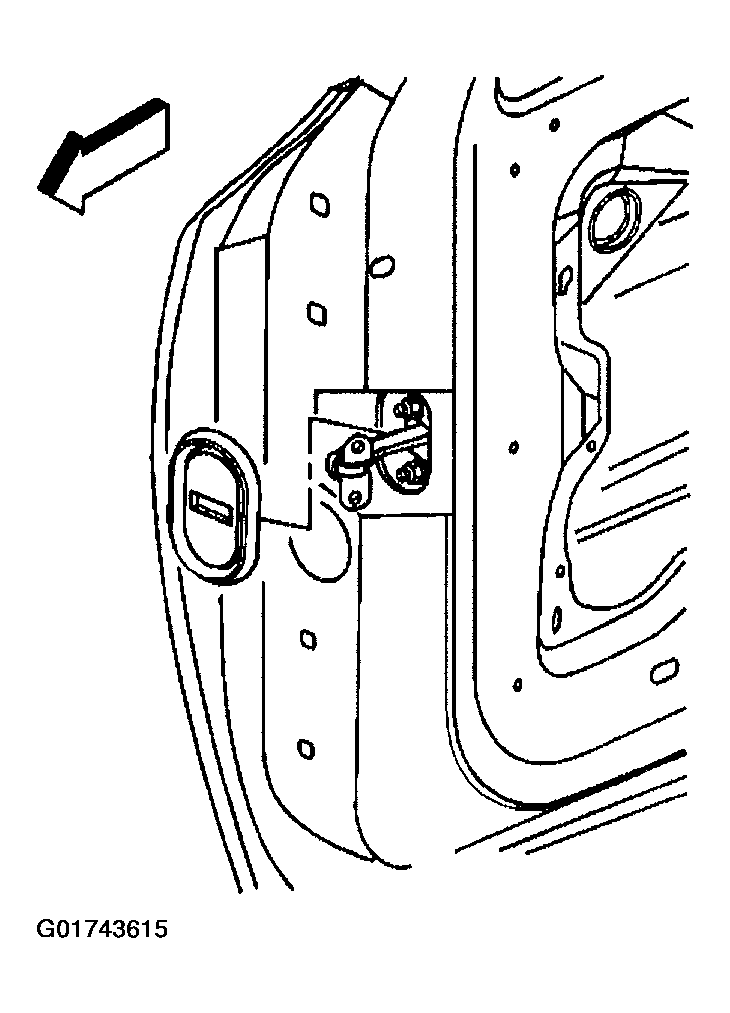

    7. Fig 2: Removing Close-Out Grommet
    G01743615Courtesy of GENERAL MOTORS CORP.
  7. Remove the check link to door fasteners.

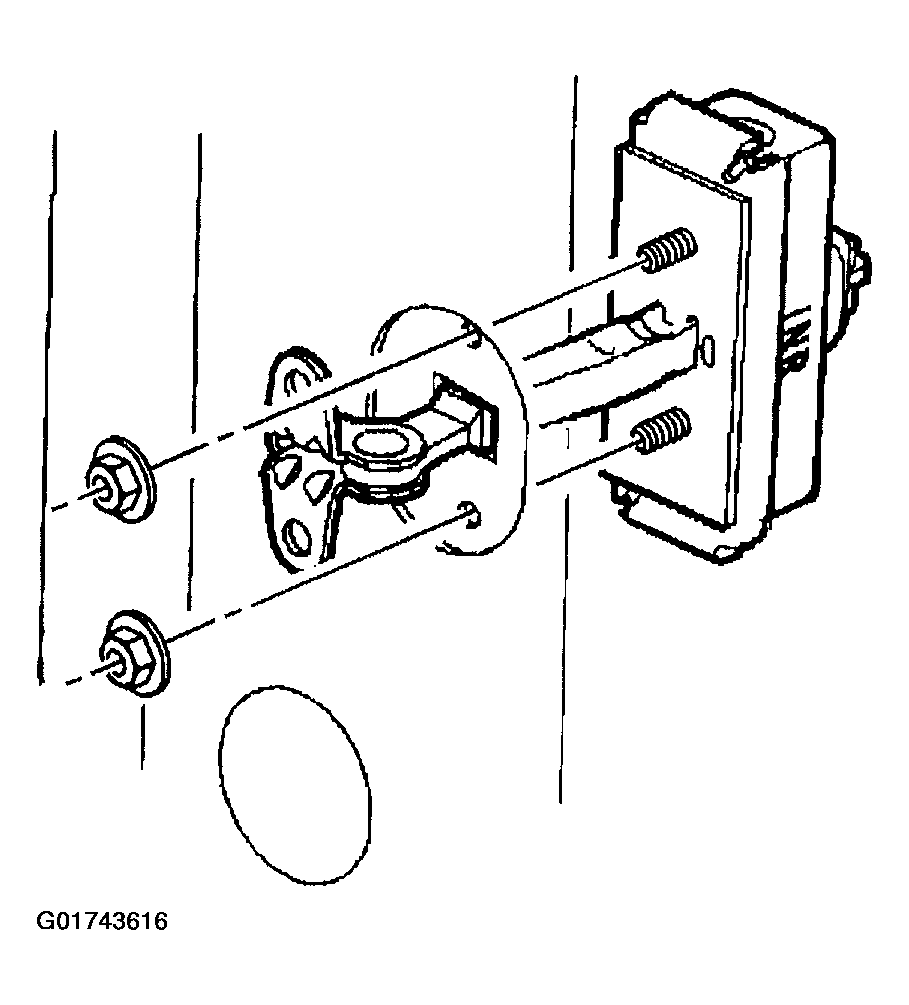

    8. Fig 3: Removing Door Check Link
    G01743616Courtesy of GENERAL MOTORS CORP.
  8. Remove the door check link through the inside of the door.
