Scan Tool Data List

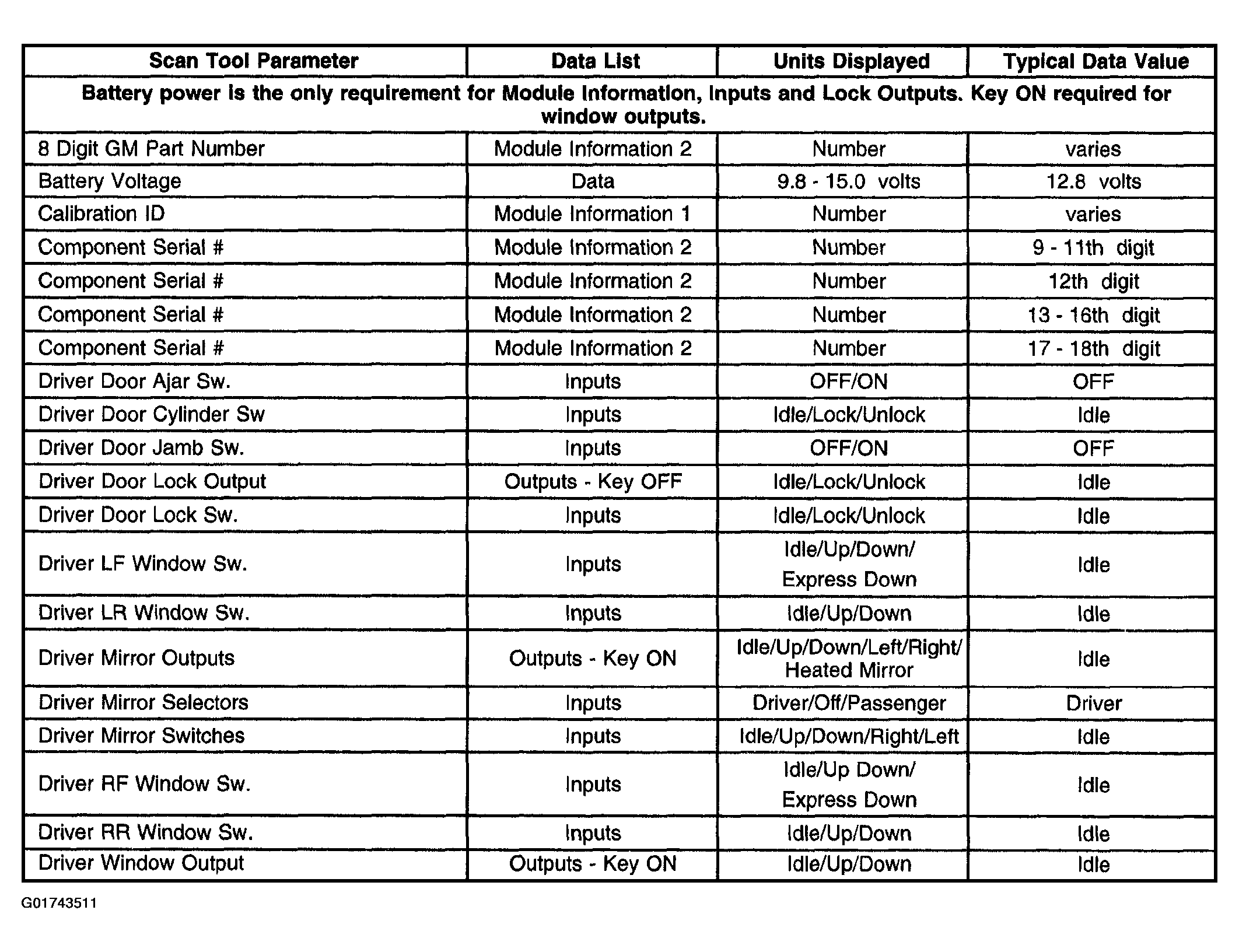

Fig 1: Driver Door Module (1 Of 2)
G01743511Courtesy of GENERAL MOTORS CORP.

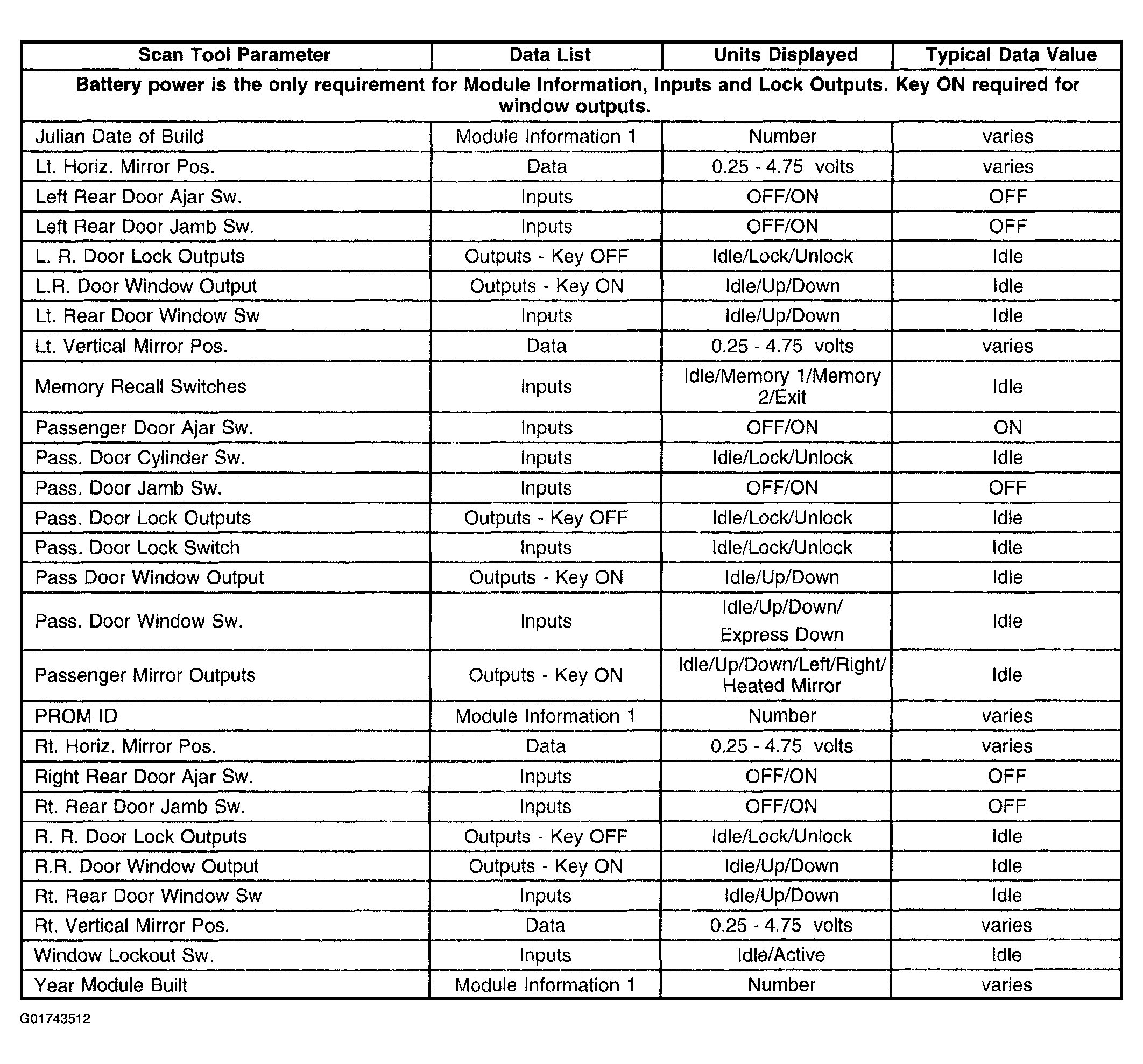

Fig 2: Driver Door Module (2 Of 2)
G01743512Courtesy of GENERAL MOTORS CORP.

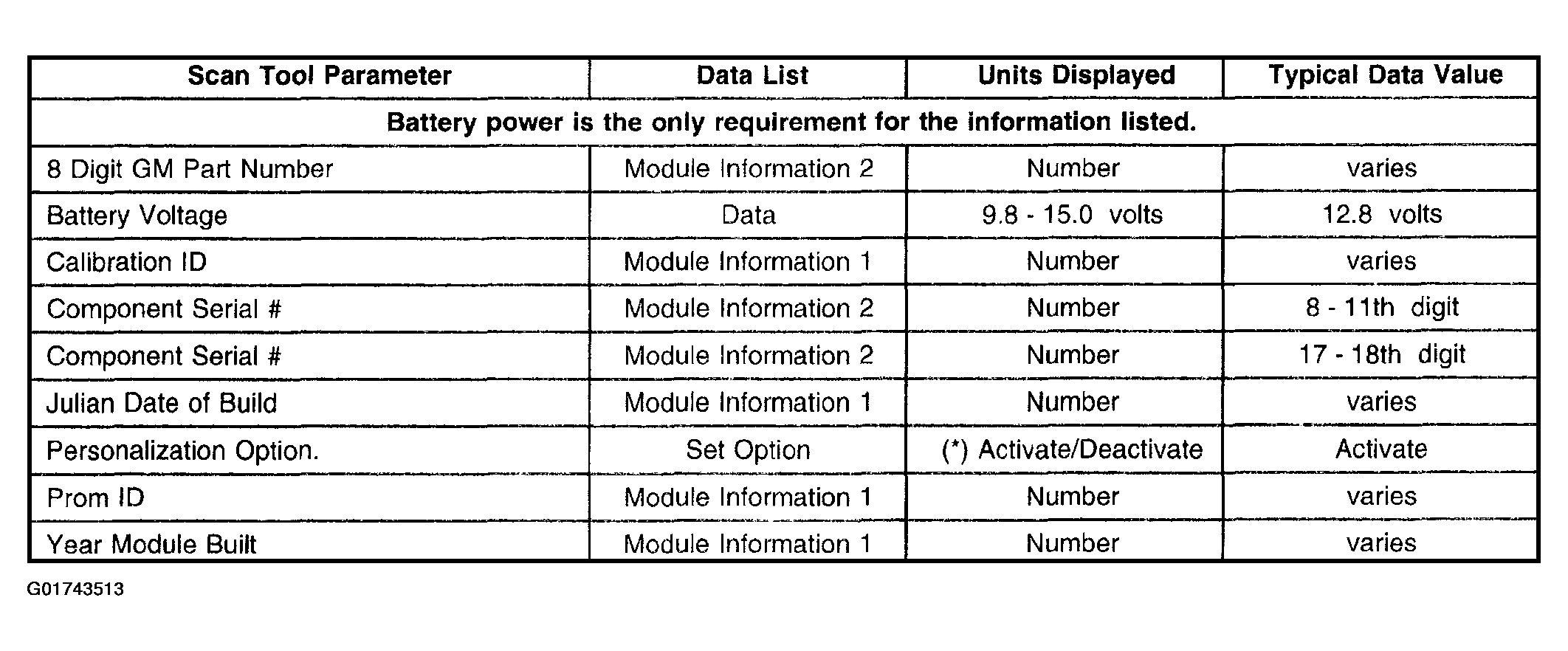

Fig 3: Dash Integration Module
G01743513Courtesy of GENERAL MOTORS CORP.
