Test Description

The numbers below refer to the step numbers on the diagnostic table.

1. 3

   This step determines if the DDM receives the lockout switch request from the Driver Door Switch Assembly (DDSA).
2. 4

   This step determines if the indicator is operating properly.

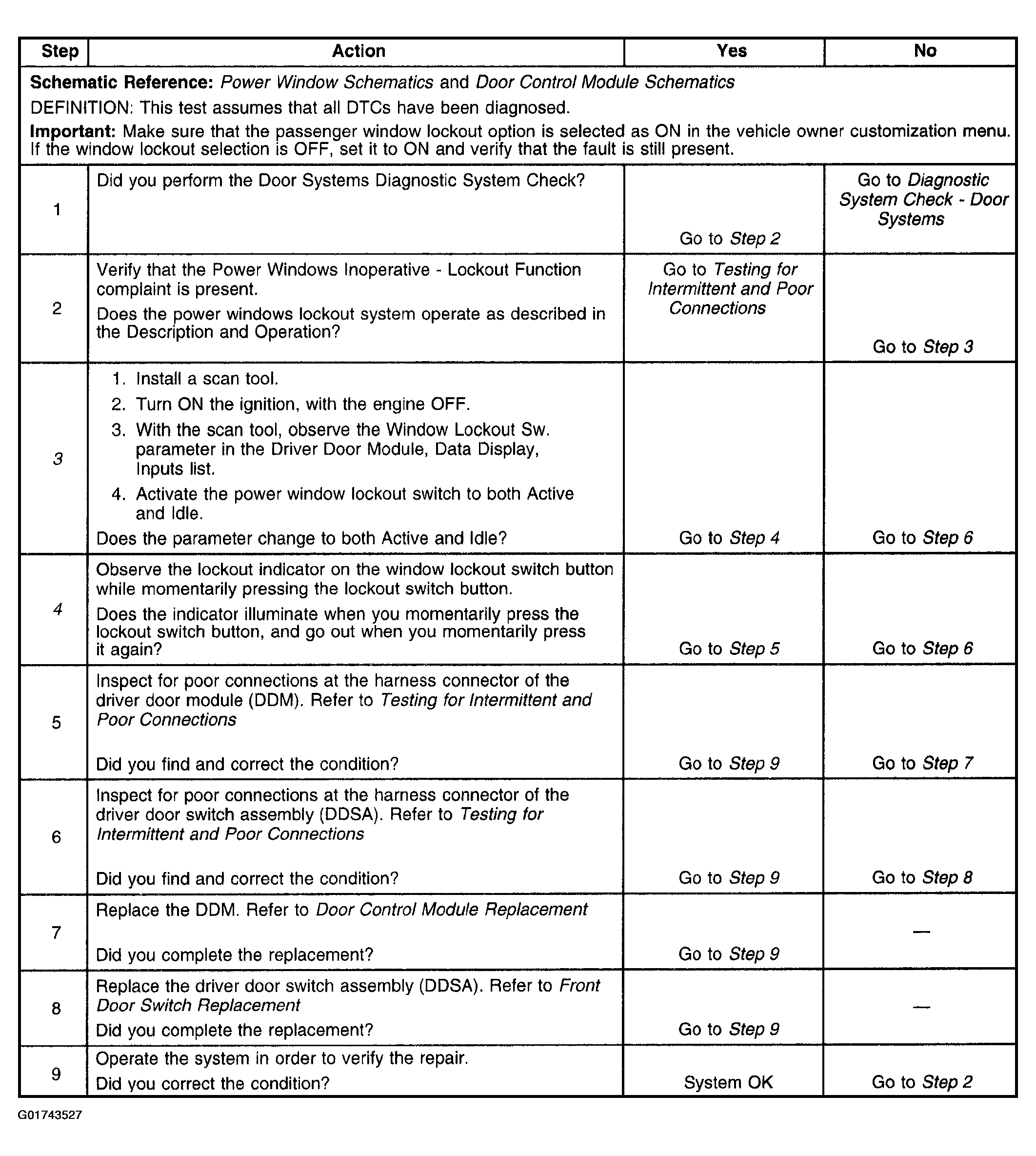

Fig 1: Power Windows Inoperative - Lockout Function

Courtesy of GENERAL MOTORS CORP.
