Scan Tool Output Controls

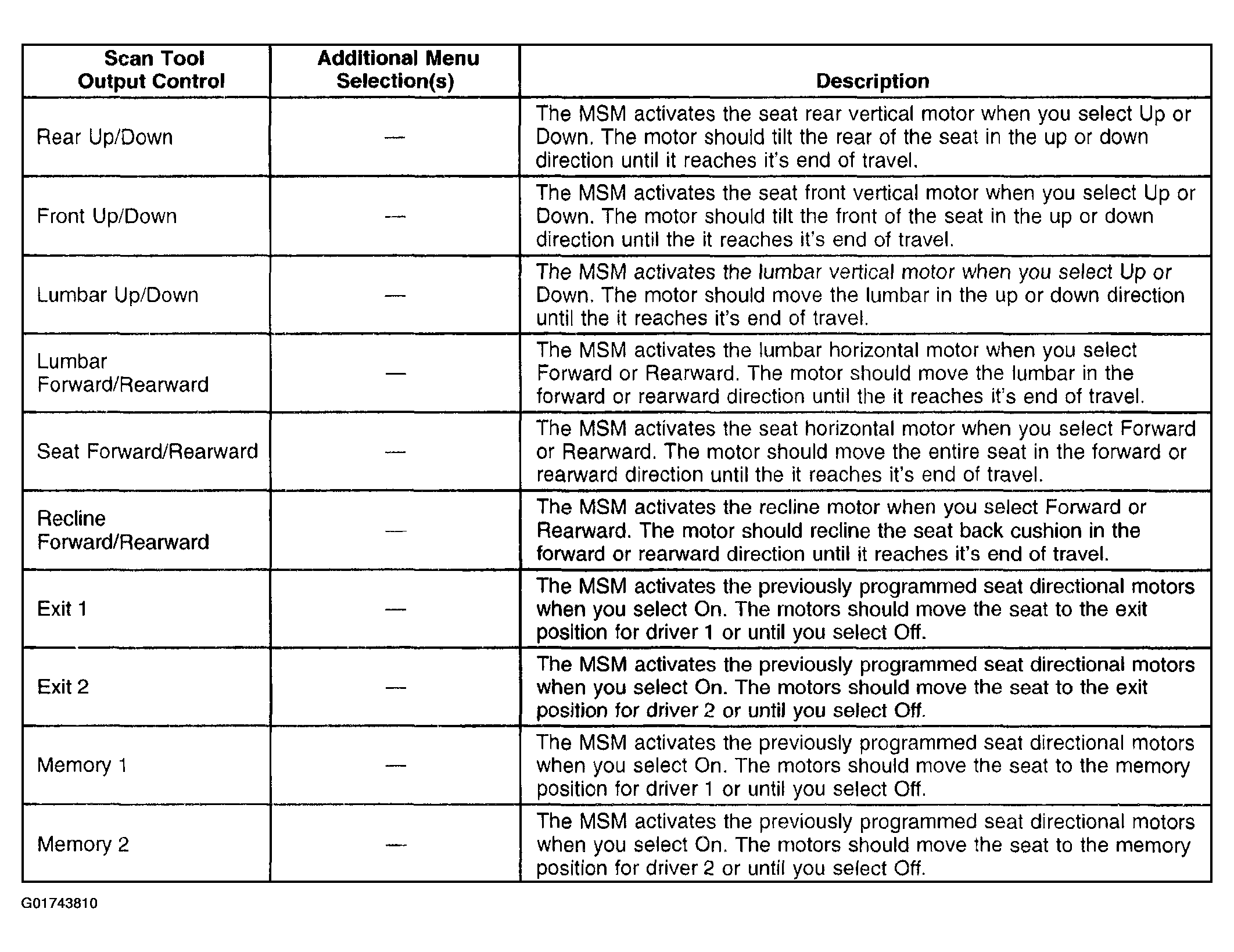

Fig 1: Memory Seat Module (MSM)

G01743810

Courtesy of GENERAL MOTORS CORP.

Fig 2: Rear Integration Module (RIM)

G01743811

Courtesy of GENERAL MOTORS CORP.
