Power Seat Systems Connector End Views

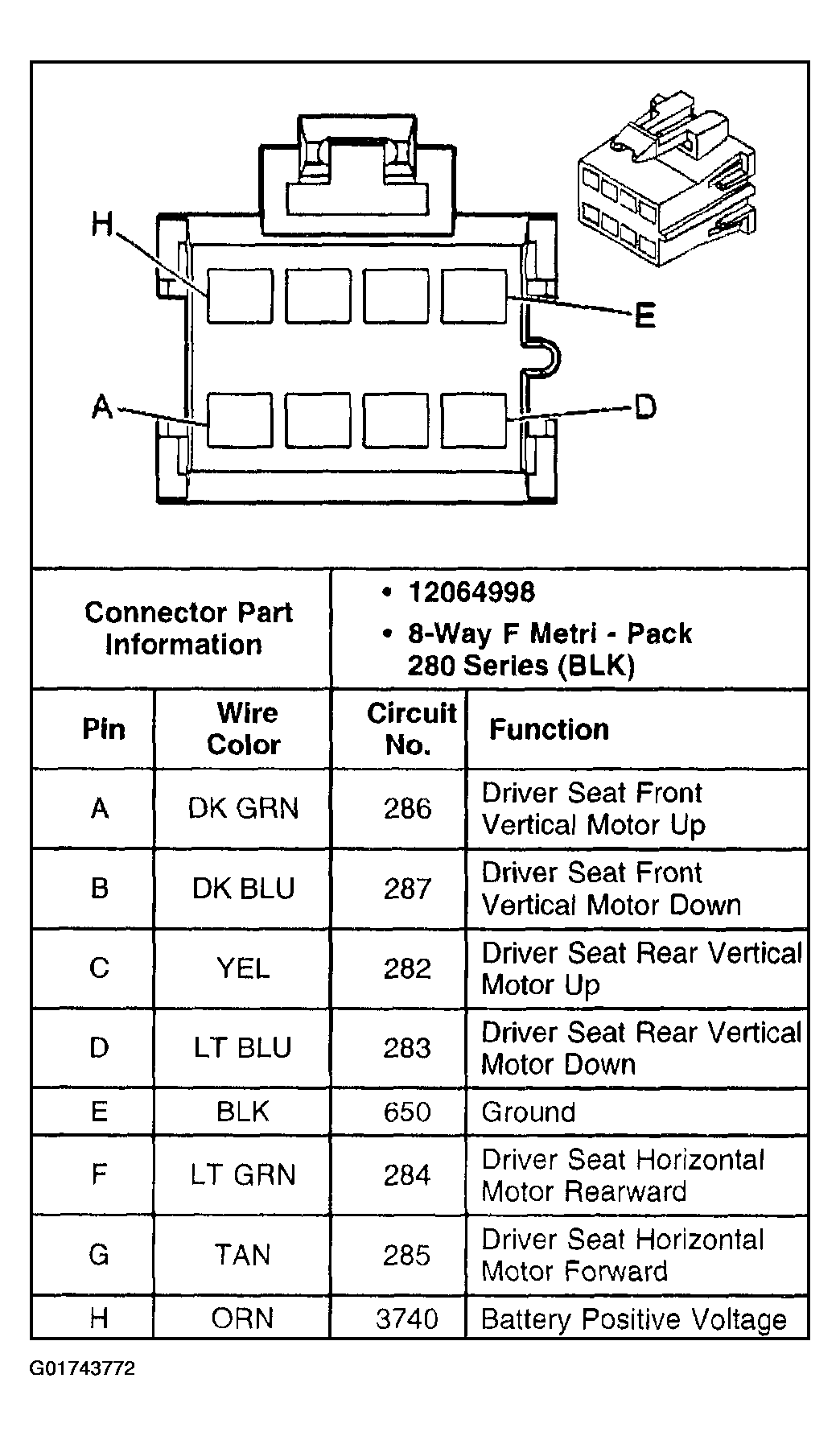

Fig 1: Seat Adjuster Switch - Driver (AG1)

G01743772

Courtesy of GENERAL MOTORS CORP.

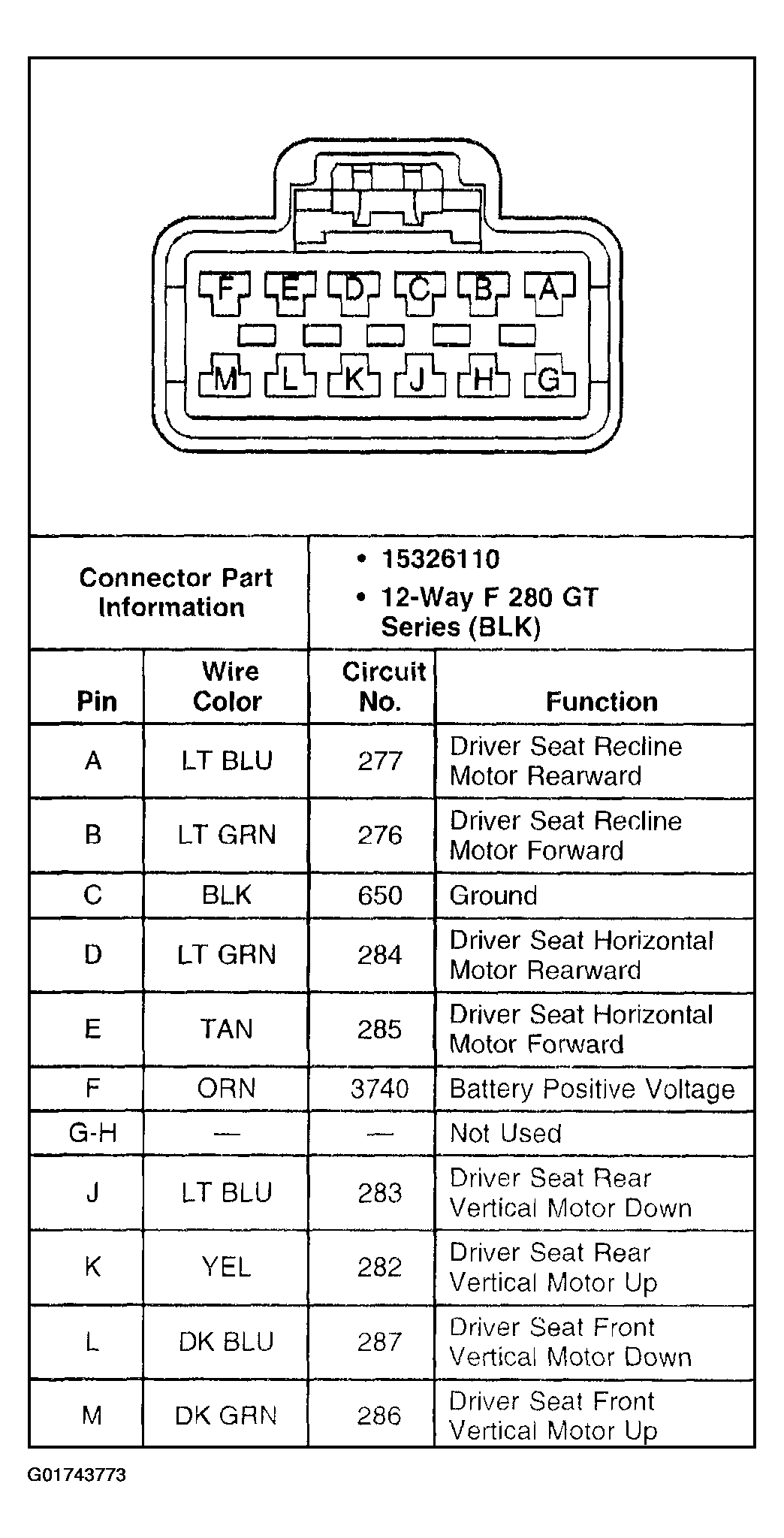

Fig 2: Seat Adjuster Switch - Driver (AG1 & A80)

G01743773

Courtesy of GENERAL MOTORS CORP.

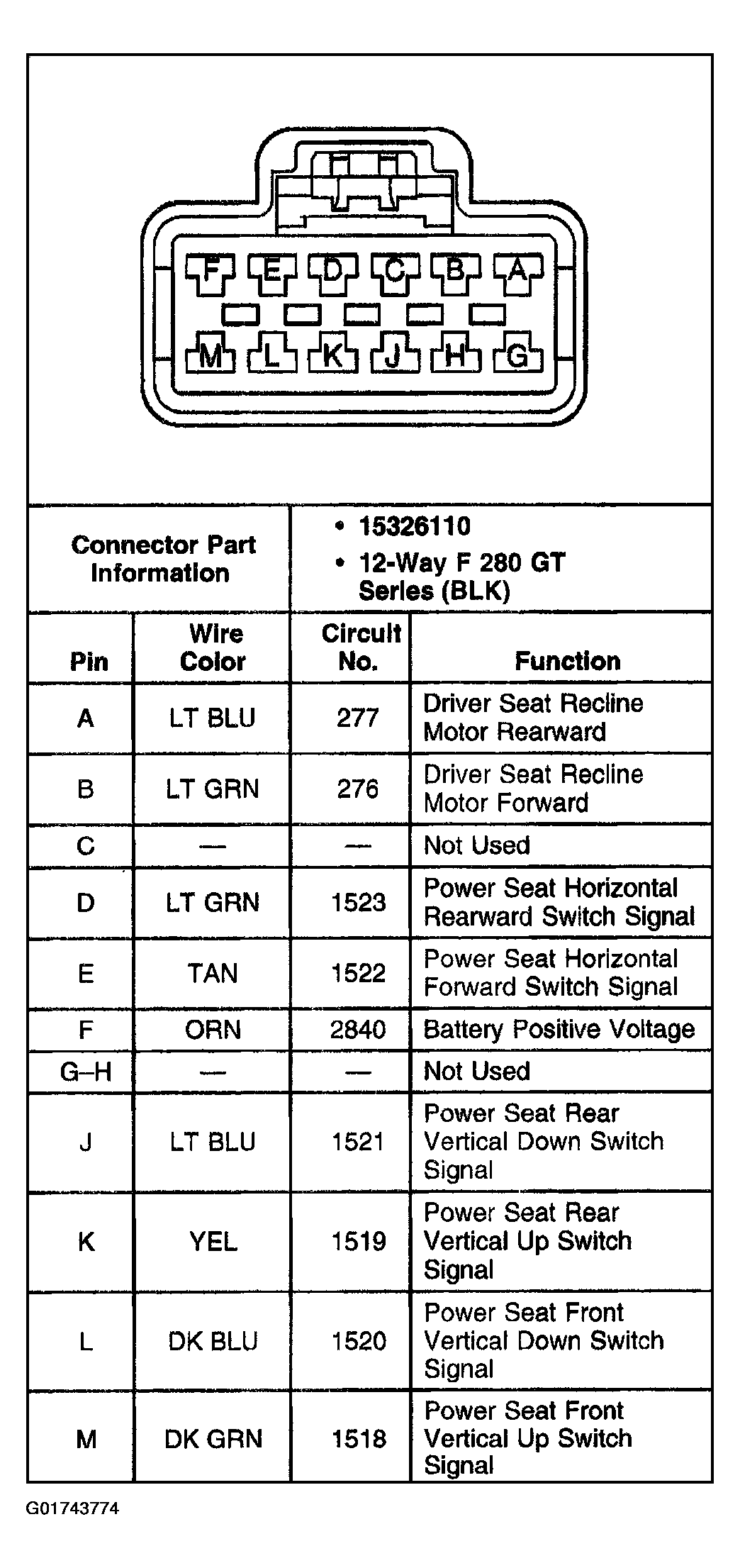

Fig 3: Seat Adjuster Switch - Driver (AG1, A80 & A45)

G01743774

Courtesy of GENERAL MOTORS CORP.

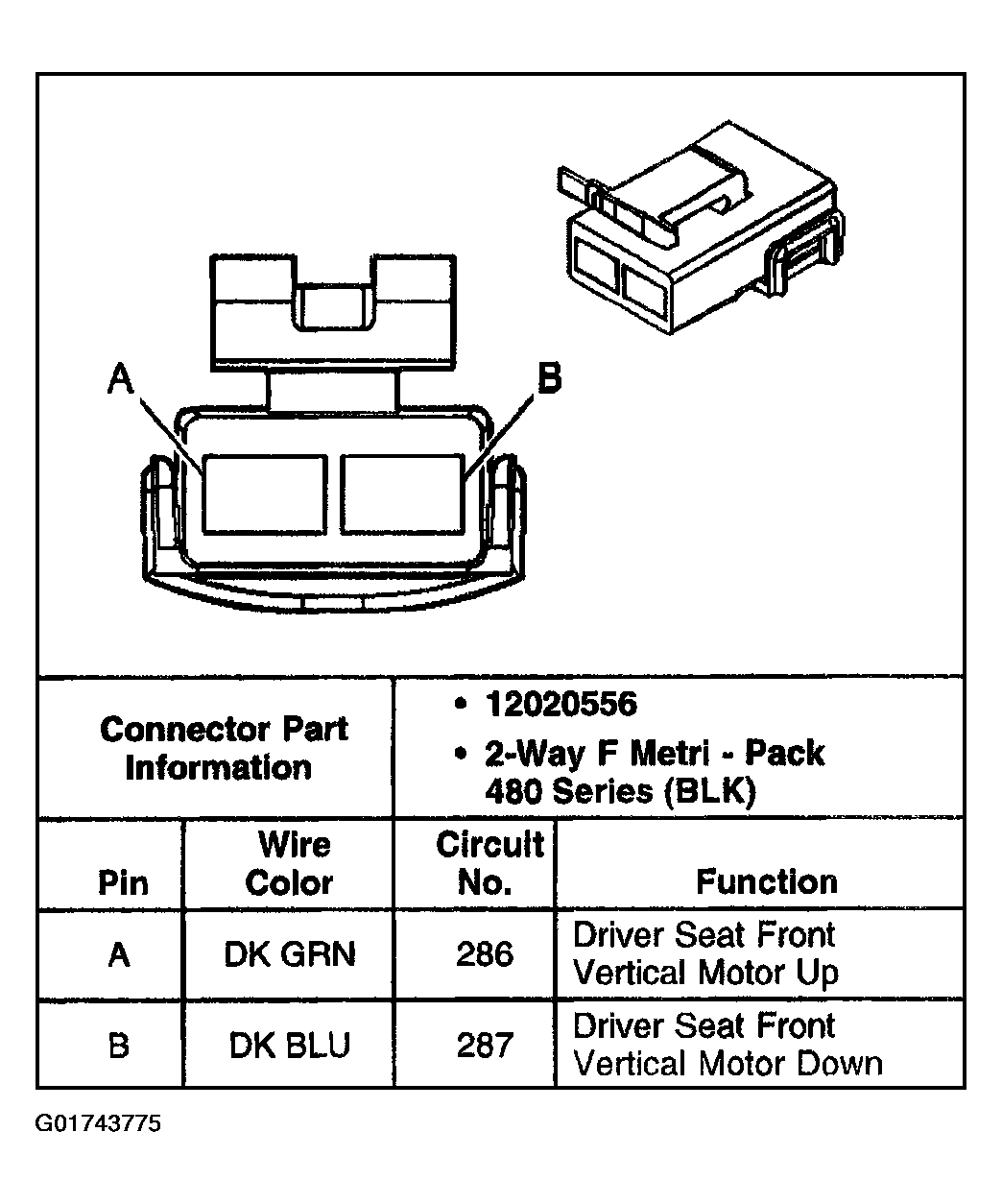

Fig 4: Seat Front Vertical Motor - Driver

G01743775

Courtesy of GENERAL MOTORS CORP.

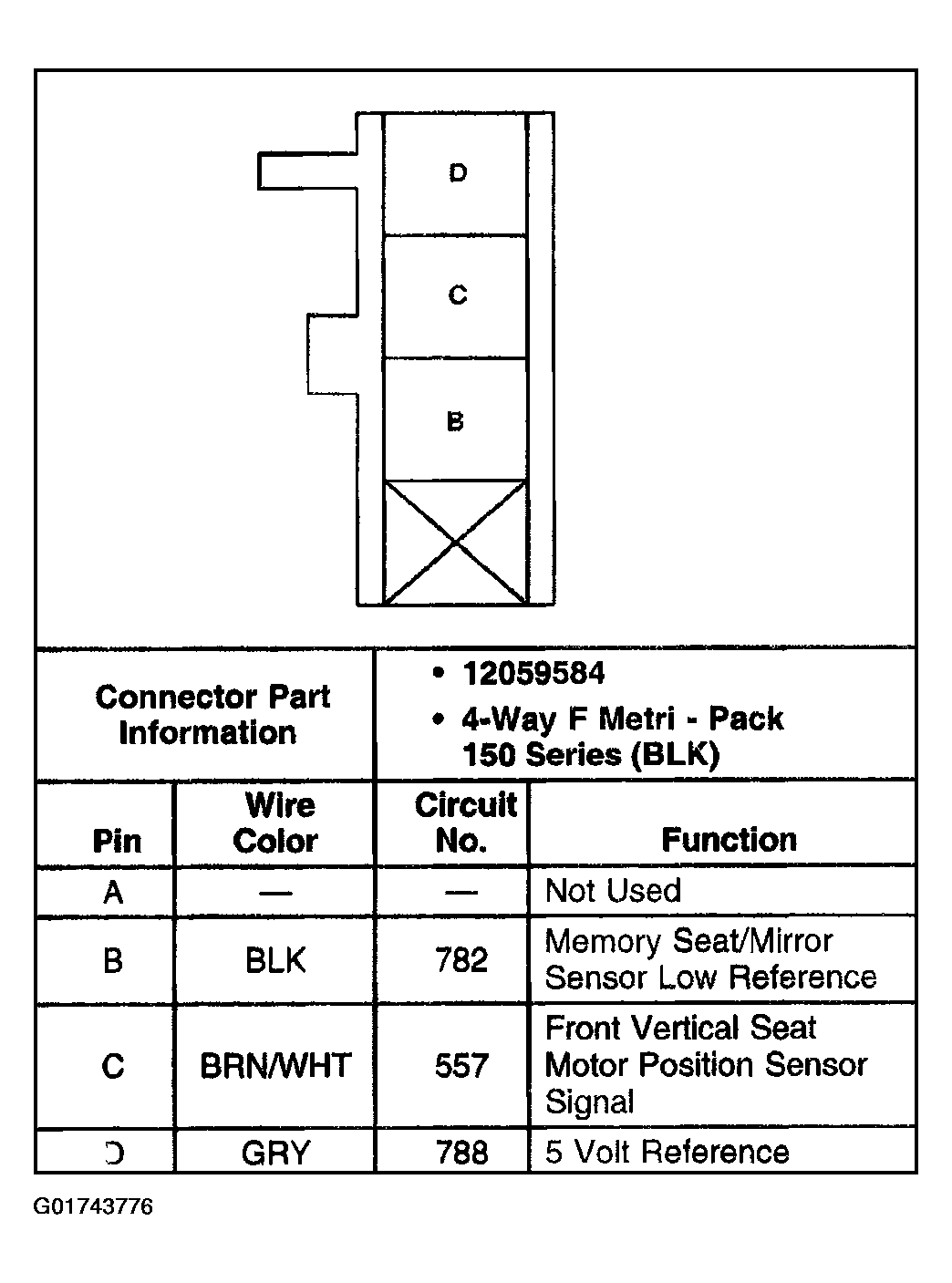

Fig 5: Seat Front Vertical Position Sensor - Driver (W/A45)

G01743776

Courtesy of GENERAL MOTORS CORP.

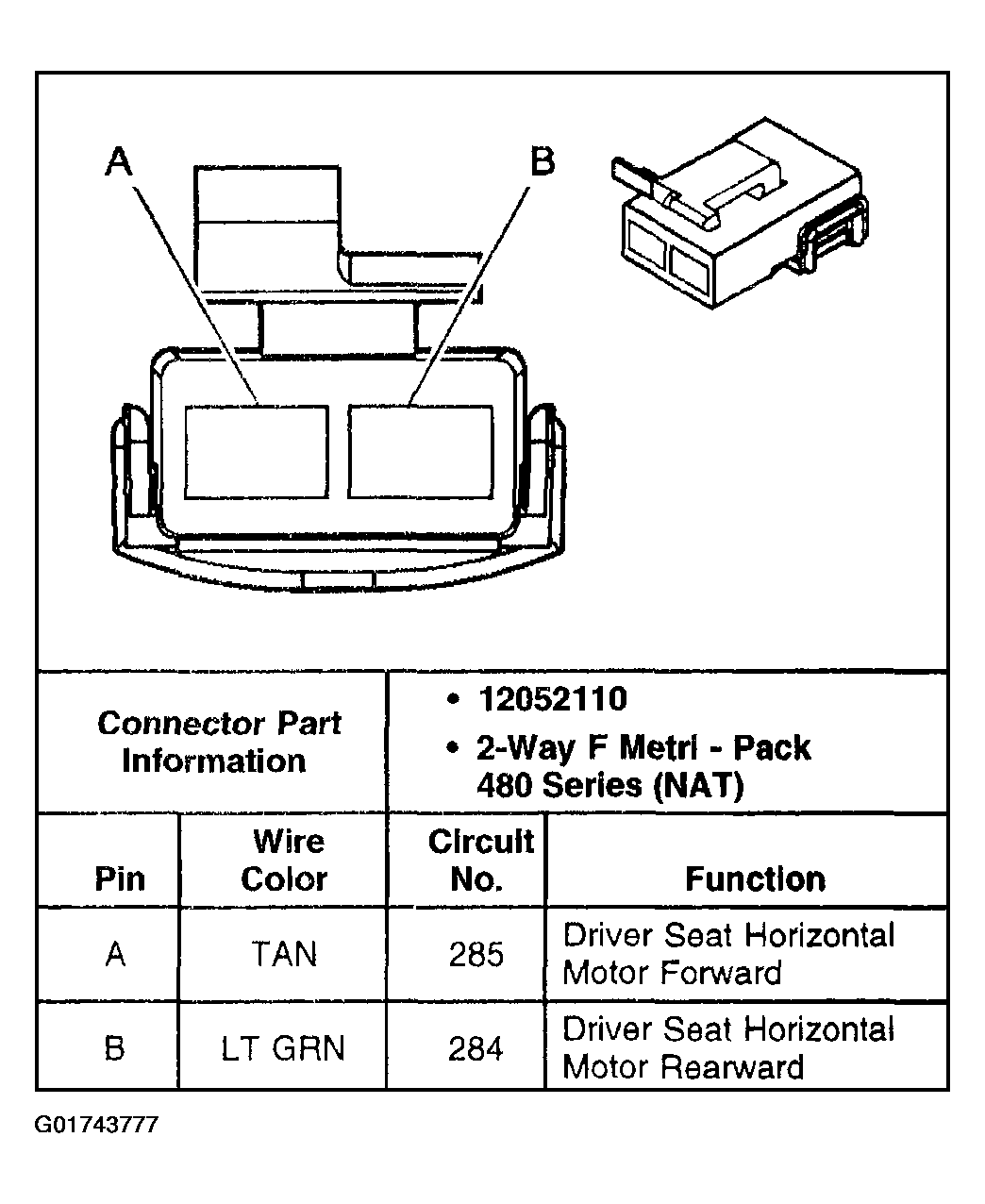

Fig 6: Front Seat Horizontal Motor - Driver

G01743777

Courtesy of GENERAL MOTORS CORP.

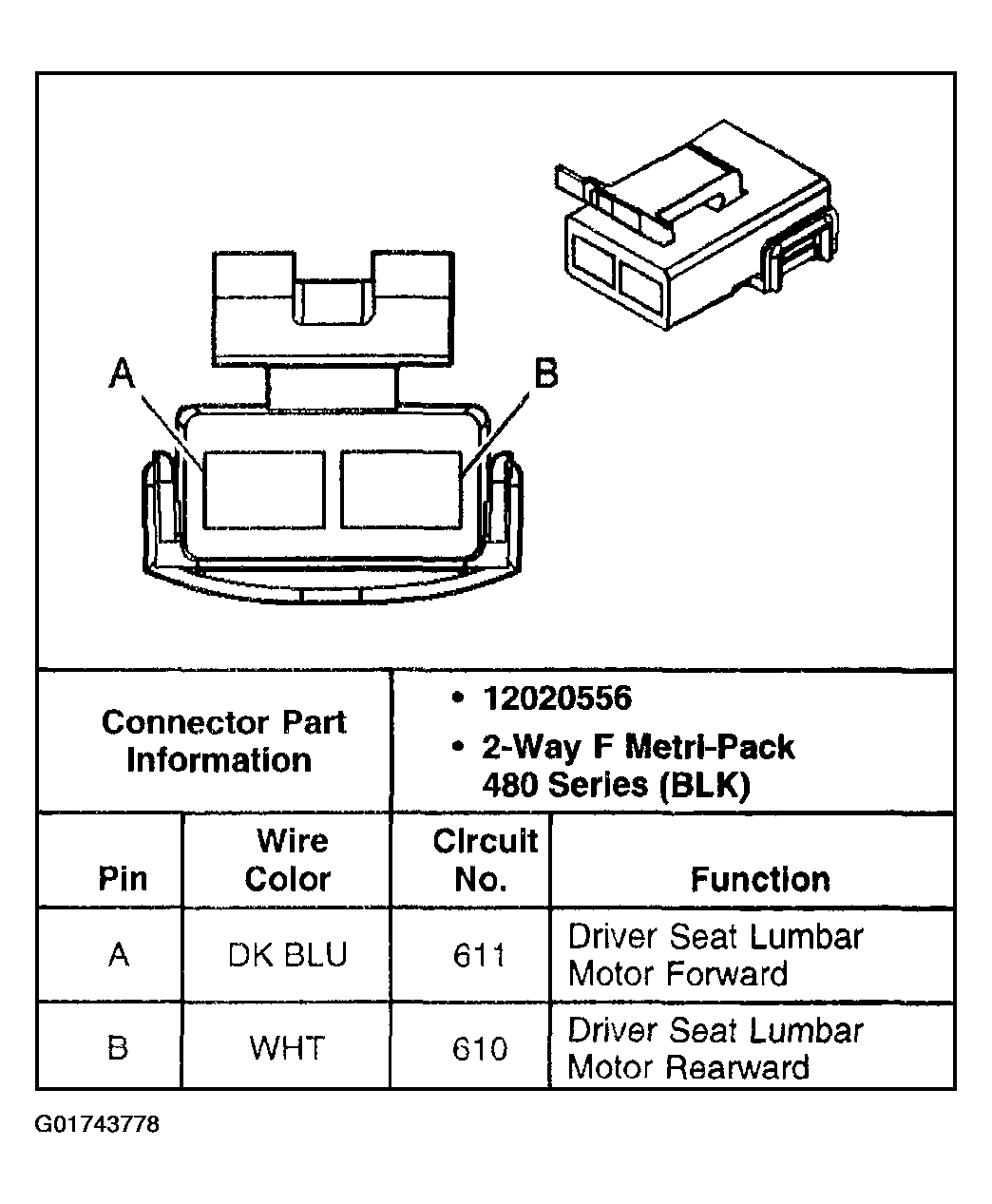

Fig 7: Seat Lumbar Horizontal Motor - Driver

G01743778

Courtesy of GENERAL MOTORS CORP.

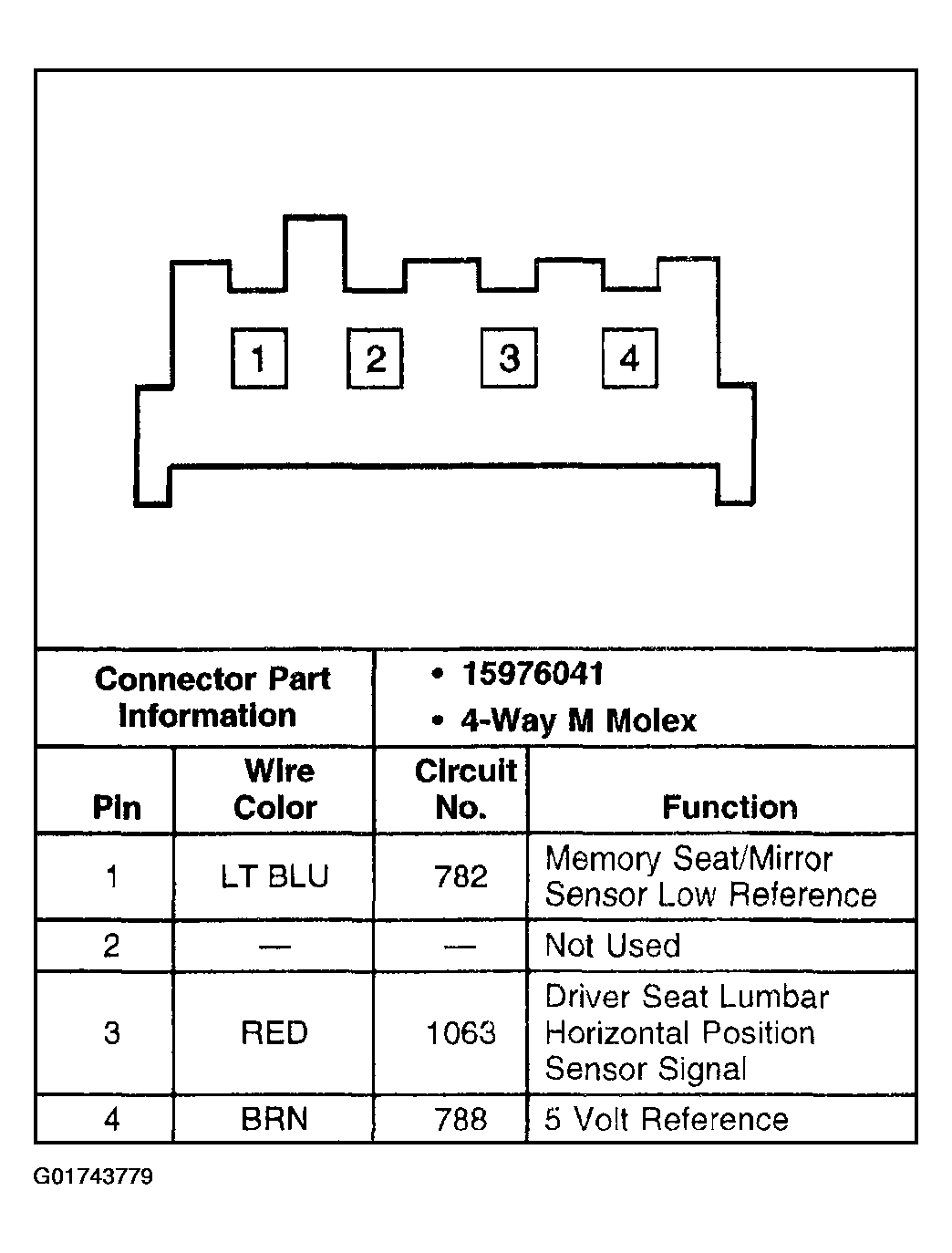

Fig 8: Seat Lumbar Horizontal Position Sensor - Driver

G01743779

Courtesy of GENERAL MOTORS CORP.

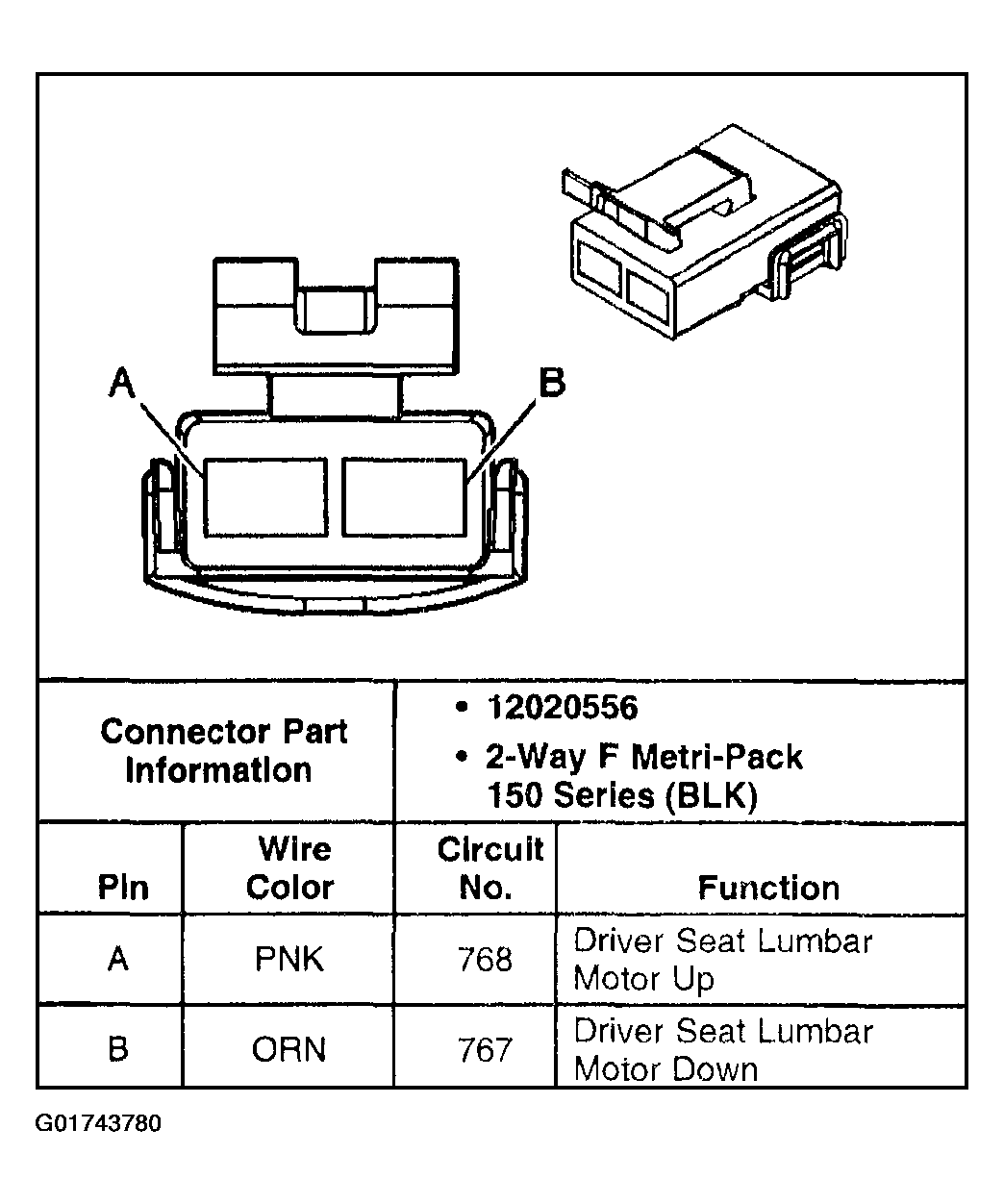

Fig 9: Seat Lumbar Vertical Motor - Driver

G01743780

Courtesy of GENERAL MOTORS CORP.

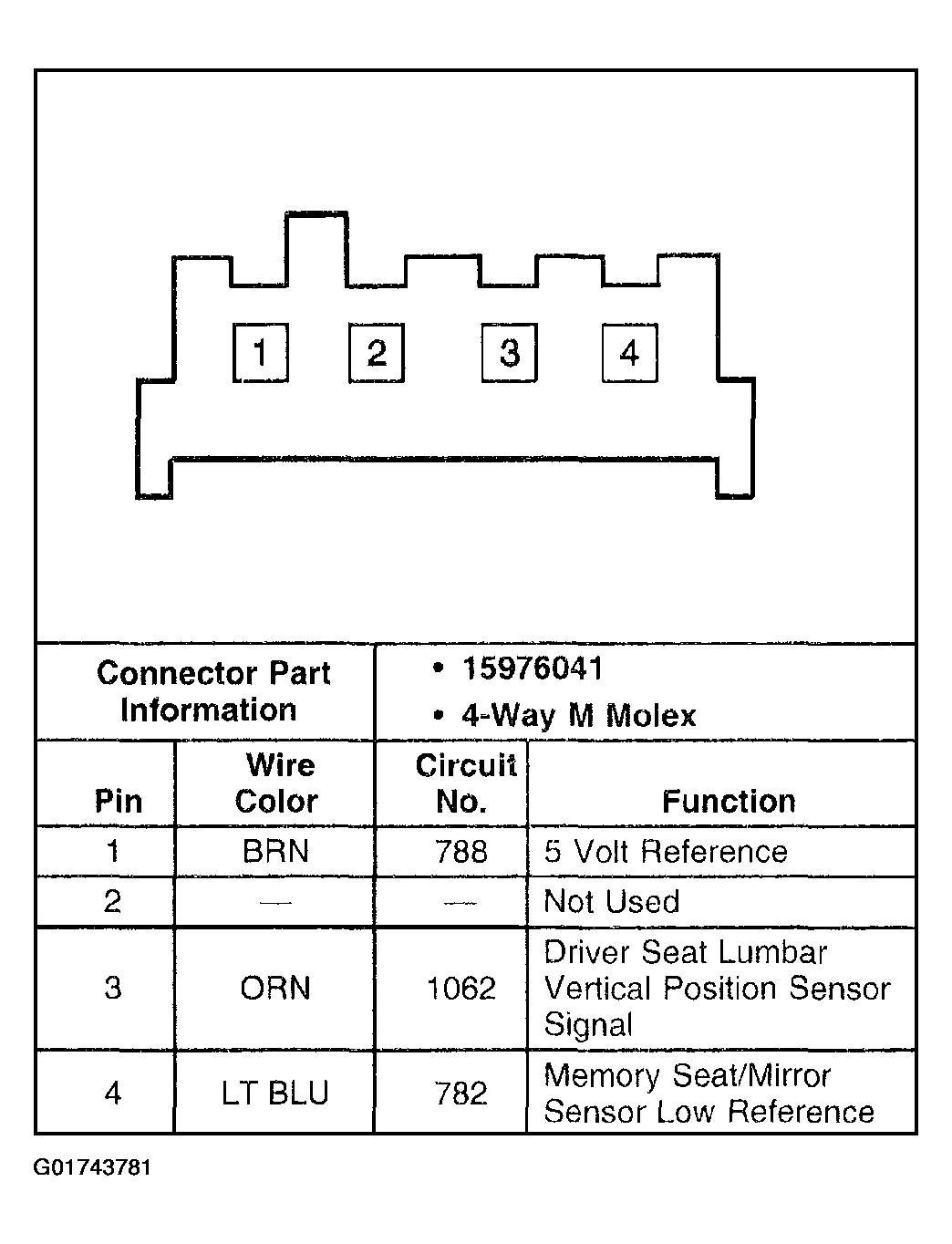

Fig 10: Seat Lumbar Vertical Position Sensor - Driver

G01743781

Courtesy of GENERAL MOTORS CORP.

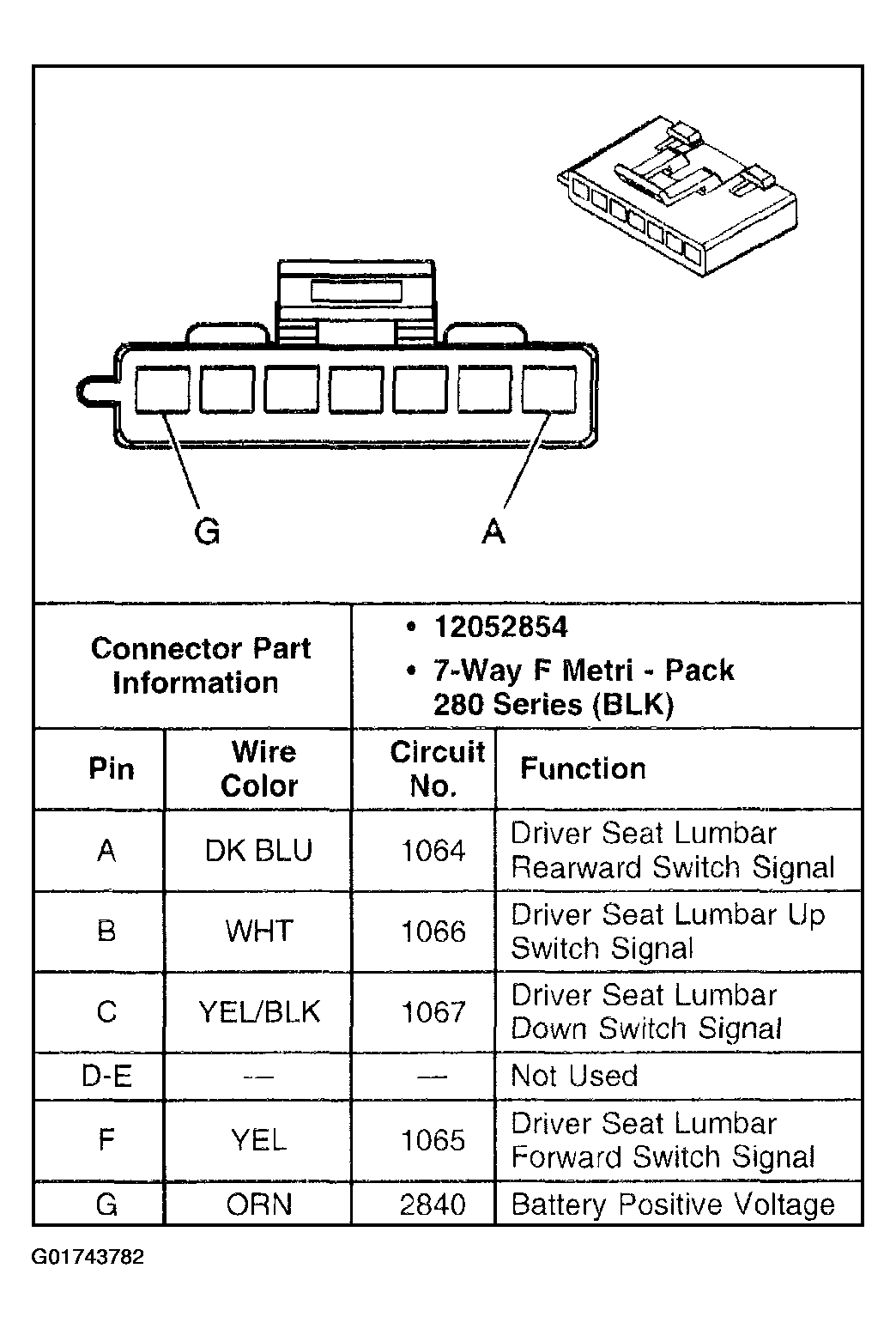

Fig 11: Seat Lumbar Switch - Driver (A45 & AL9)

G01743782

Courtesy of GENERAL MOTORS CORP.

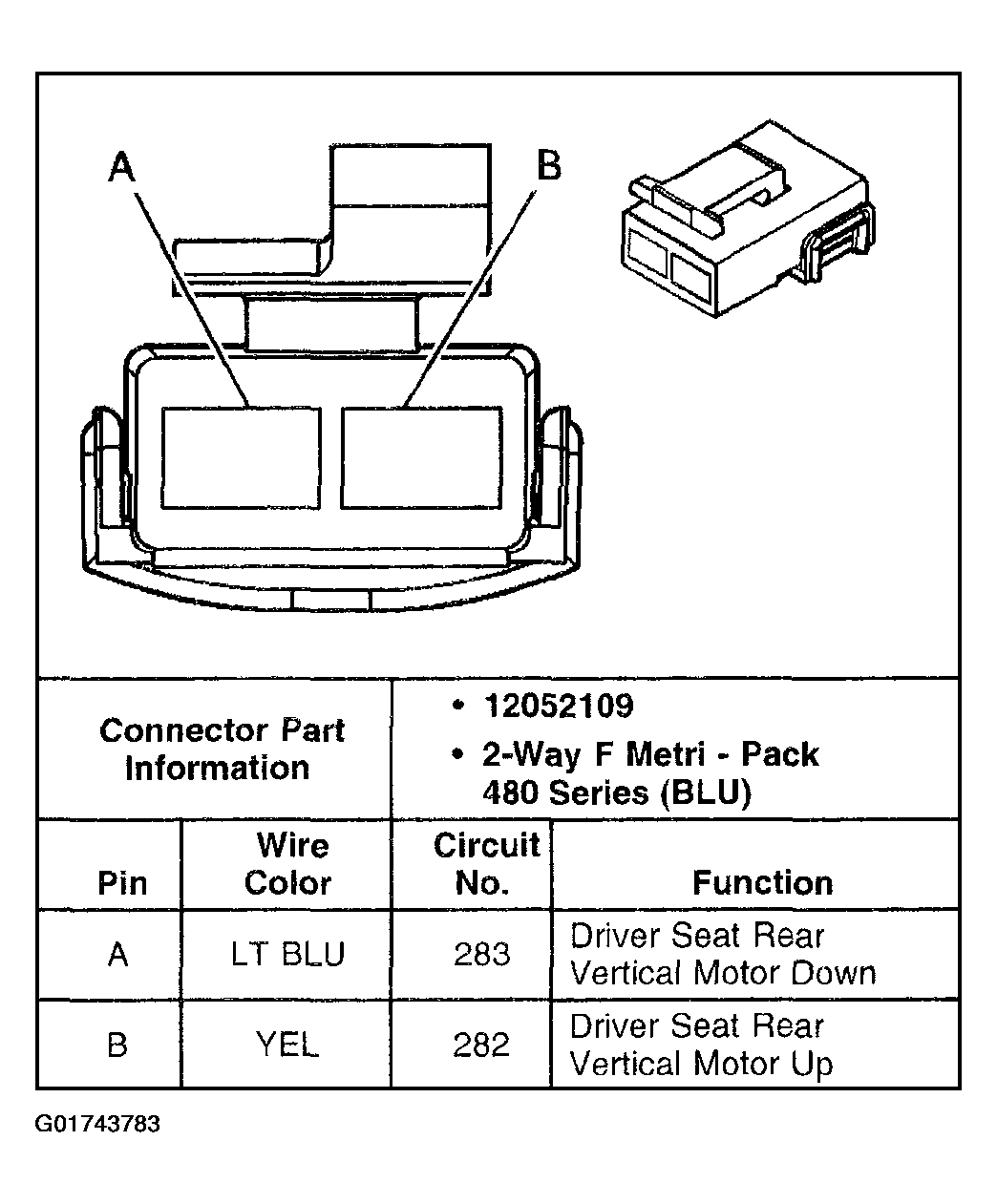

Fig 12: Seat Rear Vertical Motor - Driver

G01743783

Courtesy of GENERAL MOTORS CORP.

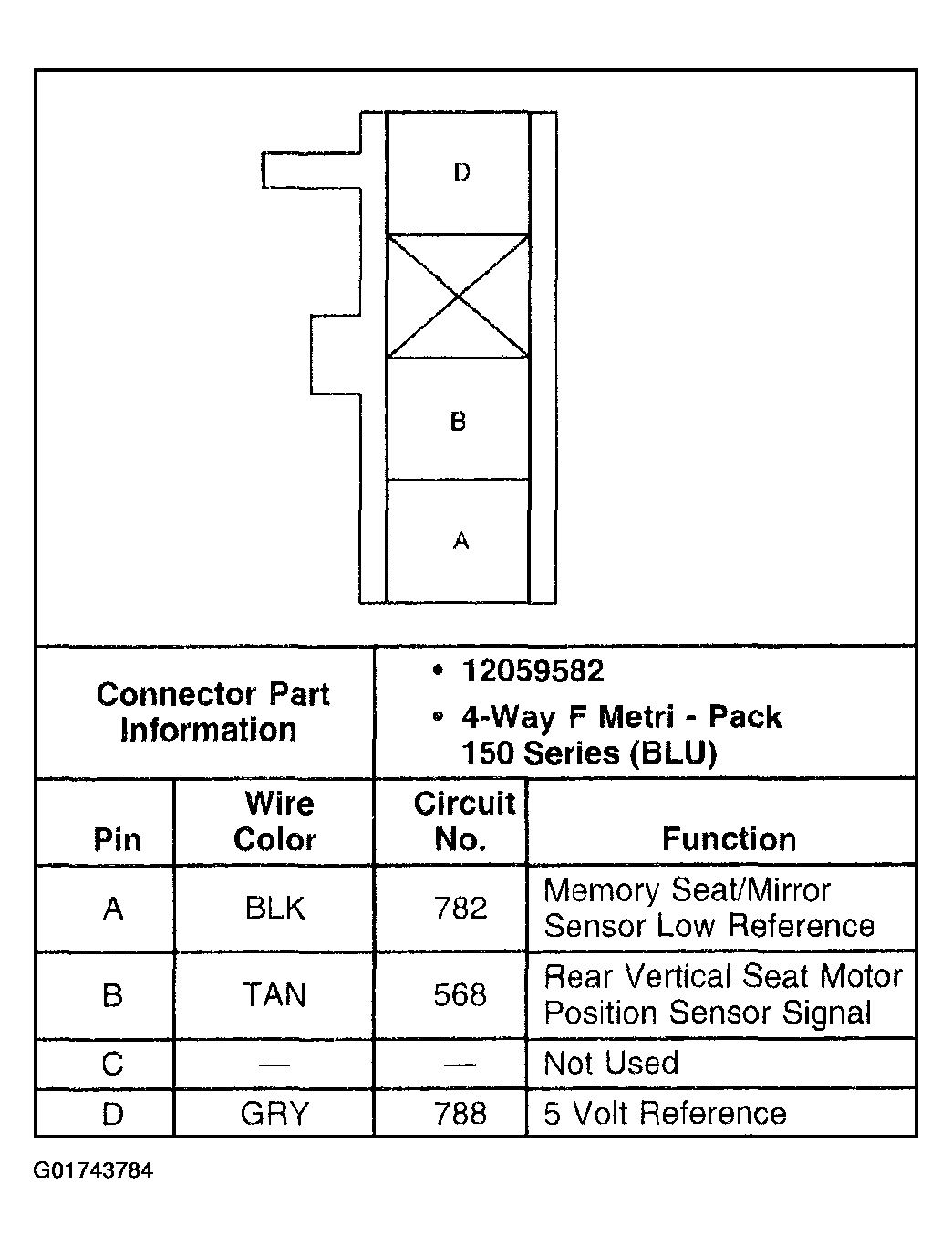

Fig 13: Seat Rear Vertical Position Sensor - Driver (W/A45)

G01743784

Courtesy of GENERAL MOTORS CORP.

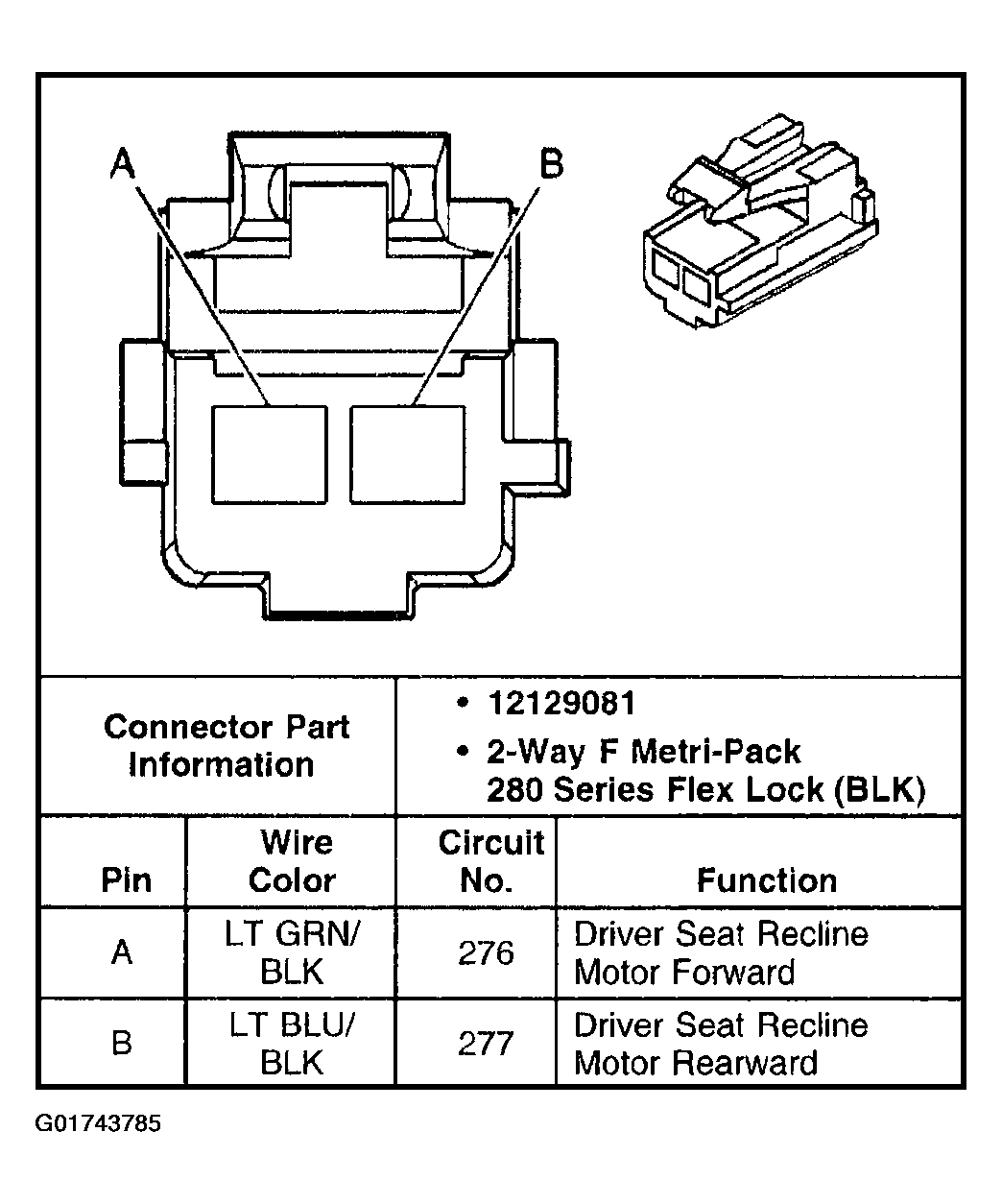

Fig 14: Seat Recline Motor - Driver (A45)

G01743785

Courtesy of GENERAL MOTORS CORP.

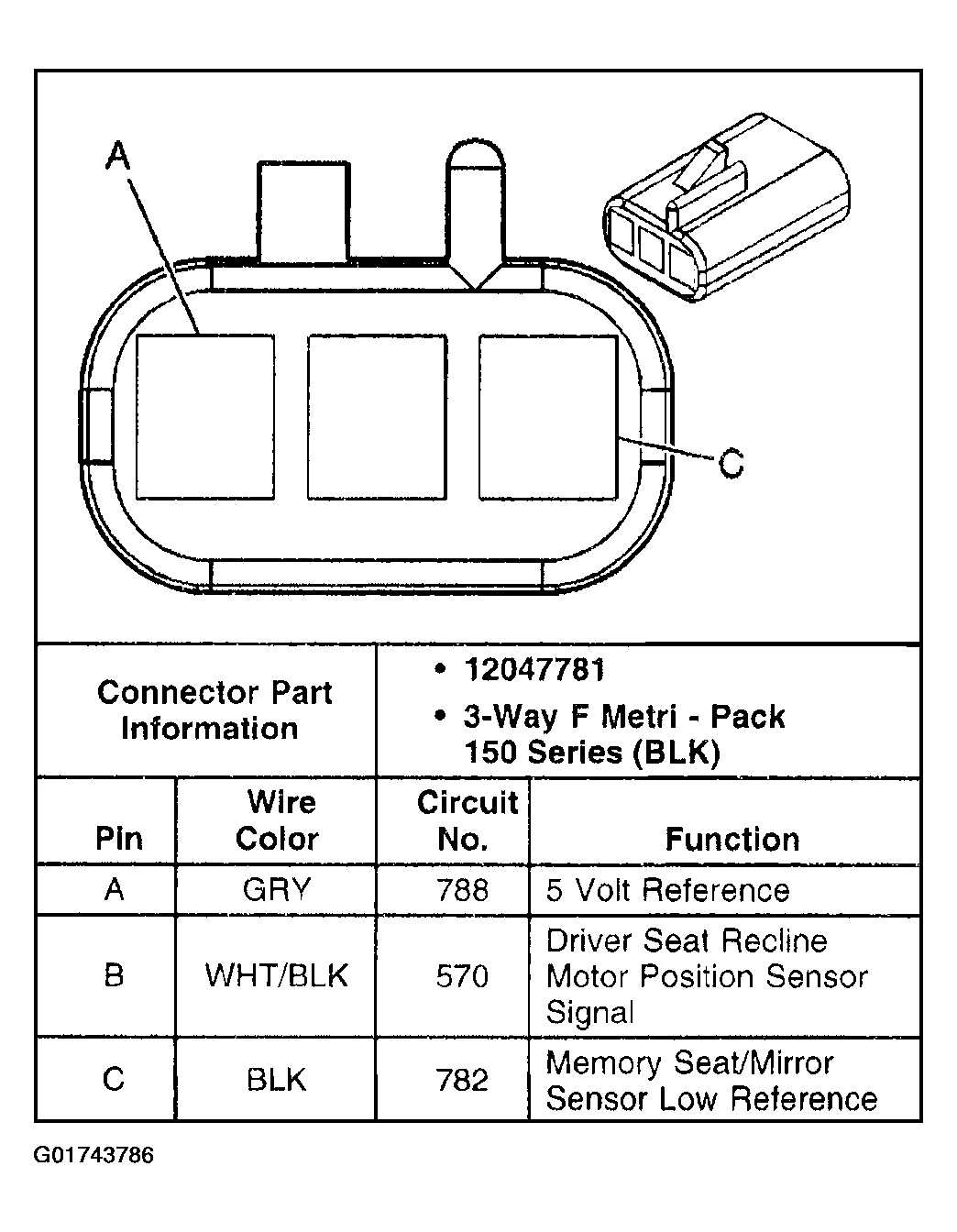

Fig 15: Seat Recline Position Sensor - Driver (A45)

G01743786

Courtesy of GENERAL MOTORS CORP.

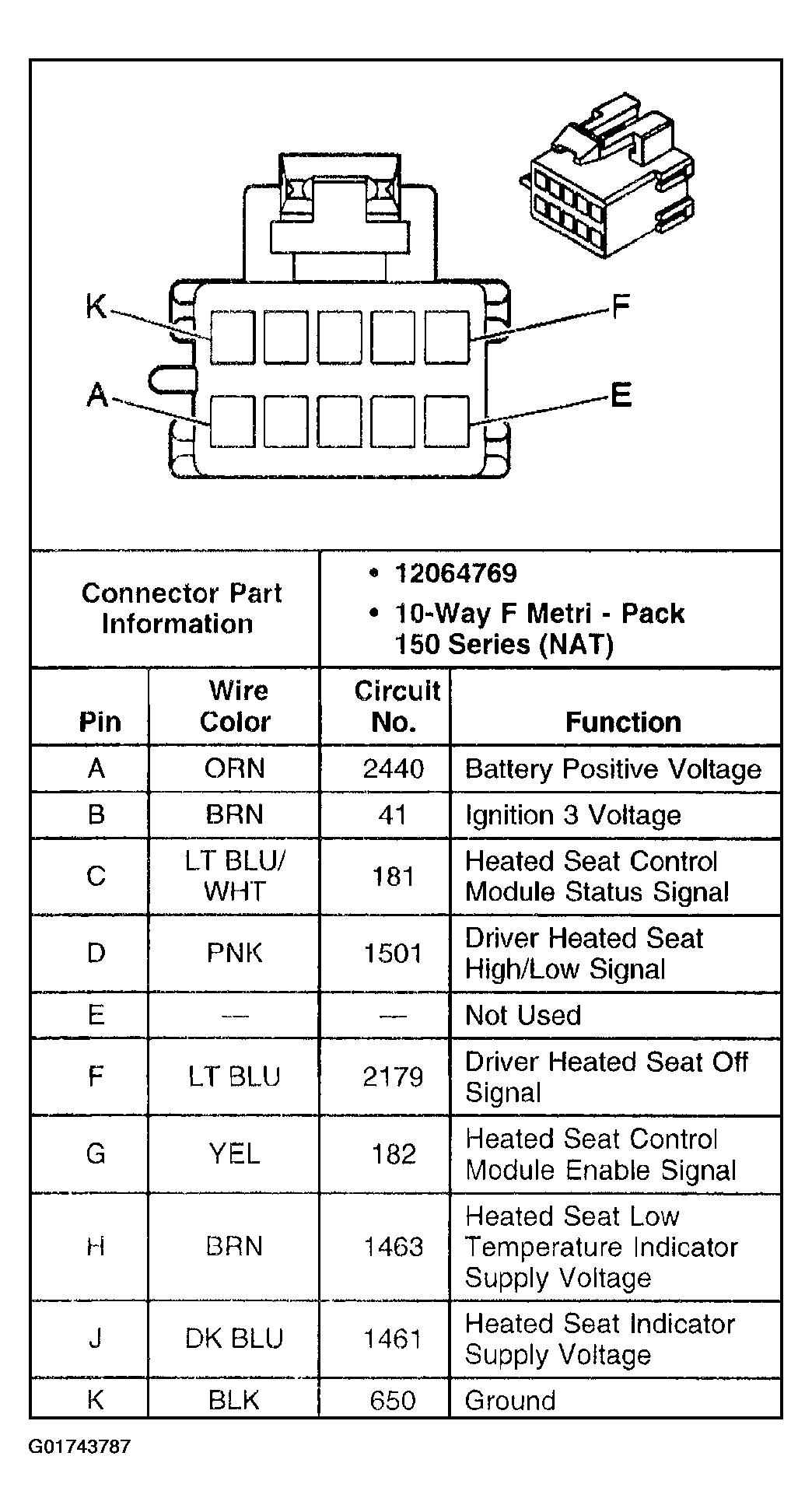

Fig 16: Heated Seat Module - Driver (C1) (AG1, A80 & KA1)

G01743787

Courtesy of GENERAL MOTORS CORP.

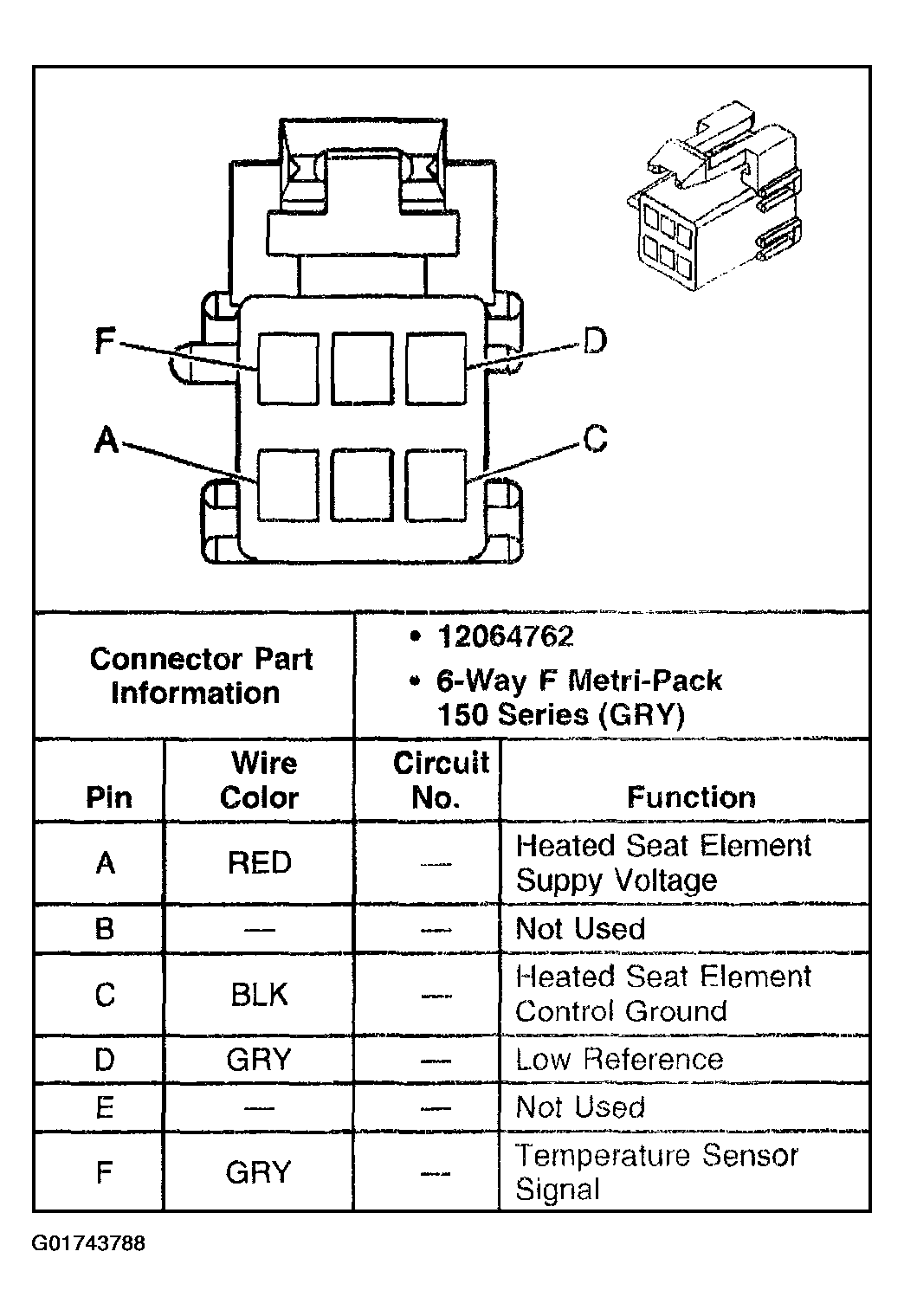

Fig 17: Heated Seat Module - Driver (C2) (W/AG1, A80 & KA1)

G01743788

Courtesy of GENERAL MOTORS CORP.

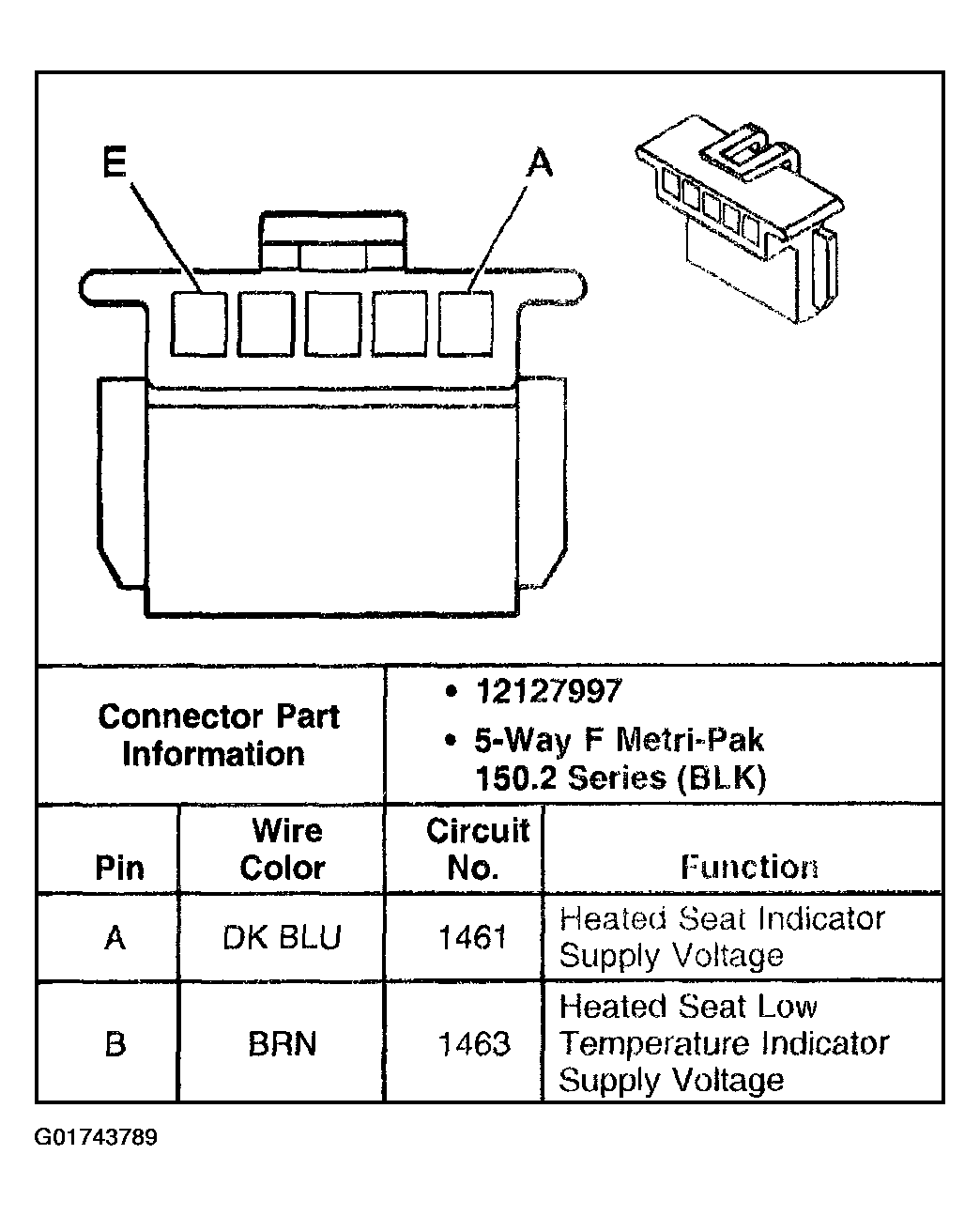

Fig 18: Heated Seat Switch - Driver (1 Of 2)

G01743789

Courtesy of GENERAL MOTORS CORP.

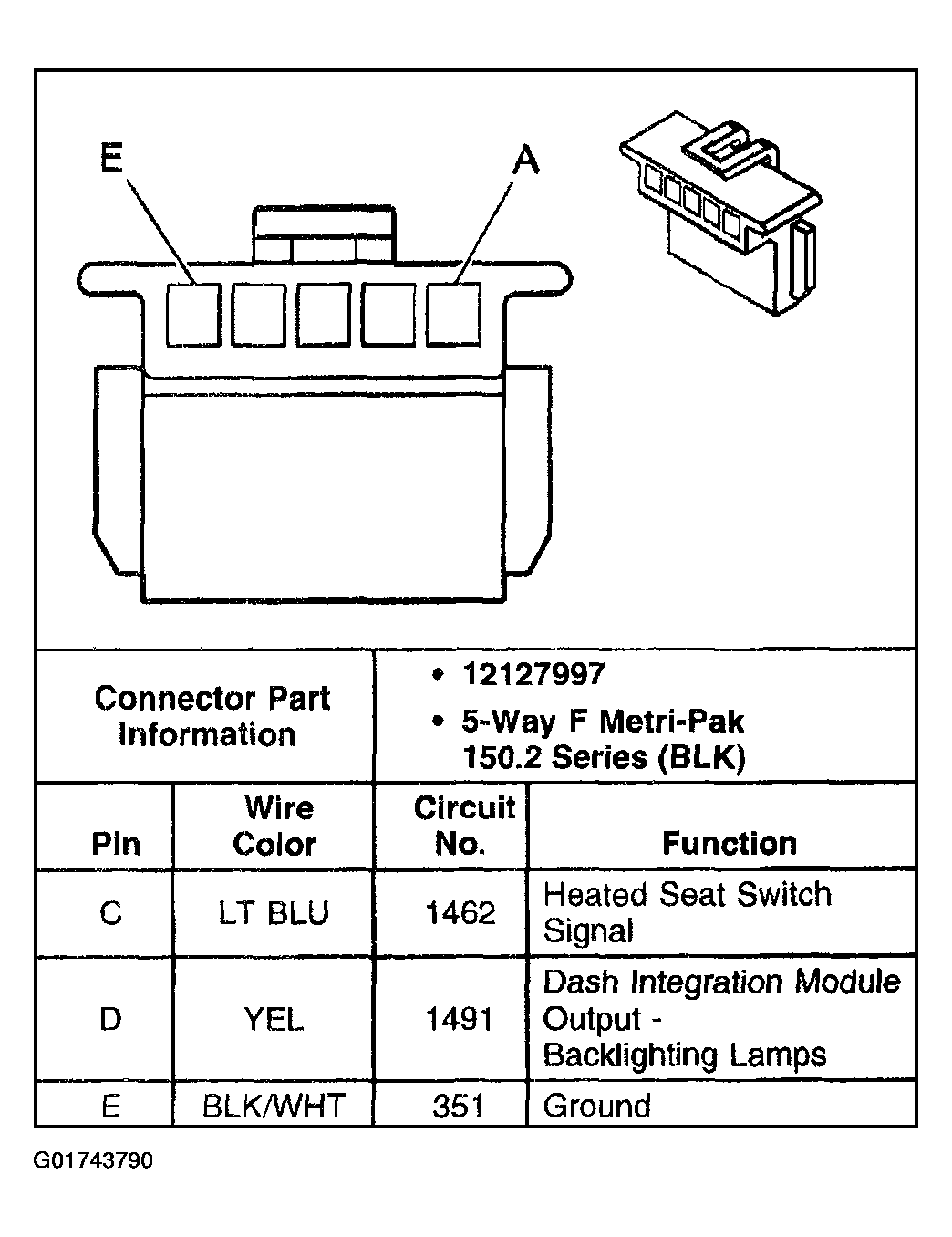

Fig 19: Heated Seat Switch - Driver (2 Of 2)

G01743790

Courtesy of GENERAL MOTORS CORP.

Fig 20: Memory/Personalization Function Switch

G01743791

Courtesy of GENERAL MOTORS CORP.

Fig 21: Memory Seat Module (MSM) - Driver (C1) (A45)

G01743792

Courtesy of GENERAL MOTORS CORP.

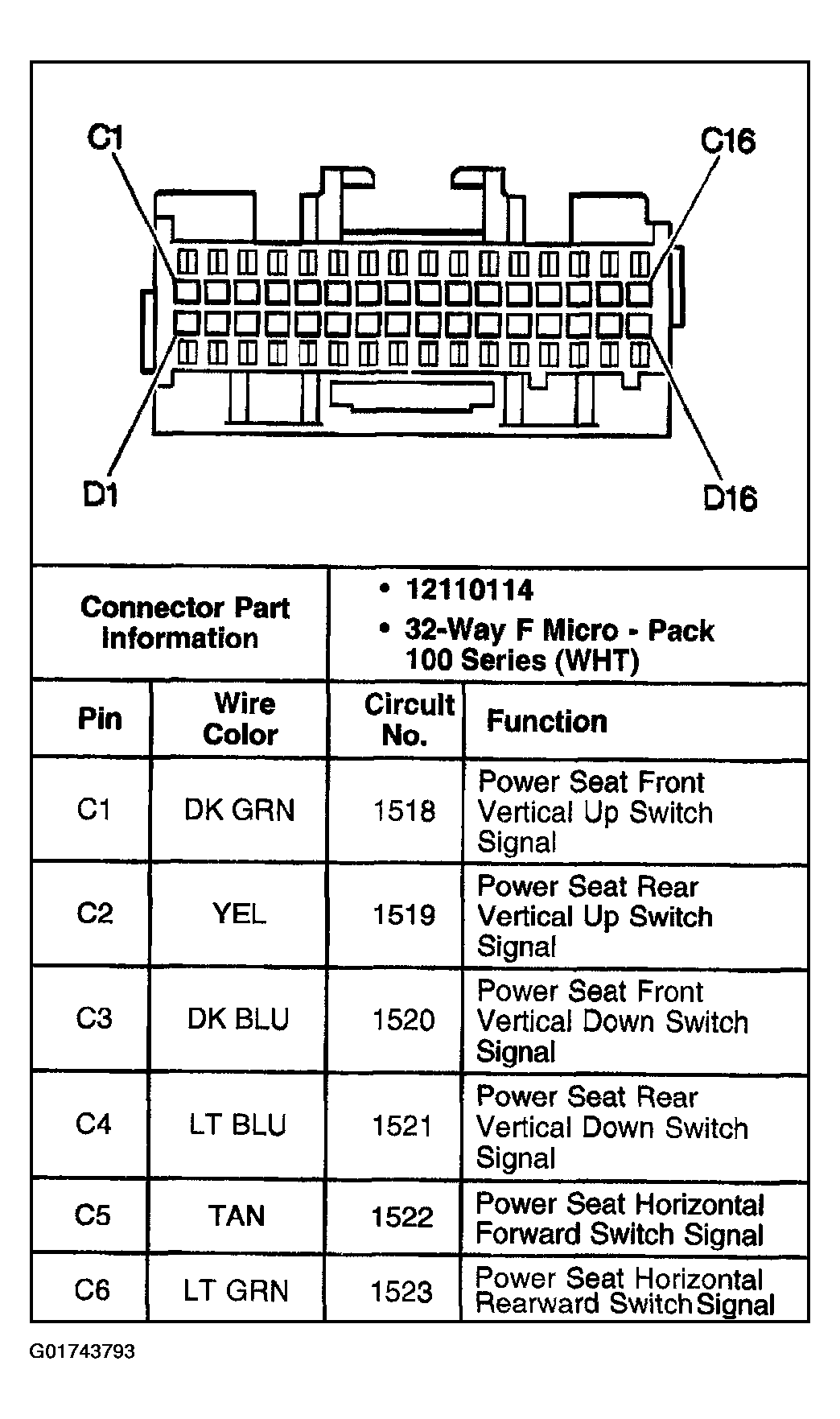

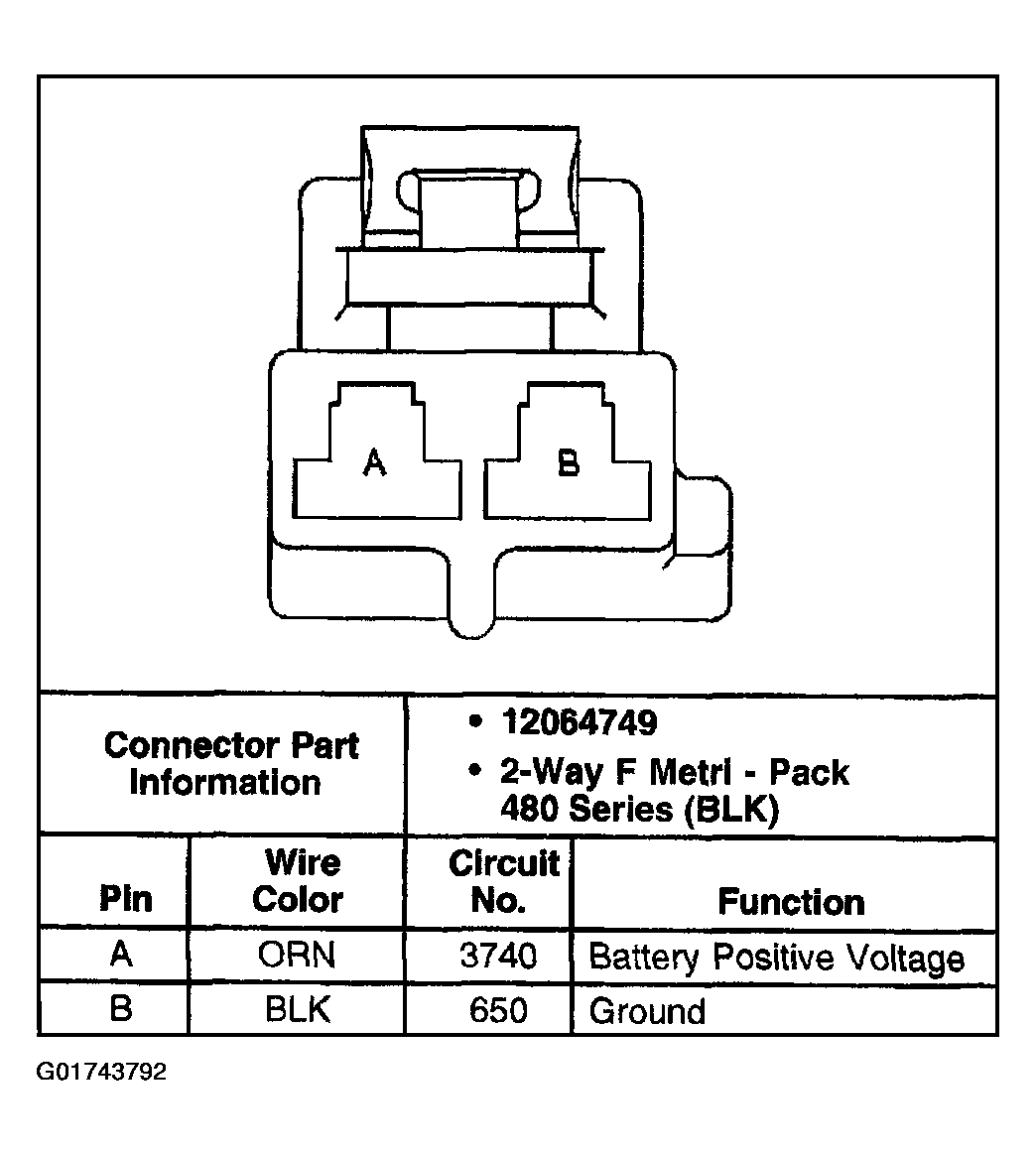

Fig 22: Memory Seat Module (MSM) - Driver (C2) (A45)

G01743793

Courtesy of GENERAL MOTORS CORP.

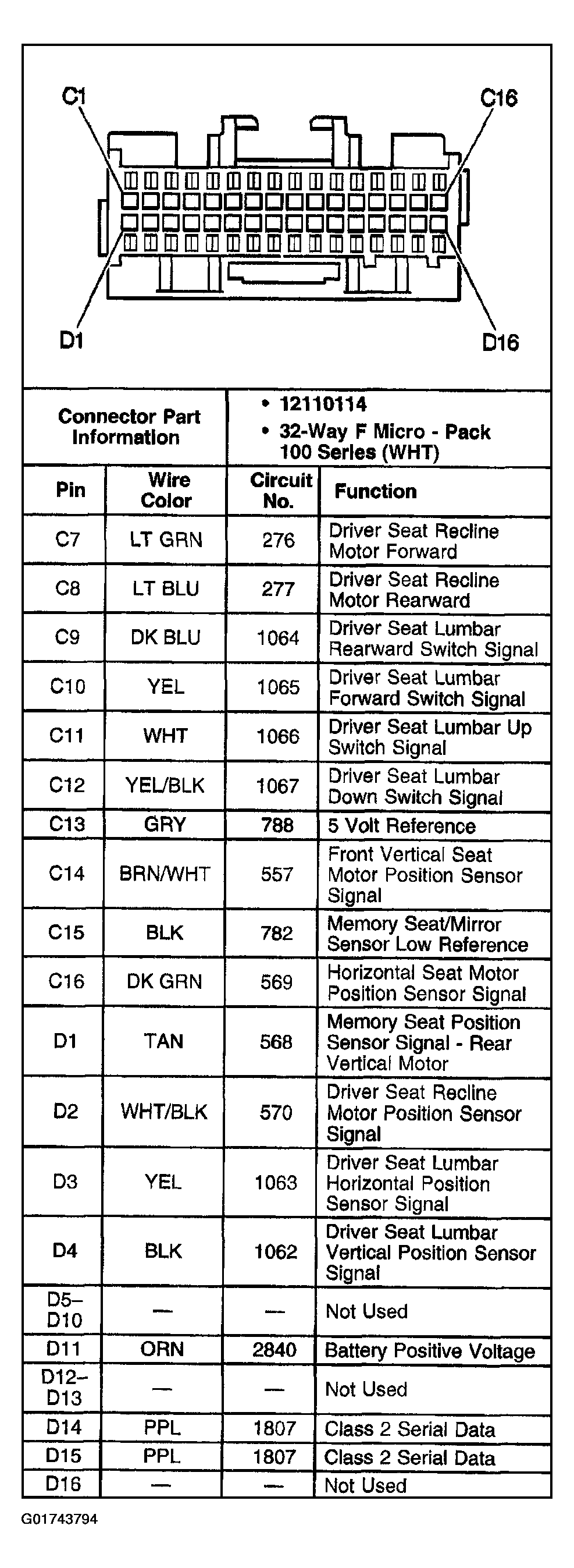

Fig 23: Memory Seat Module (MSM) - (C3) (W/A45)

G01743794

Courtesy of GENERAL MOTORS CORP.

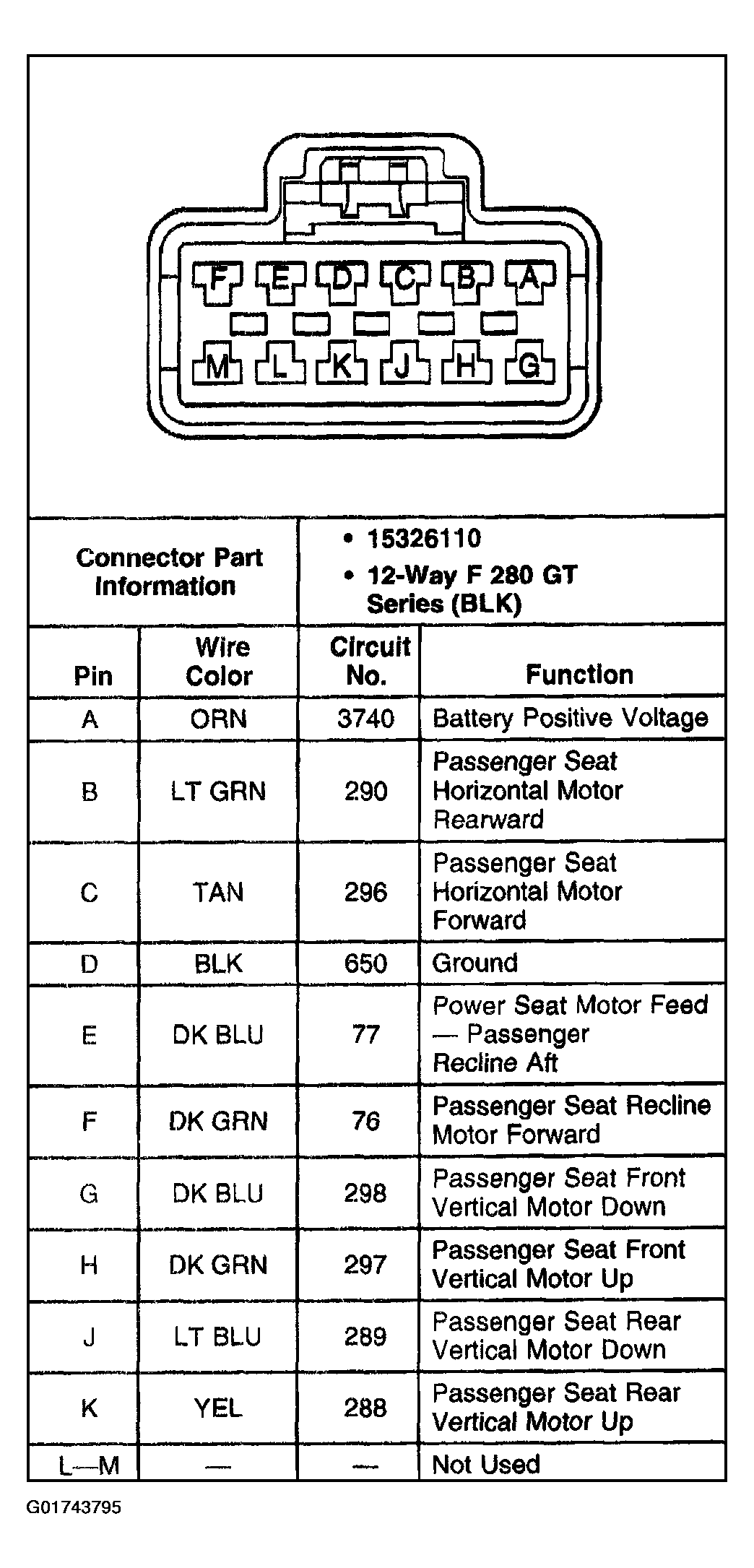

Fig 24: Seat Adjuster Switch - Front Passenger (AG2 & A81)

G01743795

Courtesy of GENERAL MOTORS CORP.

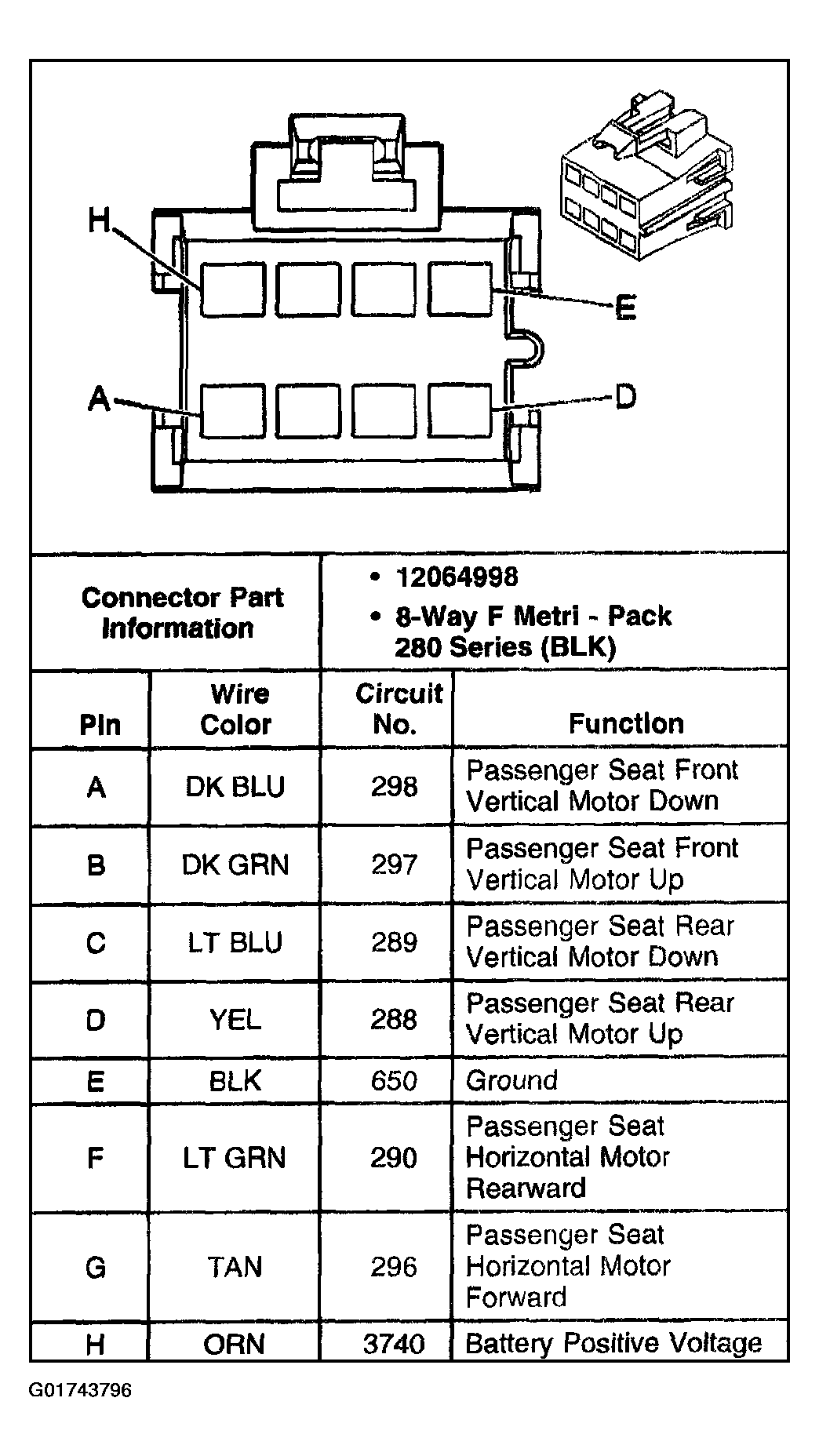

Fig 25: Seat Adjuster Switch - Front Passenger (AG2)

G01743796

Courtesy of GENERAL MOTORS CORP.

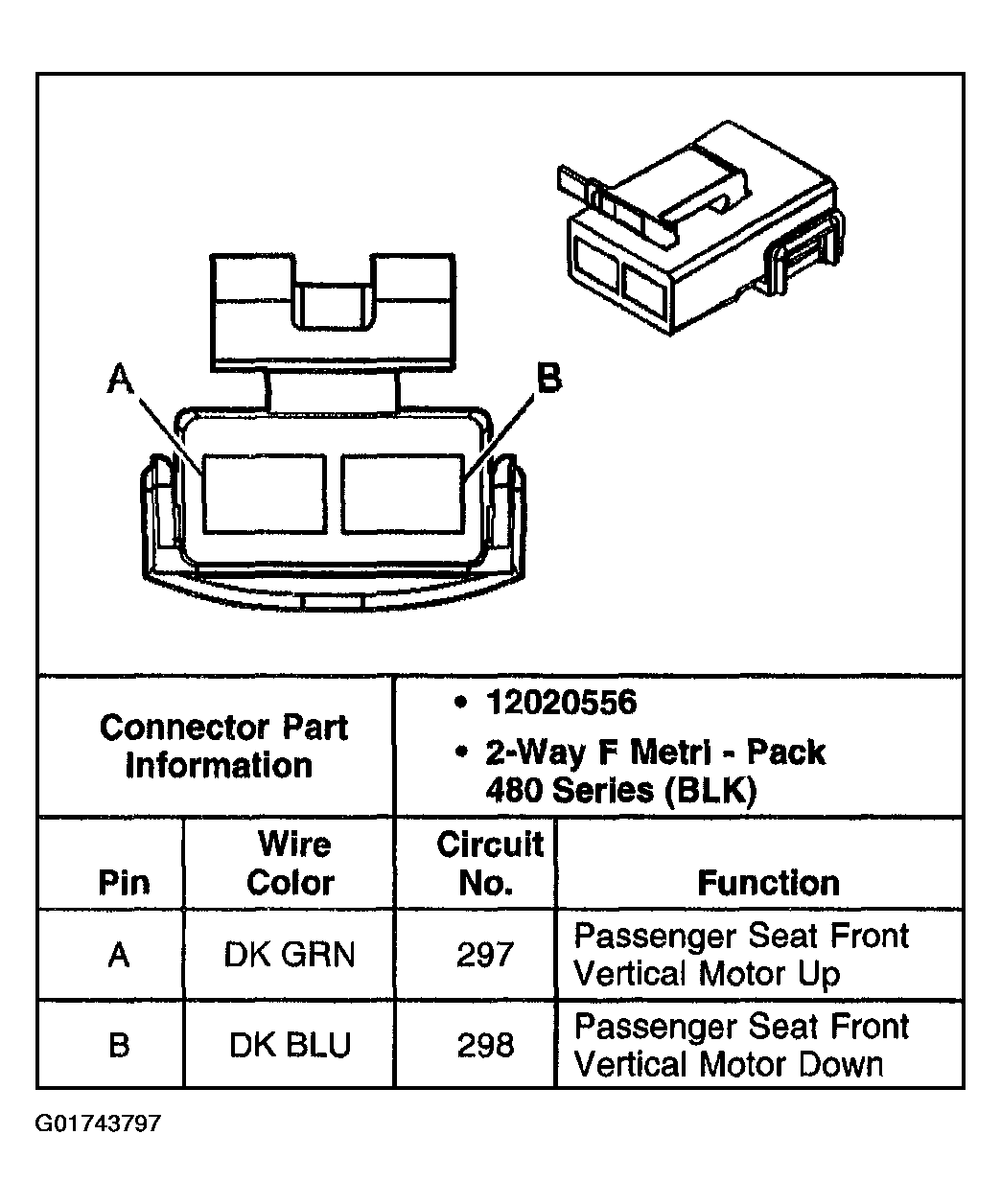

Fig 26: Seat Front Vertical Motor - Front Passenger

G01743797

Courtesy of GENERAL MOTORS CORP.

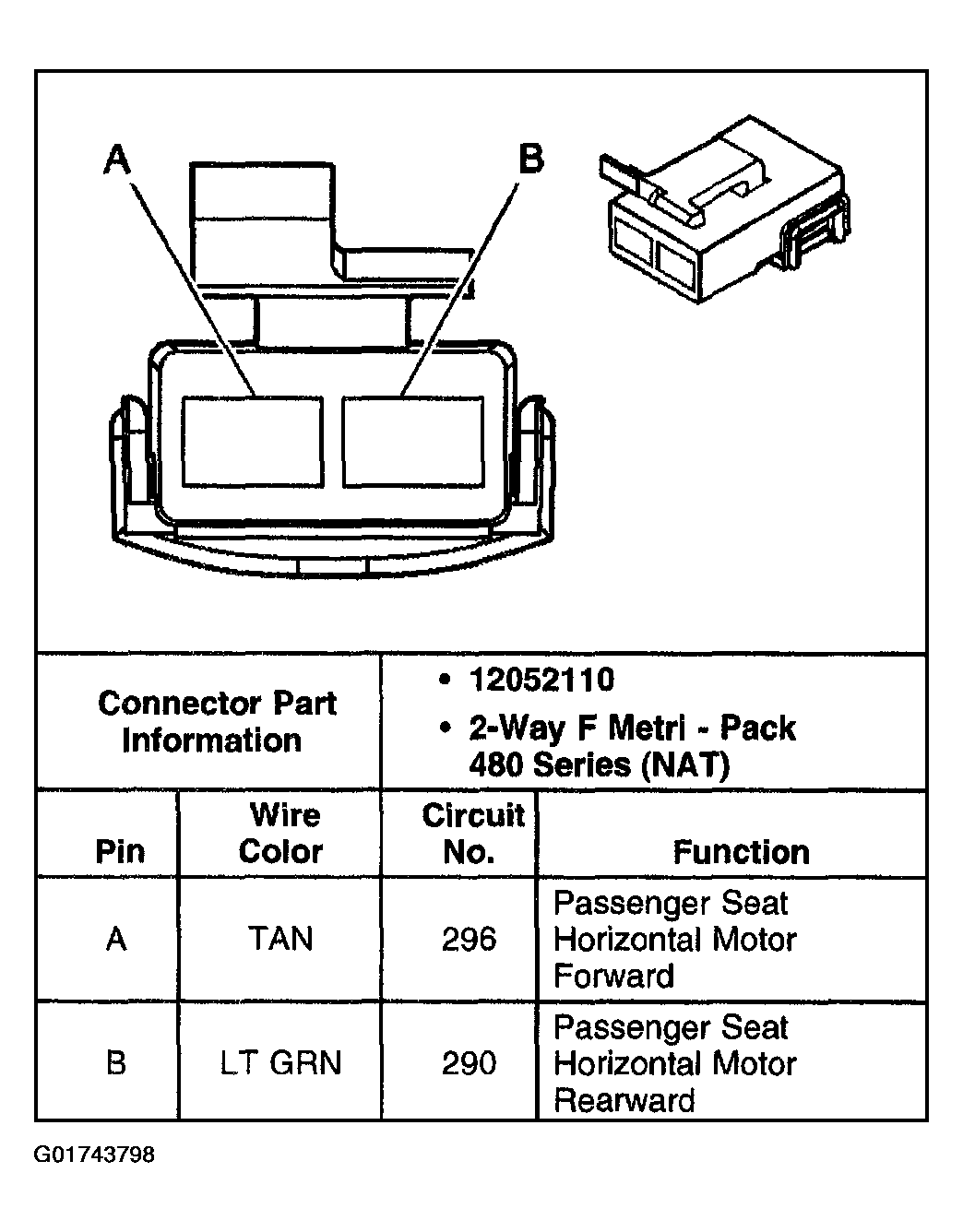

Fig 27: Seat Horizontal Motor - Front Passenger

G01743798

Courtesy of GENERAL MOTORS CORP.

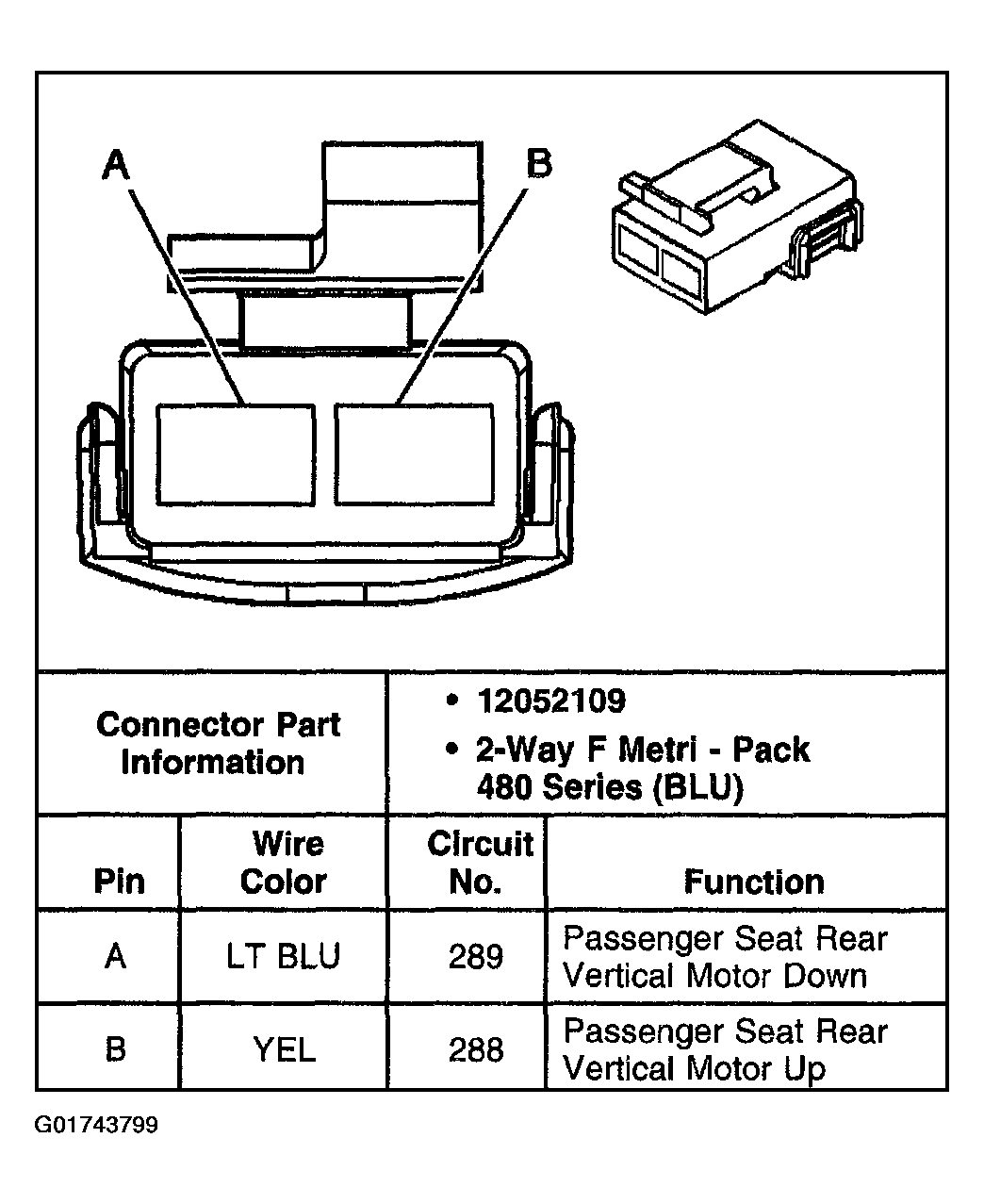

Fig 28: Seat Rear Vertical Motor - Front Passenger

G01743799

Courtesy of GENERAL MOTORS CORP.

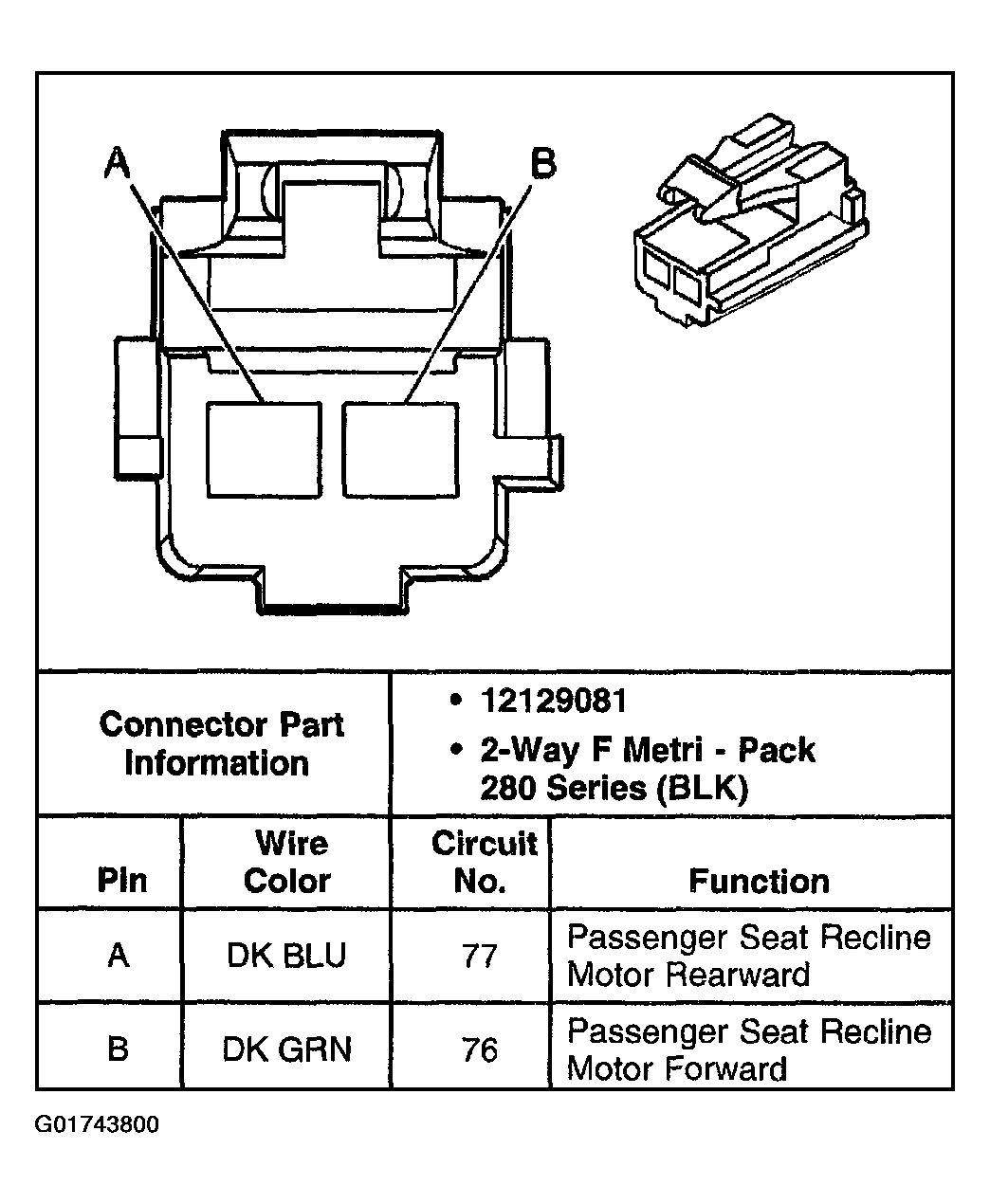

Fig 29: Seat Recline Motor - Front Passenger

G01743800

Courtesy of GENERAL MOTORS CORP.

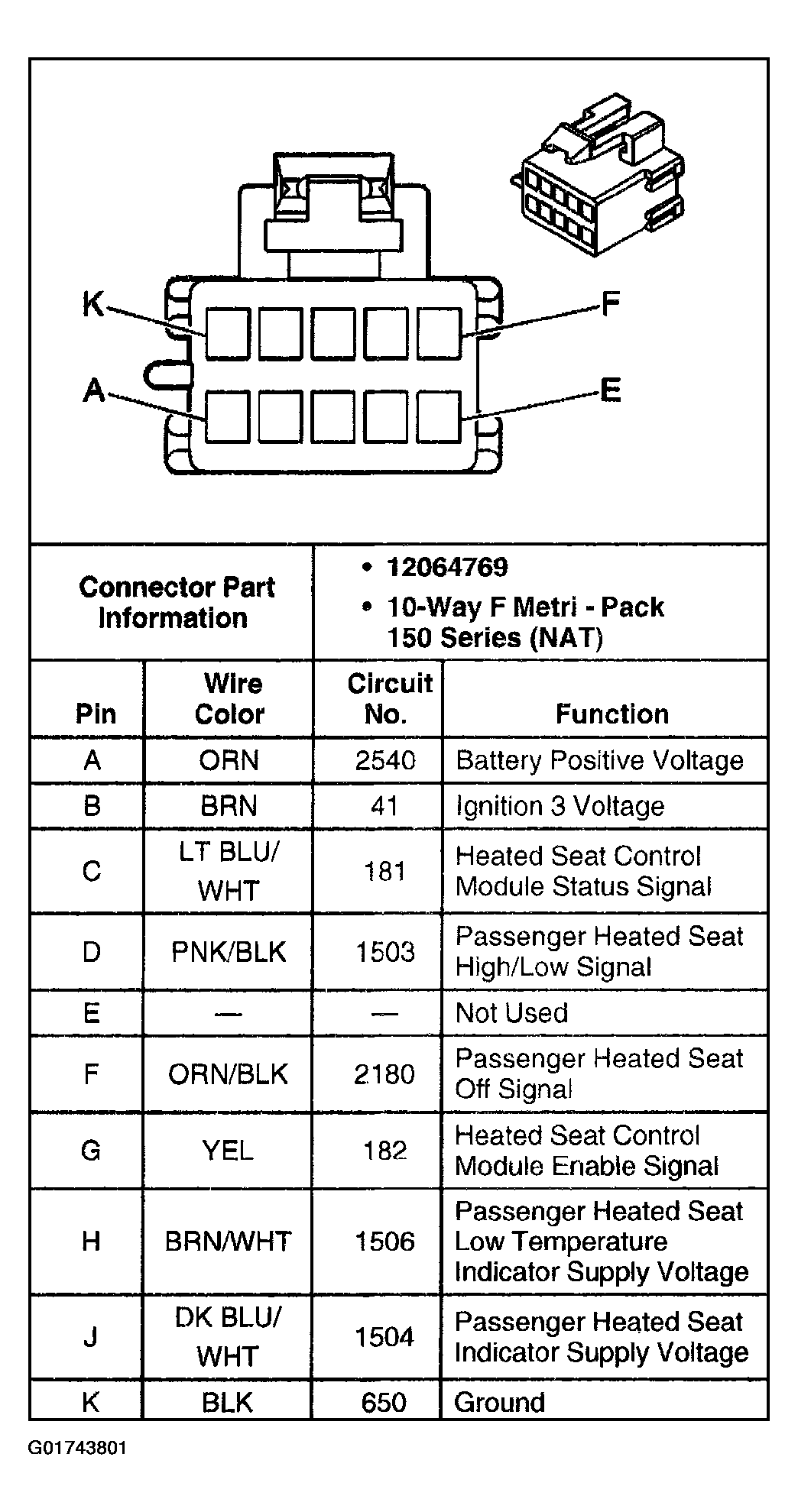

Fig 30: Heated Seat Module - Front Passenger (C1) (AG2, A81 & KA1)

G01743801

Courtesy of GENERAL MOTORS CORP.

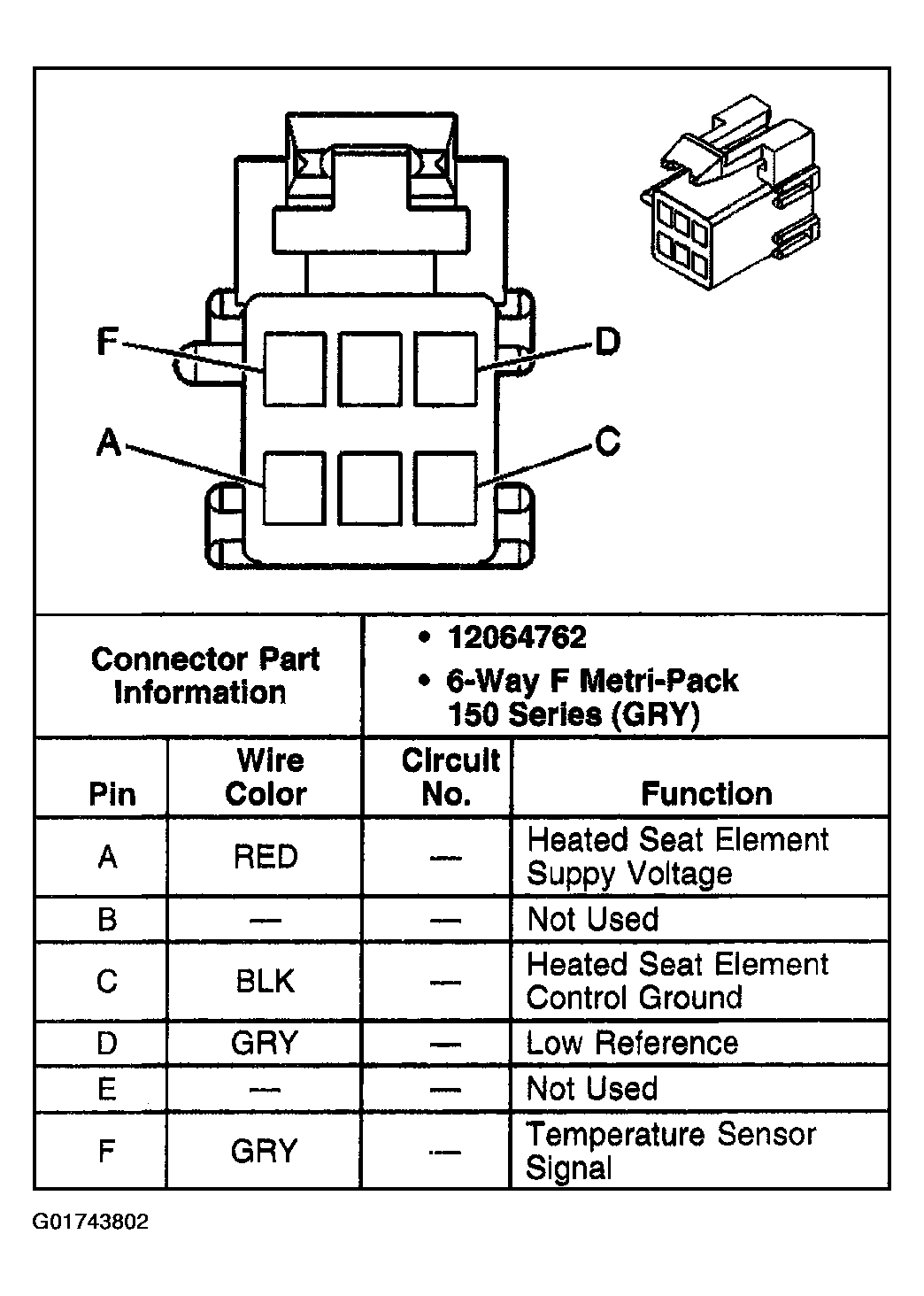

Fig 31: Heated Seat Module - Front Passenger (C2) (W/AG2, A81 & KA1)

G01743802

Courtesy of GENERAL MOTORS CORP.

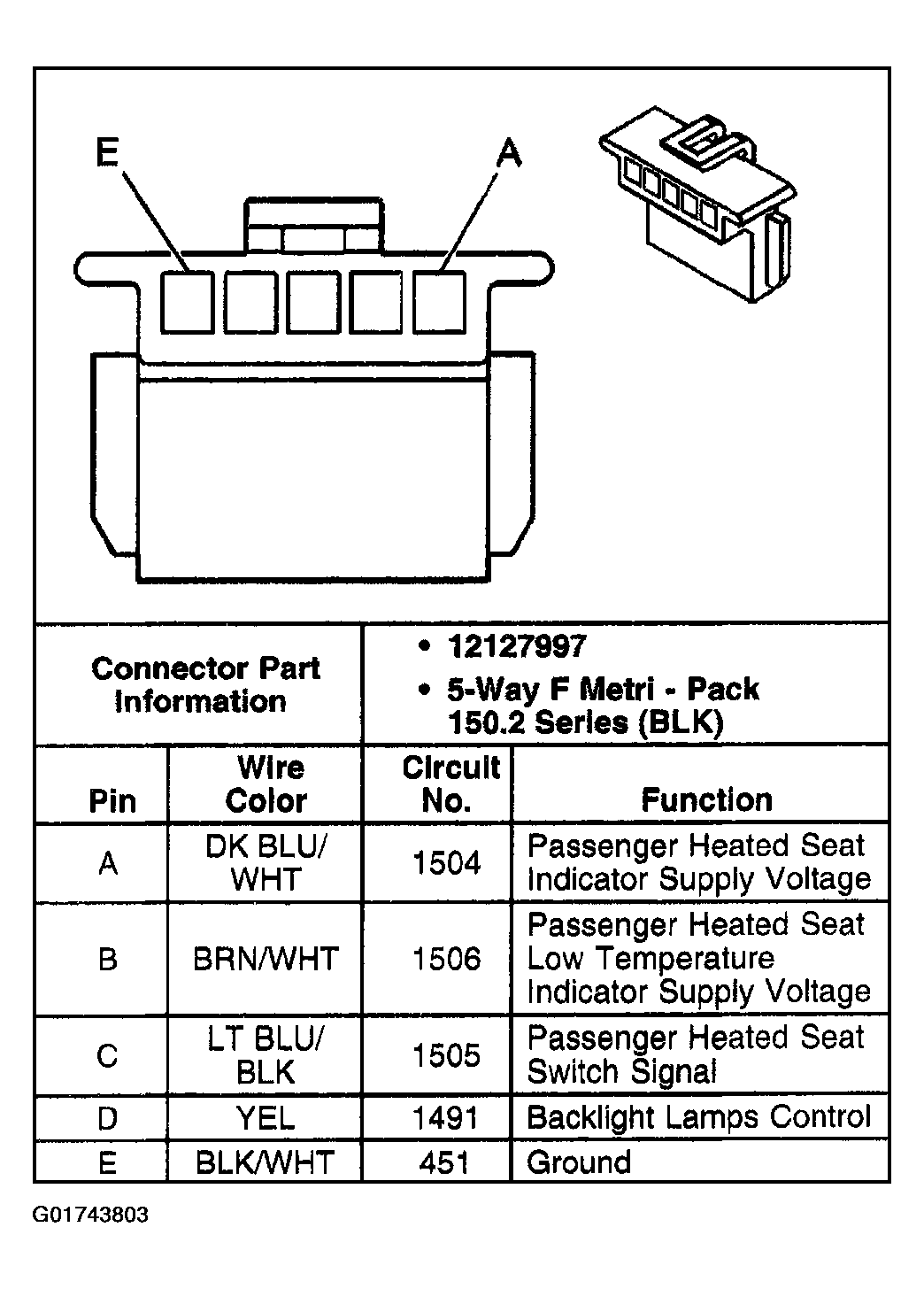

Fig 32: Heated Seat Switch - Front Passenger

G01743803

Courtesy of GENERAL MOTORS CORP.

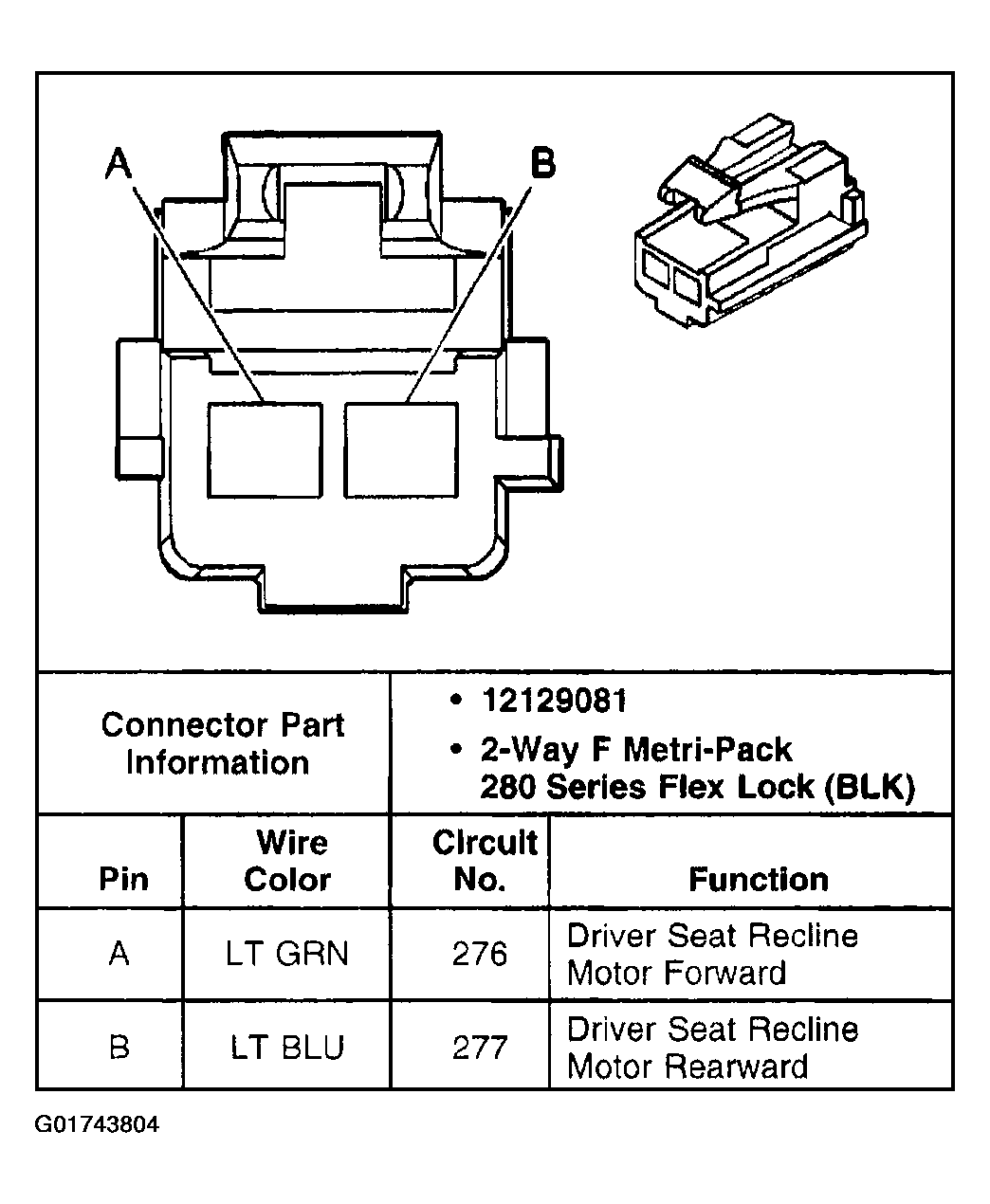

Fig 33: Recline Motor - Driver (AG1)

G01743804

Courtesy of GENERAL MOTORS CORP.

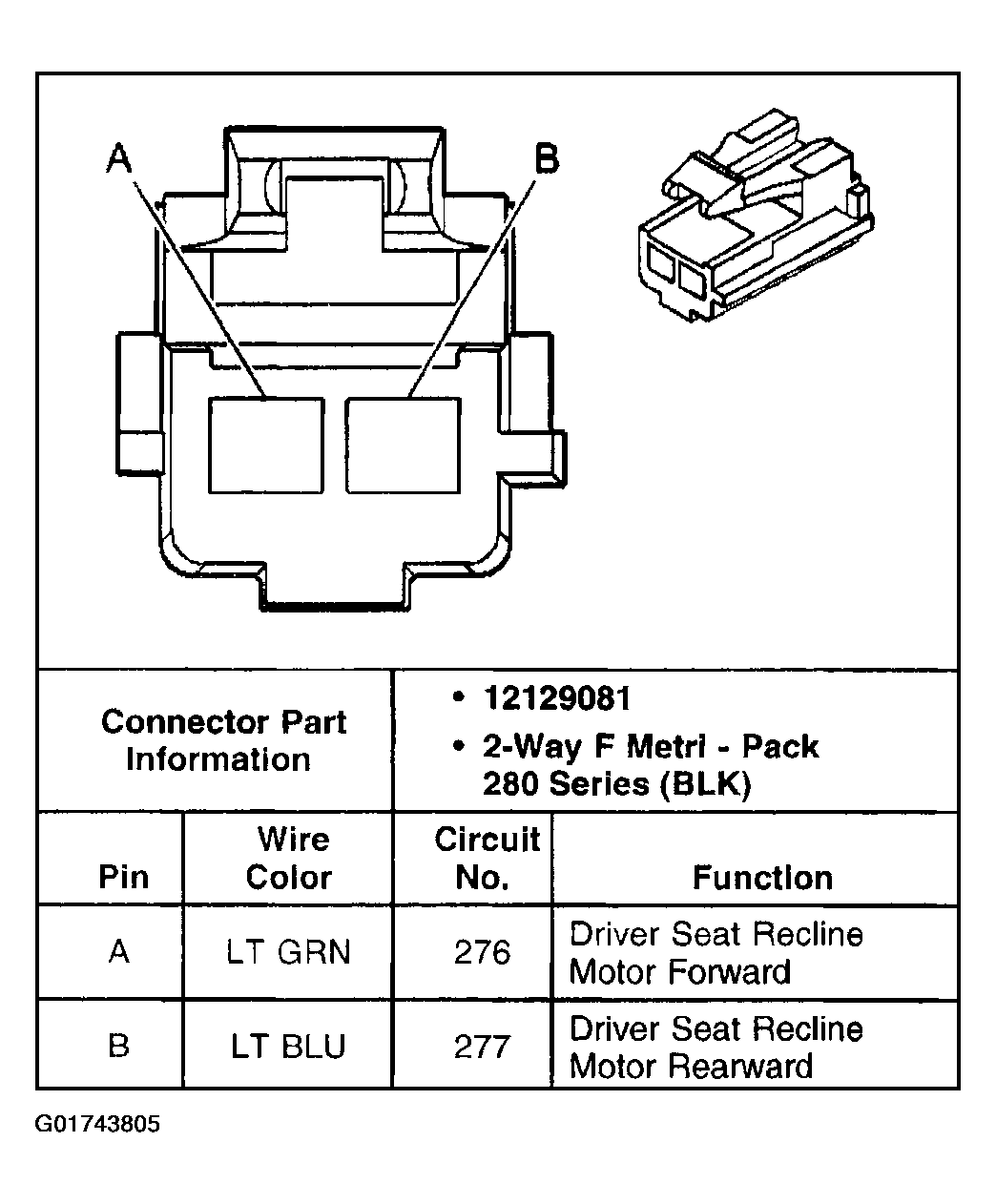

Fig 34: Seat Recline Motor - Driver

G01743805

Courtesy of GENERAL MOTORS CORP.

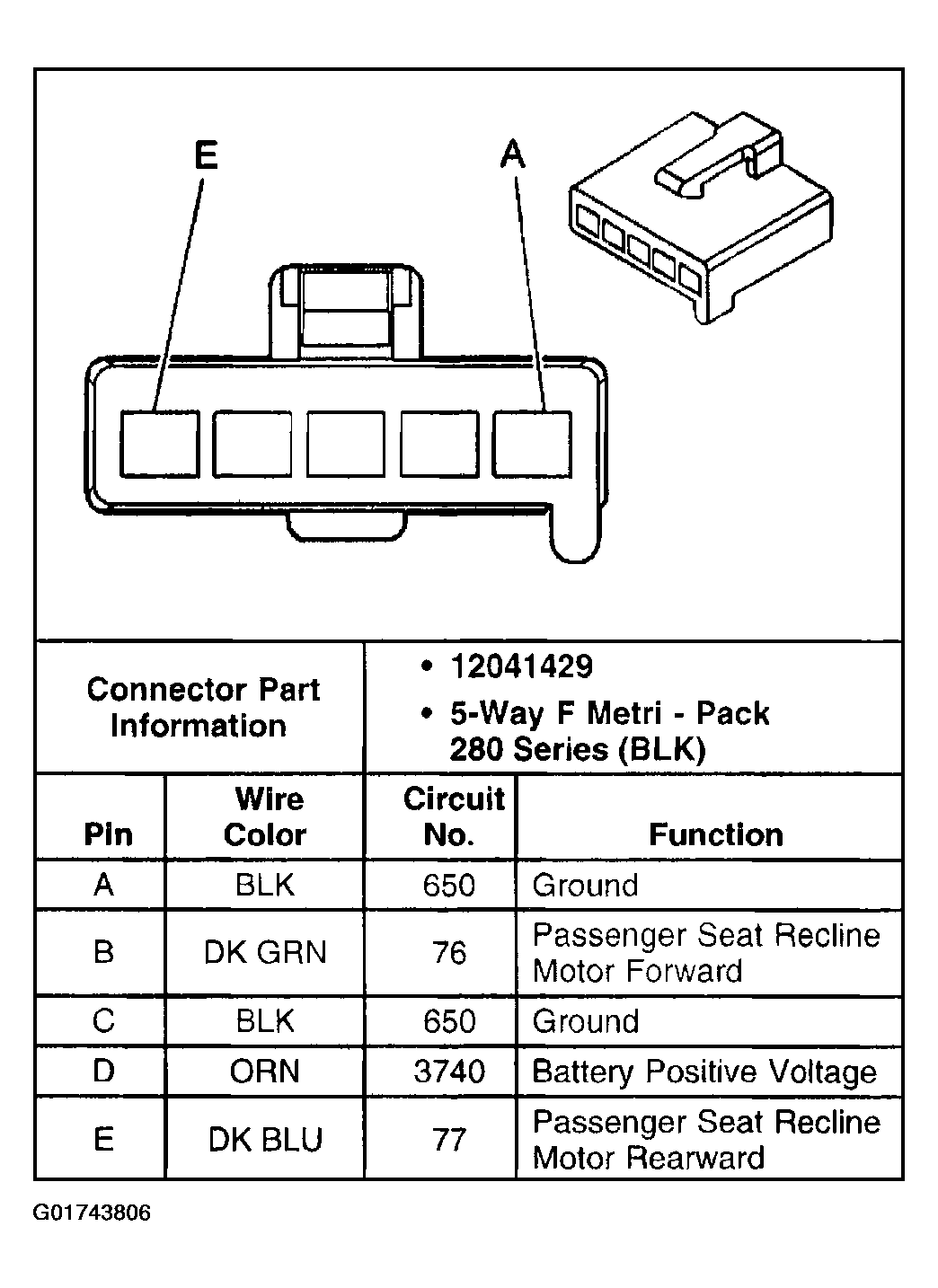

Fig 35: Seat Recline Switch - Front Passenger

G01743806

Courtesy of GENERAL MOTORS CORP.

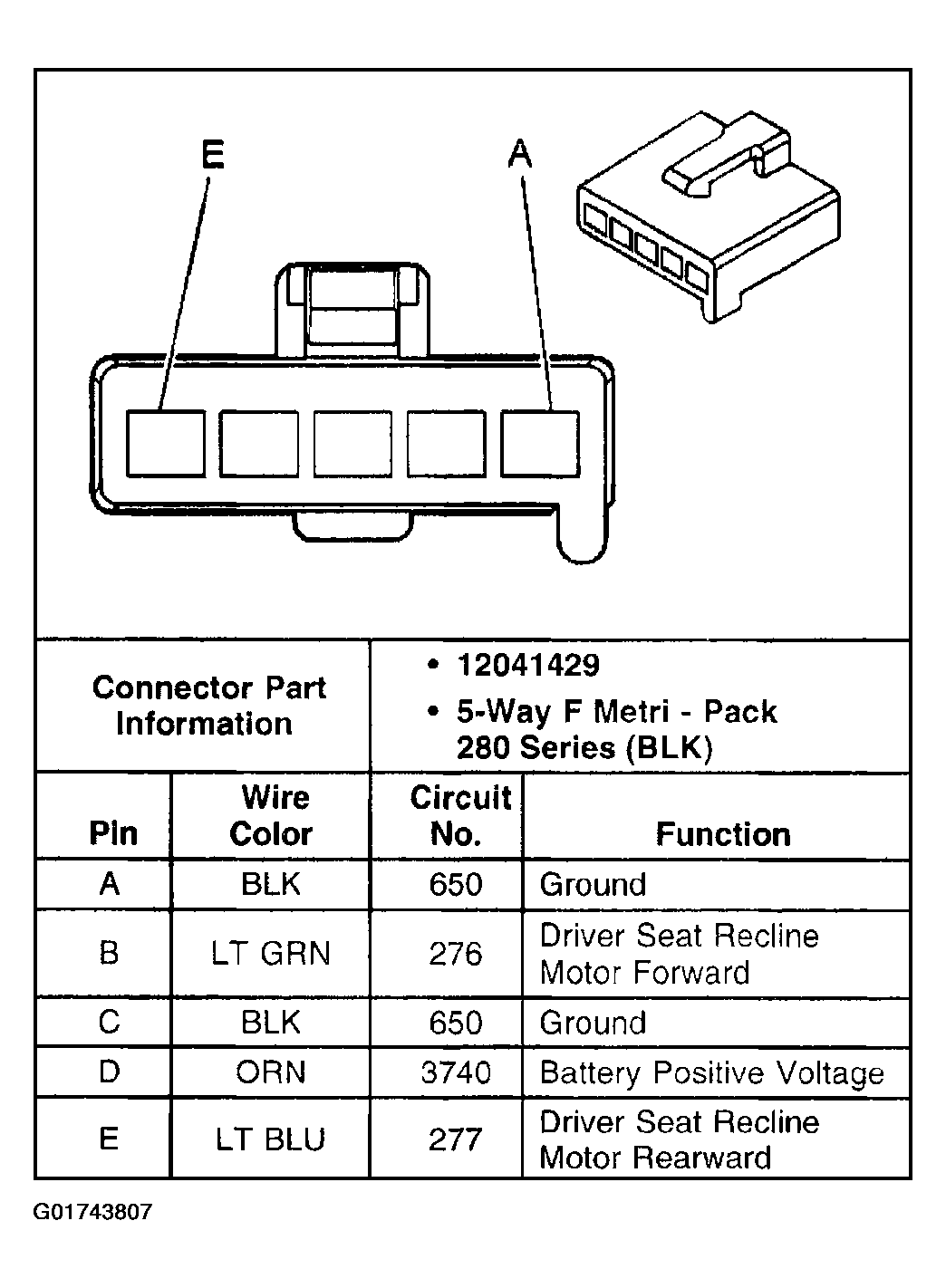

Fig 36: Seat Recline Switch - Driver

G01743807

Courtesy of GENERAL MOTORS CORP.
