Installation Procedure

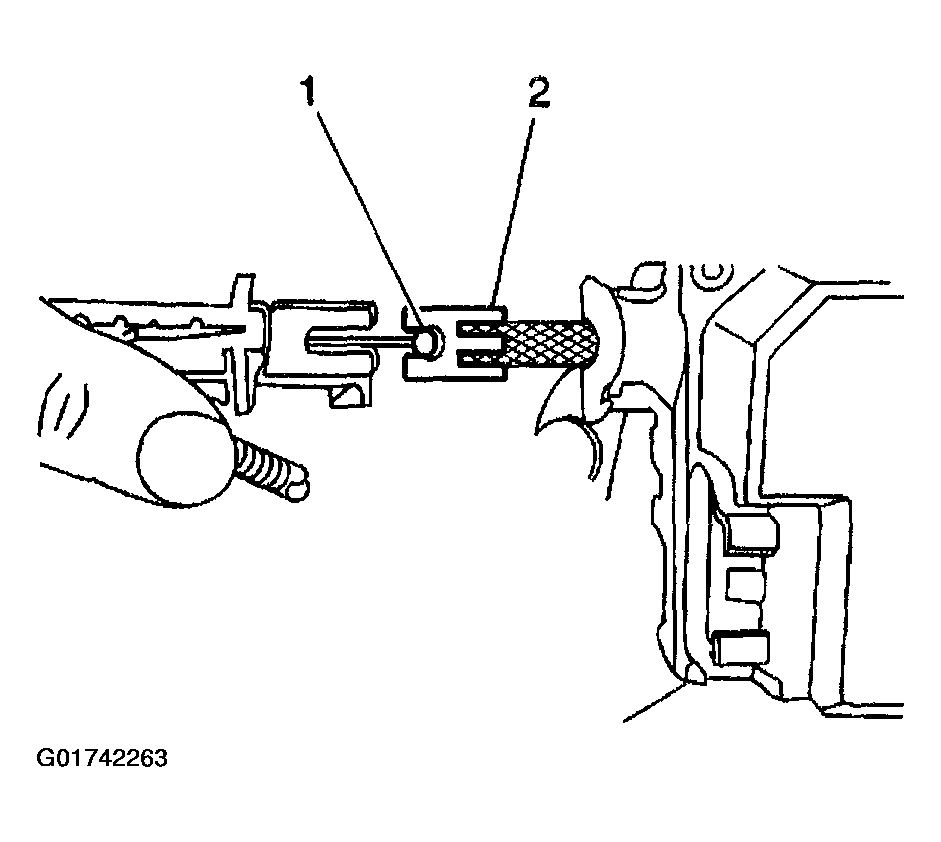

  1. Install the cruise control cable ball stud (1) into the slot in the cruise control module actuator strip (2). See Figure.
  2. Insert the cruise control cable housing into the cruise control module and twist clockwise to secure.
    NOTE: The cruise control cable does not require mechanical adjusting after the replacement. The cruise control module internally adjusts the cable. Refer to CRUISE CONTROL DESCRIPTION & OPERATION  for the complete operational details.

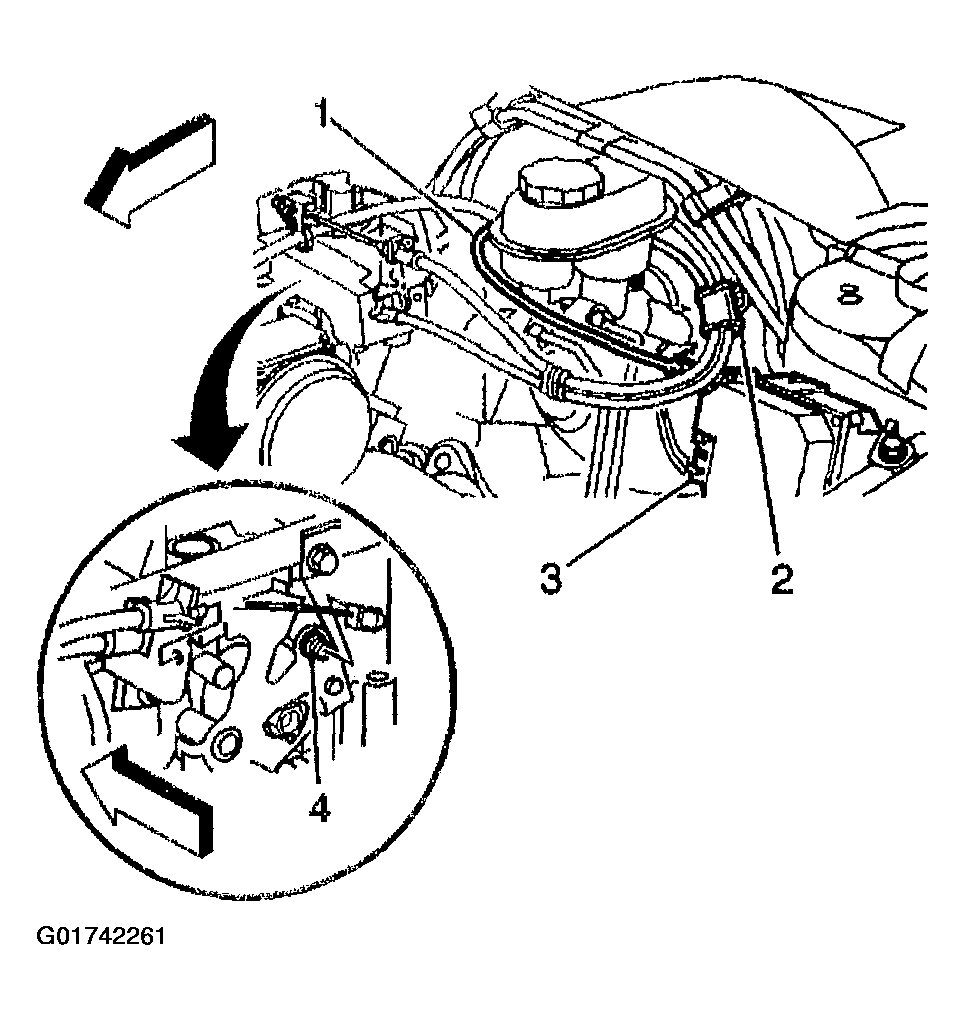

  3. Connect the cruise control cable to the throttle body injection cam (4). See Figure.
  4. Snap the cable bracket into the throttle body bracket.
  5. Install the cable into the retainers (2).
