Conditions For Enabling Cruise Control

• When vehicle speed is more than 40 km/h (25 mph).
• When PARK, REVERSE, NEUTRAL, or 1st gear is not indicated.
• When an over/undercharged battery condition does not exist.
• With normal engine RPM.

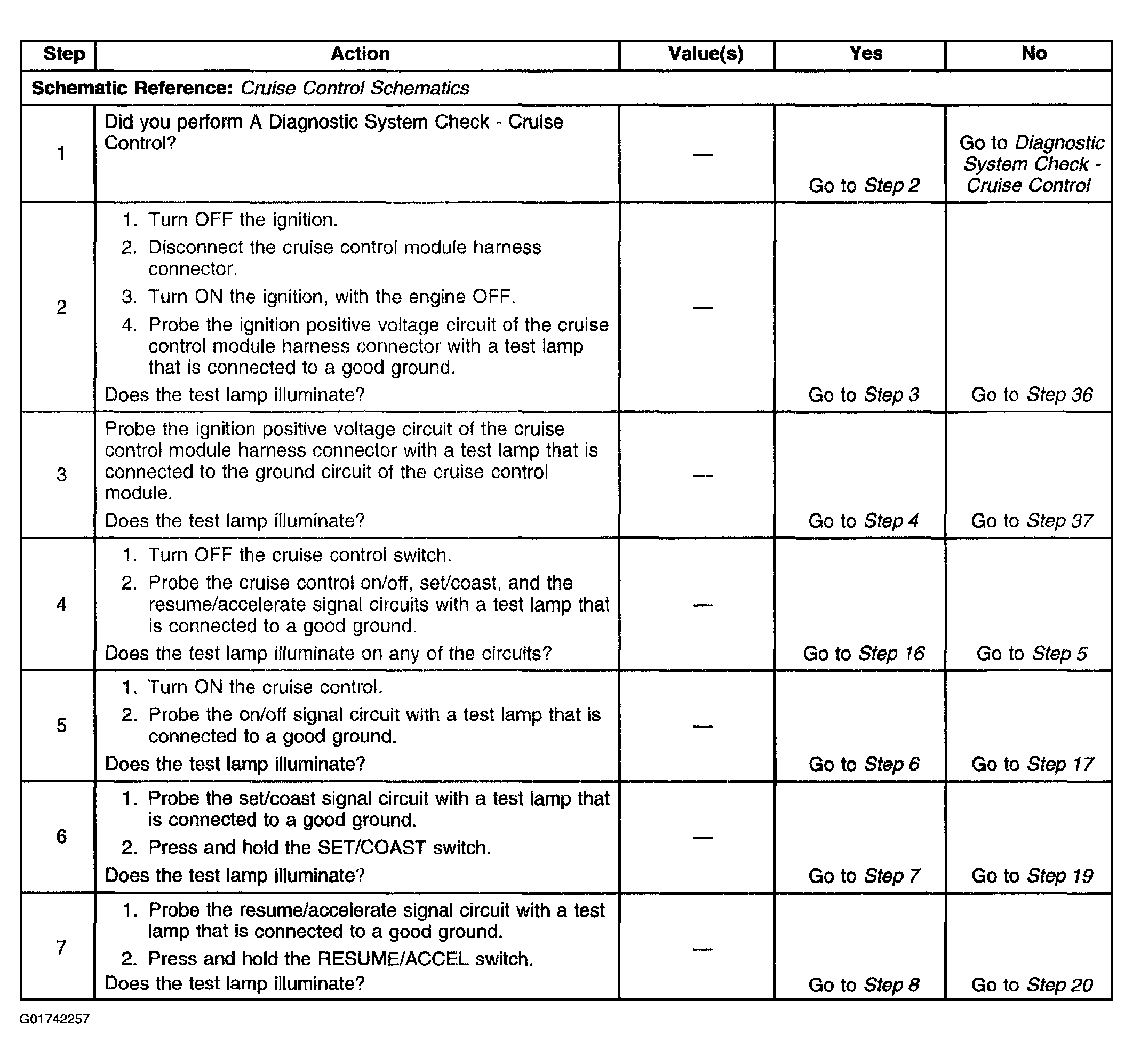

Fig 1: Cruise Control Inoperative/Malfunctioning (1 Of 4)

Courtesy of GENERAL MOTORS CORP.

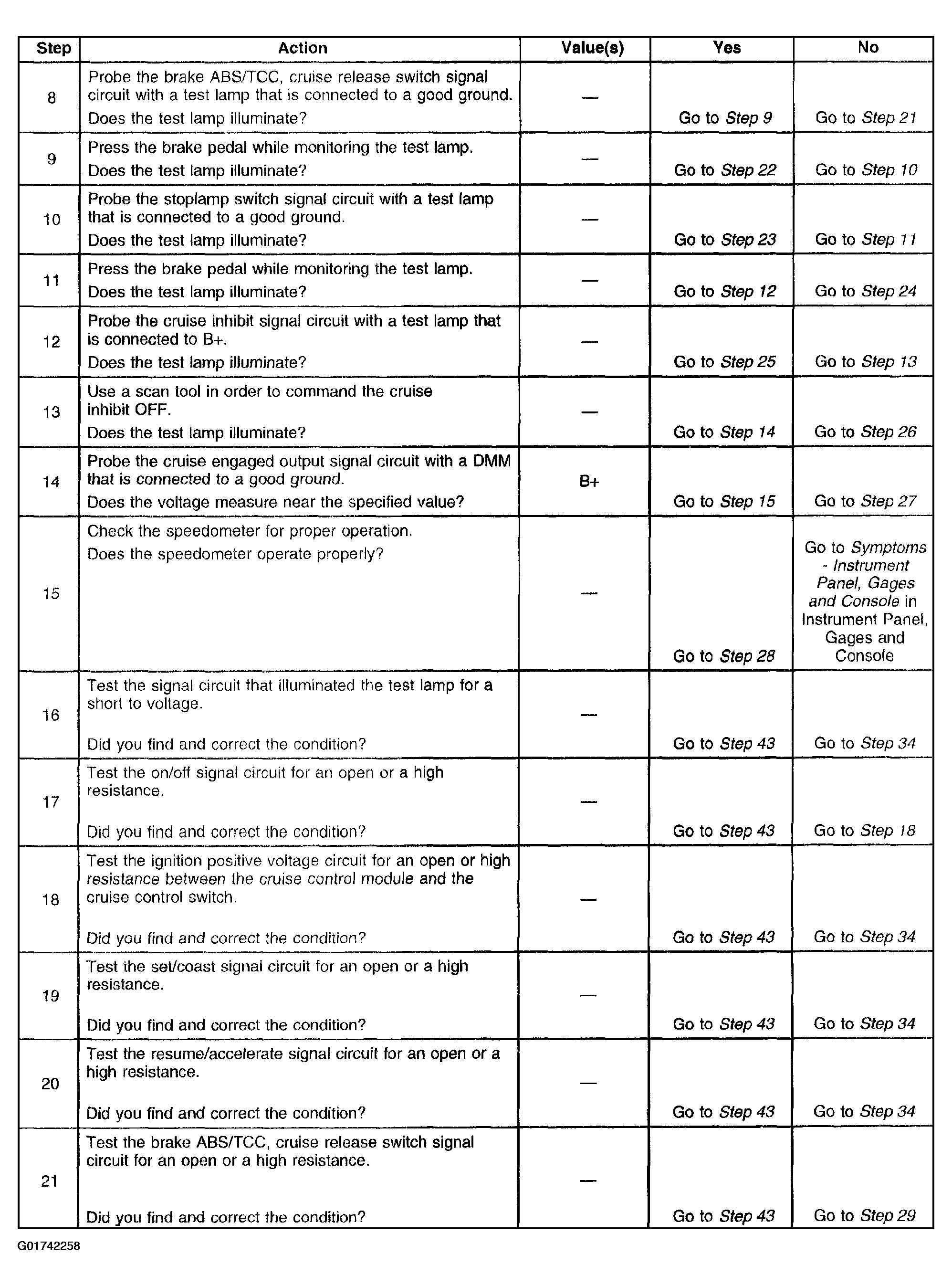

Fig 2: Cruise Control Inoperative/Malfunctioning (2 Of 4)

Courtesy of GENERAL MOTORS CORP.

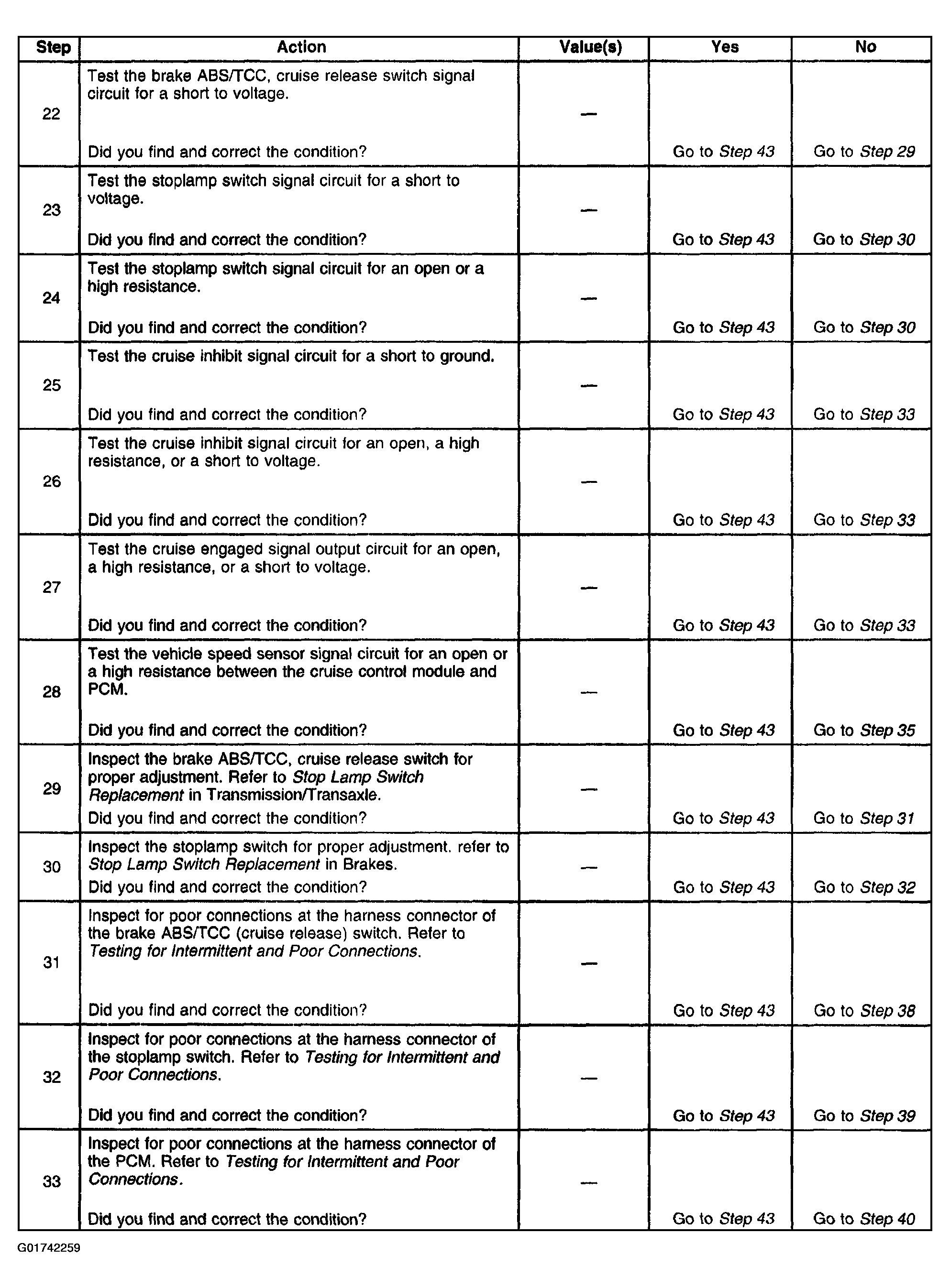

Fig 3: Cruise Control Inoperative/Malfunctioning (3 Of 4)

Courtesy of GENERAL MOTORS CORP.

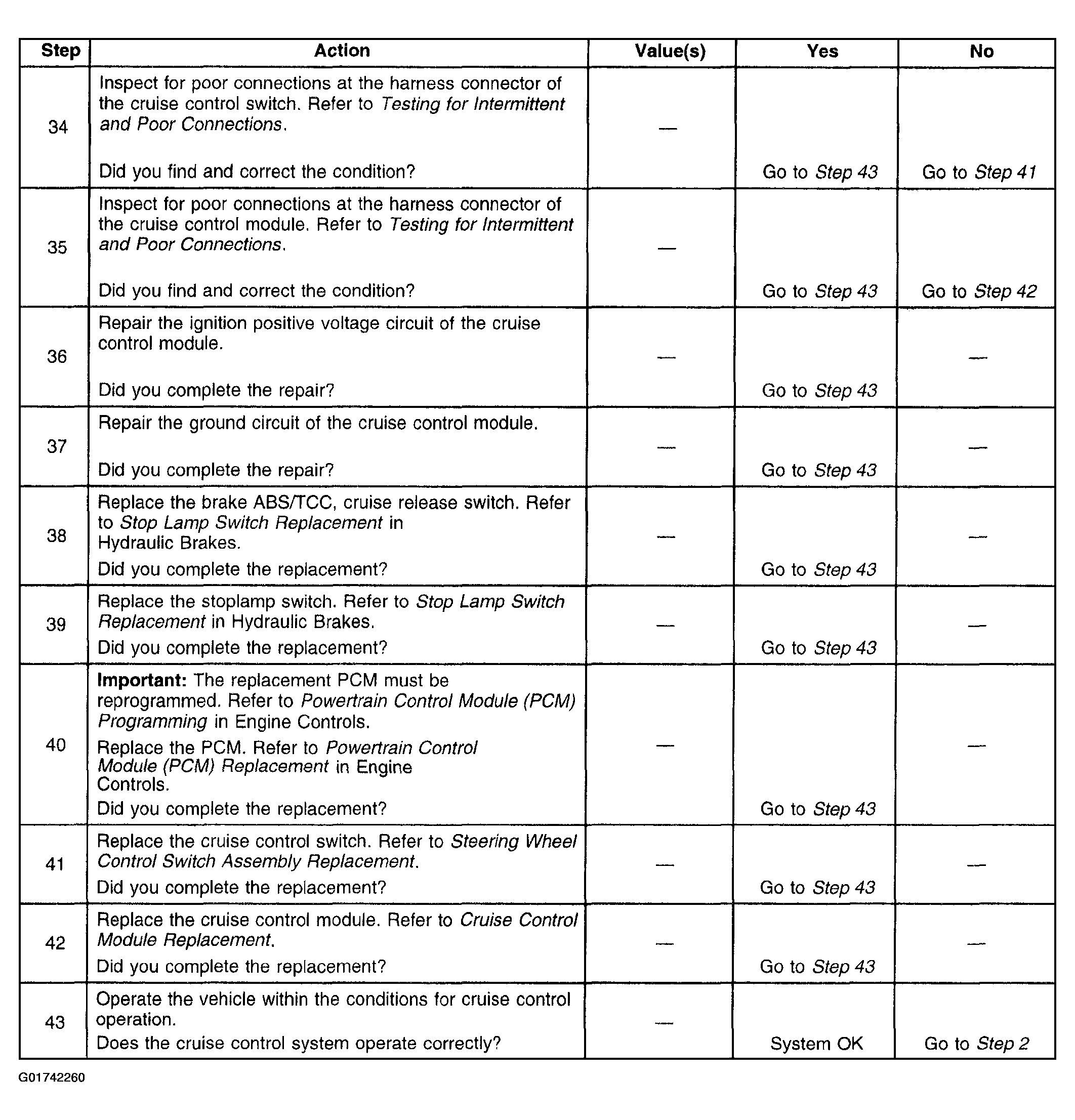

Fig 4: Cruise Control Inoperative/Malfunctioning (4 Of 4)

Courtesy of GENERAL MOTORS CORP.
