Data Link Communications Connector End Views

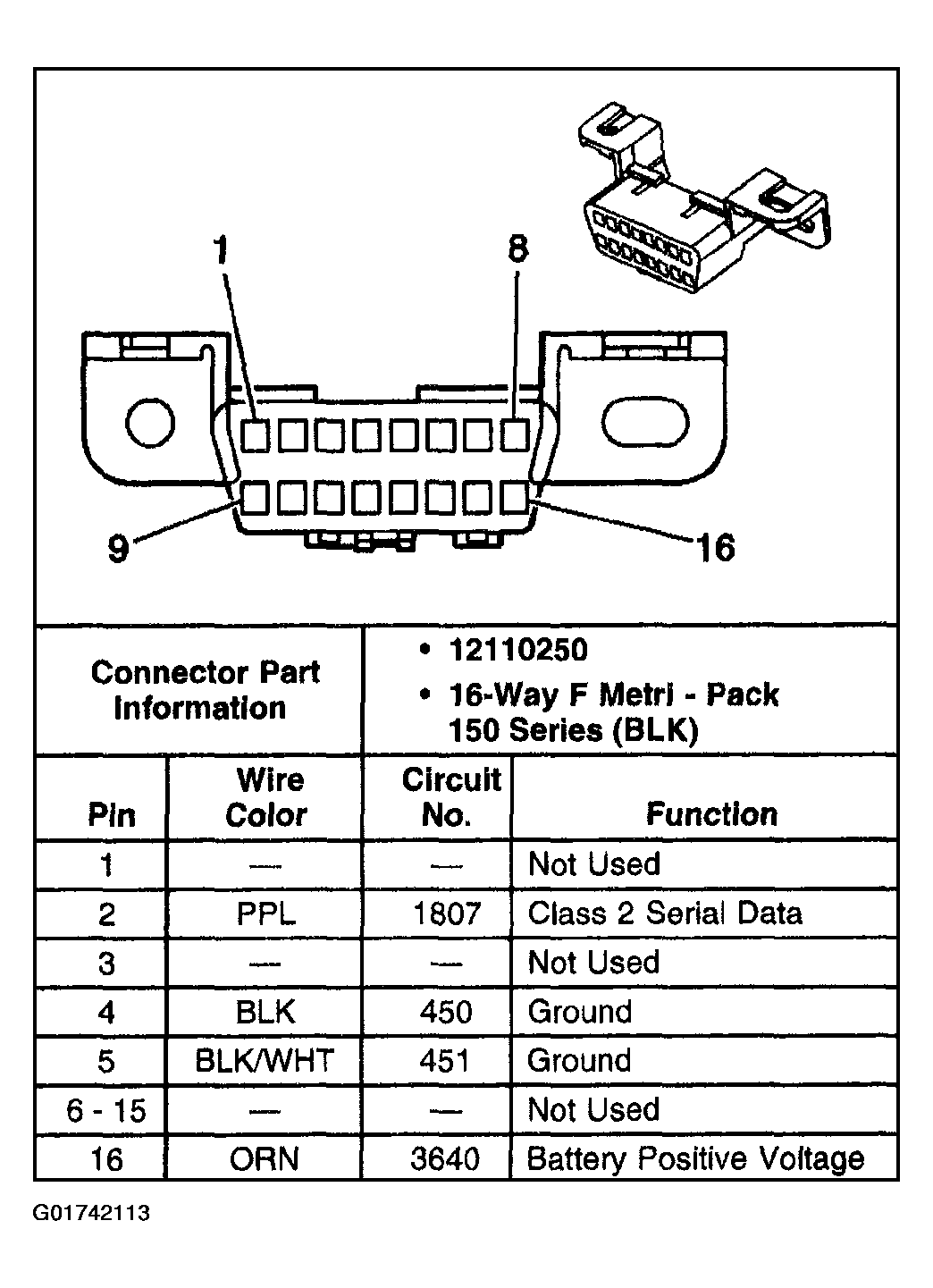

Fig 1: Data Link Connector End Views

G01742113

Courtesy of GENERAL MOTORS CORP.
