Removal Procedure

  1. Disconnect the cruise control cable. Refer to CRUISE CONTROL CABLE REPLACEMENT .
  2. Disconnect the electrical connector (2).

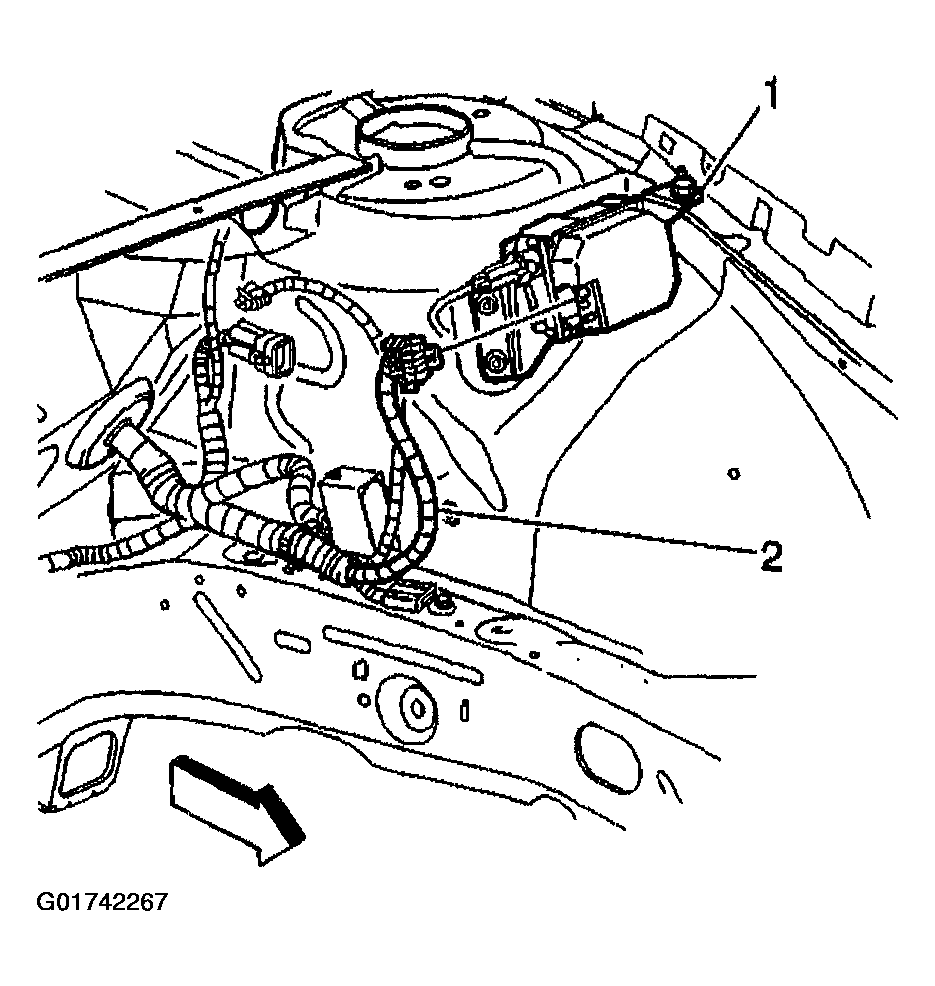

    3. Fig 1: Disconnecting Electrical Connector
    G01742267Courtesy of GENERAL MOTORS CORP.
  3. Remove the cruise control module bracket retaining fasteners (1, 3).

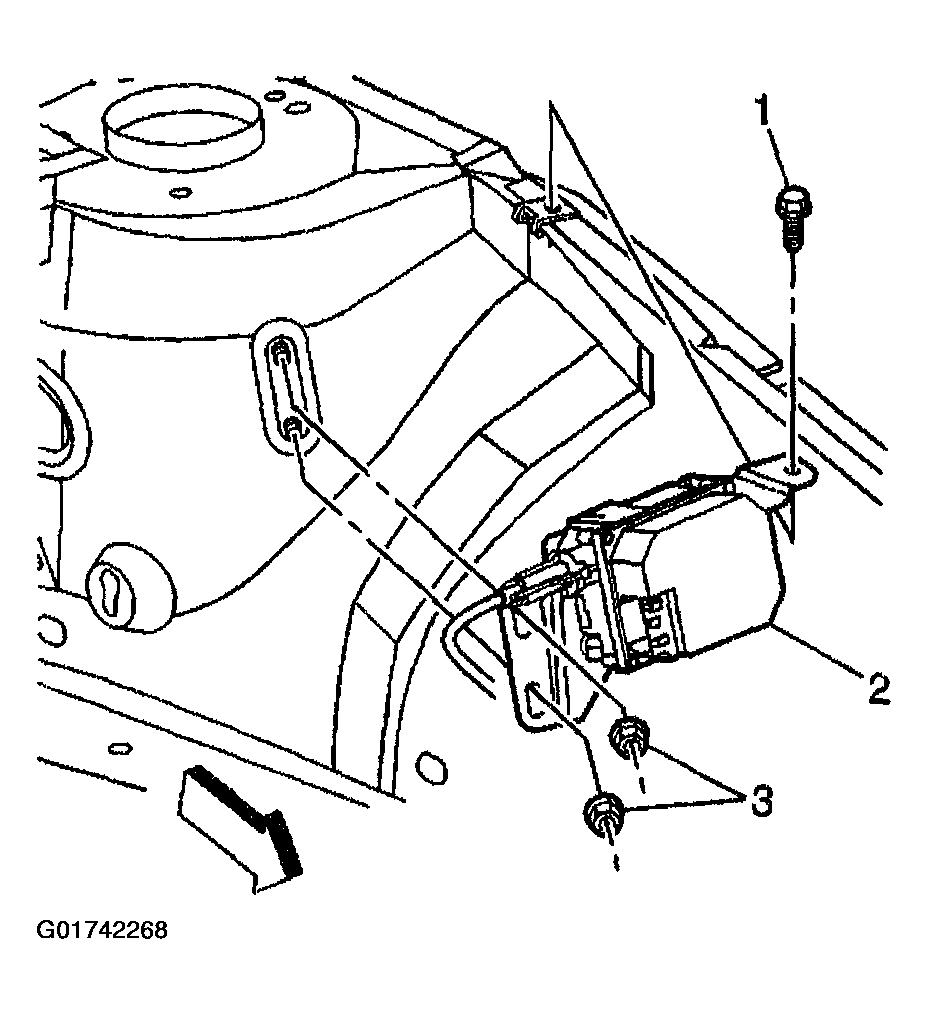

    4. Fig 2: Removing Cruise Control Module Bracket Retaining Fasteners
    G01742268Courtesy of GENERAL MOTORS CORP.
  4. Remove the cruise control module and bracket assembly (2) from the vehicle.
  5. Remove the module to bracket fasteners.
  6. Remove the cruise control module from the bracket.
