Seat Belt Connector End Views

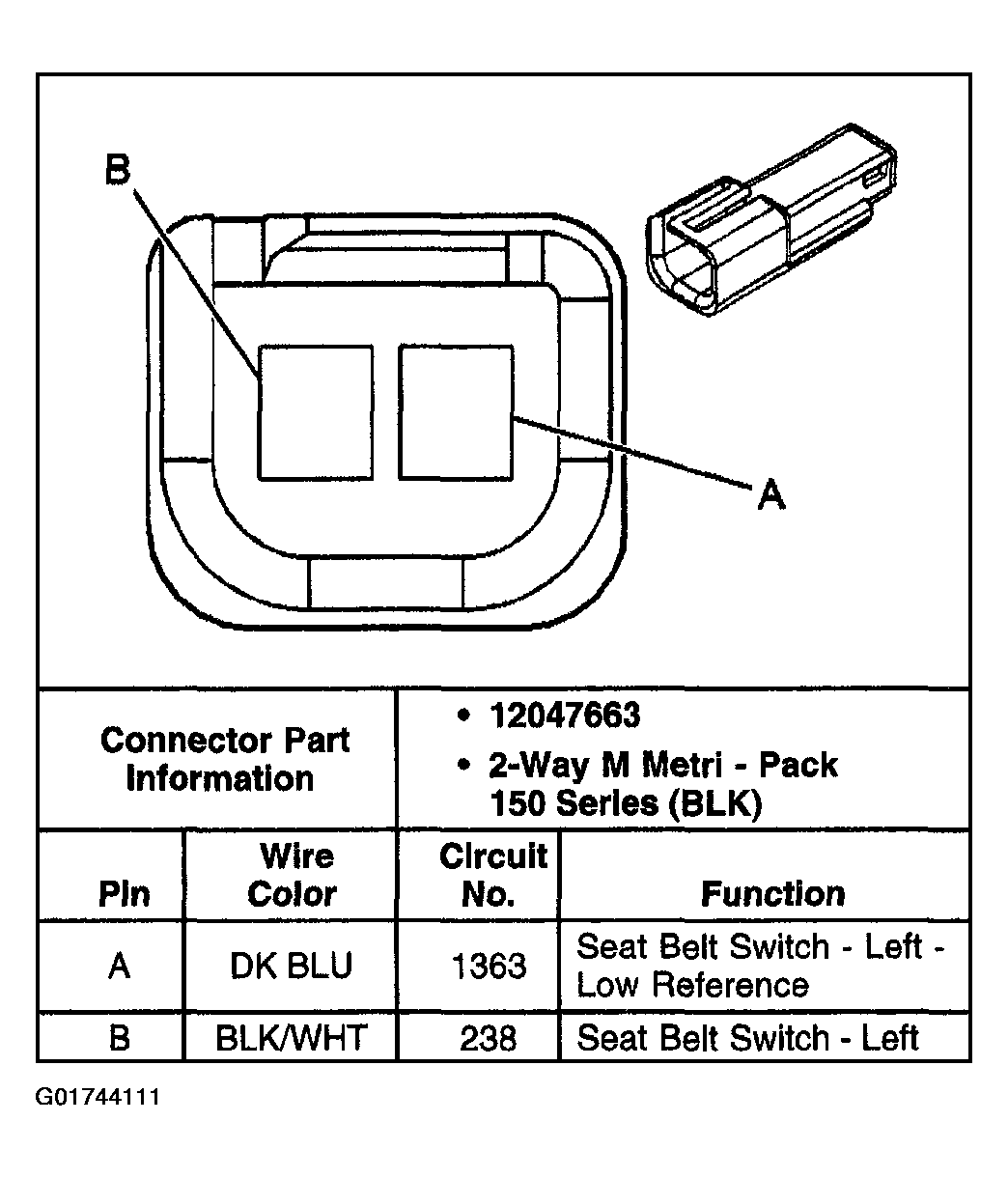

Fig 1: Seat Belt Switch-LF

G01744111

Courtesy of GENERAL MOTORS CORP.
