Horns Connector End View

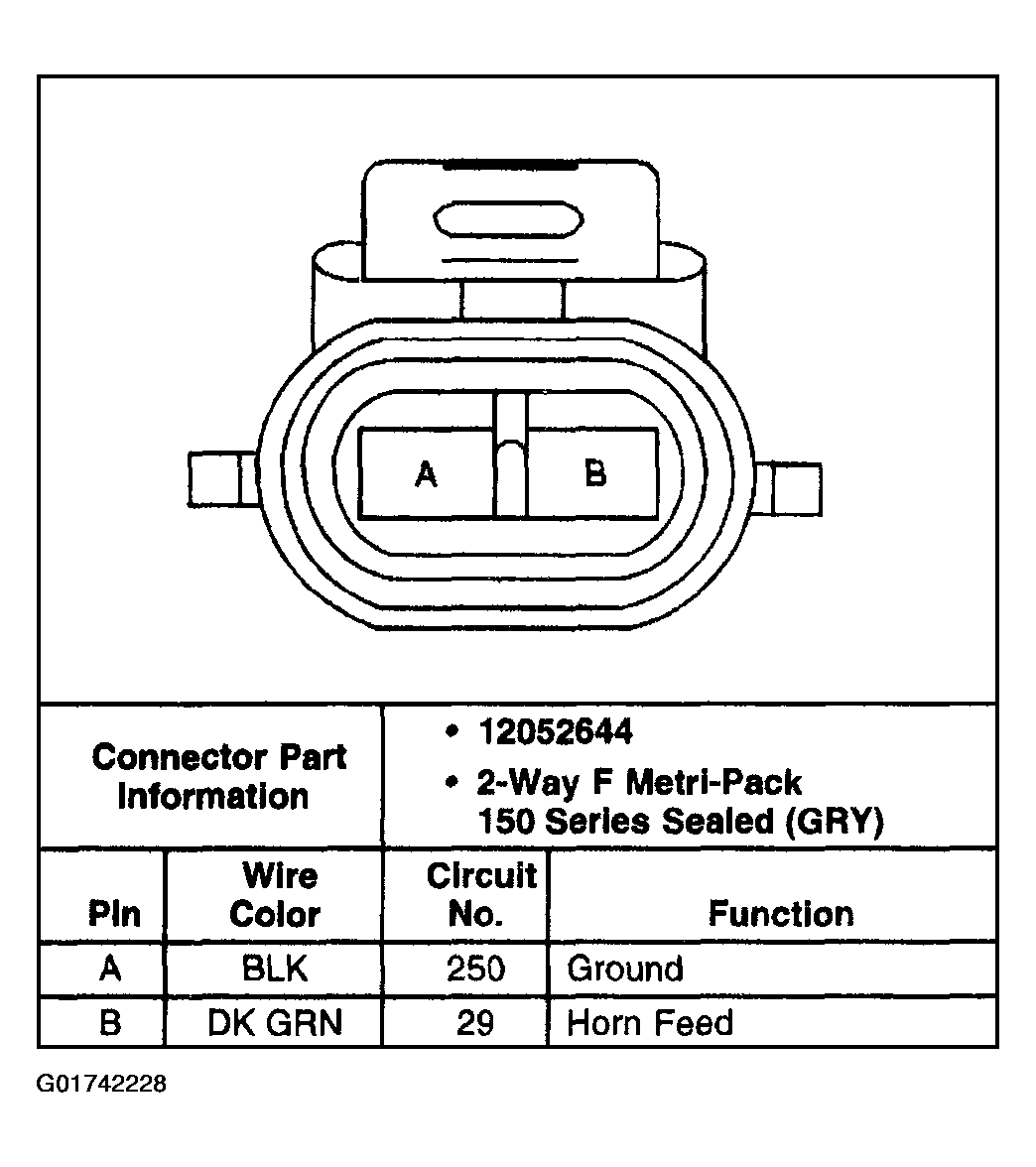

Fig 1: Horn Assembly Connector End View

G01742228

Courtesy of GENERAL MOTORS CORP.
