Steering Wheel and Column Connector End Views

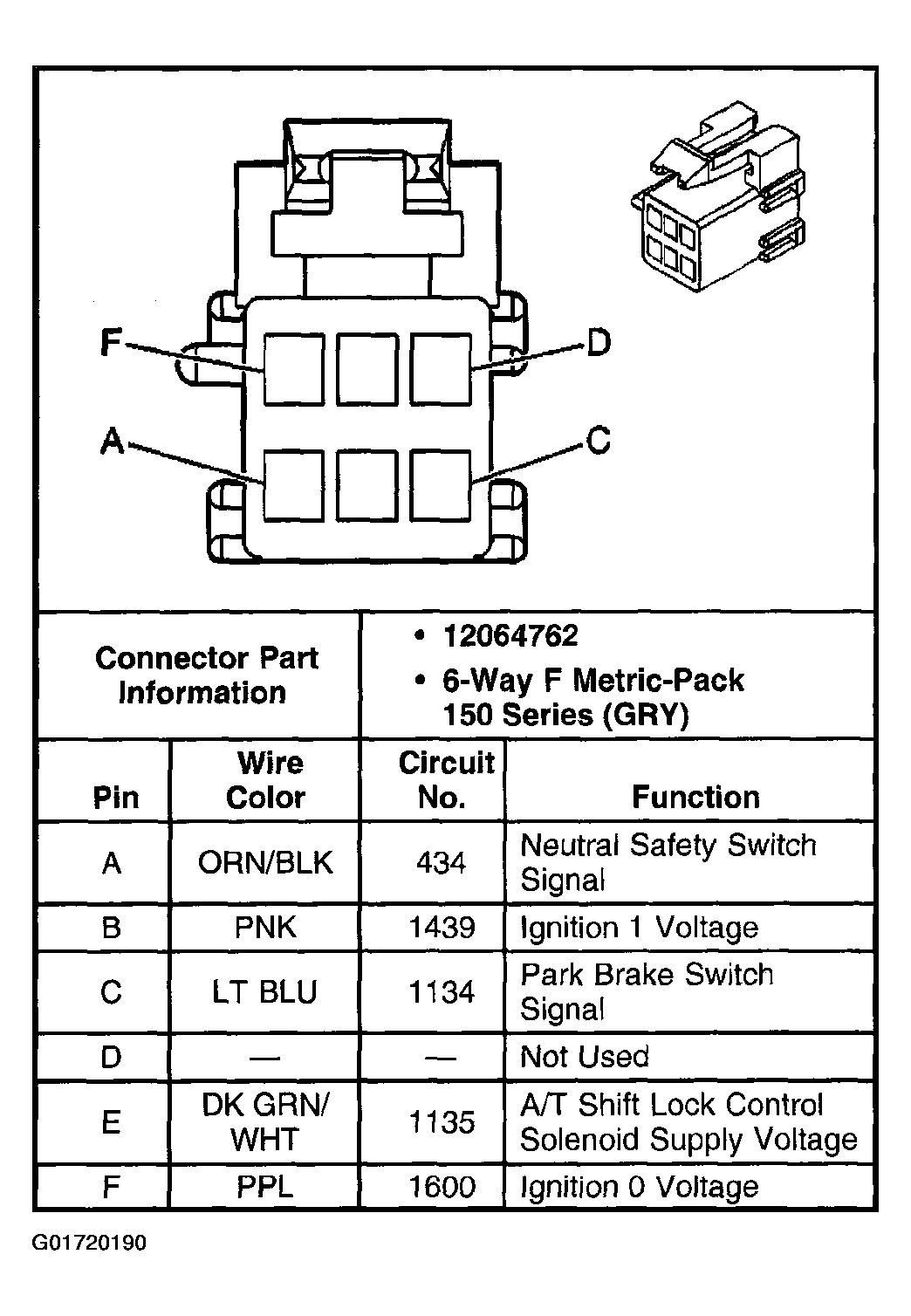

Fig 1: Automatic Transaxle Control (BTSI) Connector View
G01720190Courtesy of GENERAL MOTORS CORP.

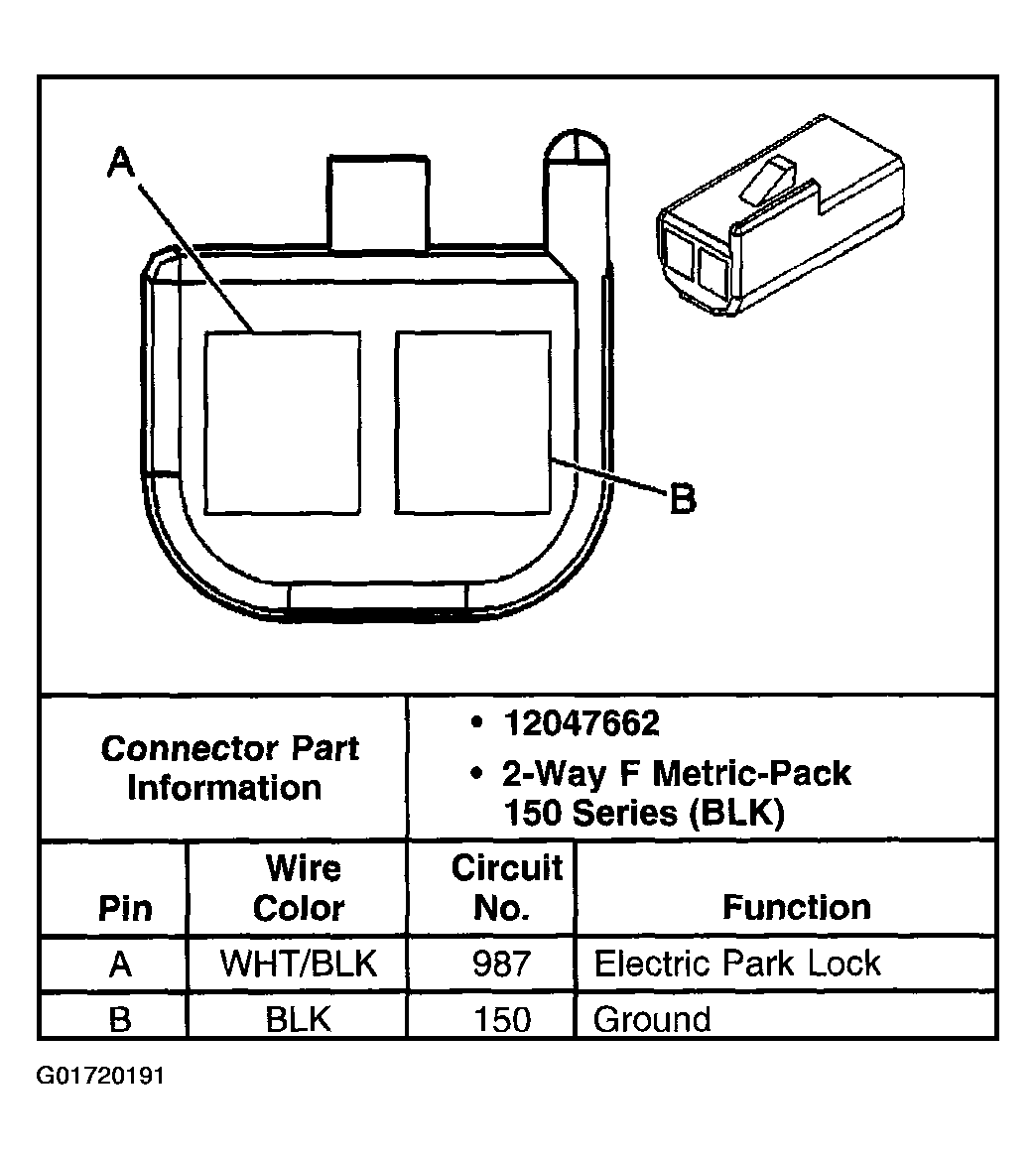

Fig 2: Electric Park Lock Connector View
G01720191Courtesy of GENERAL MOTORS CORP.
