Power Steering Pump Disassembled View (CB Series Pump)

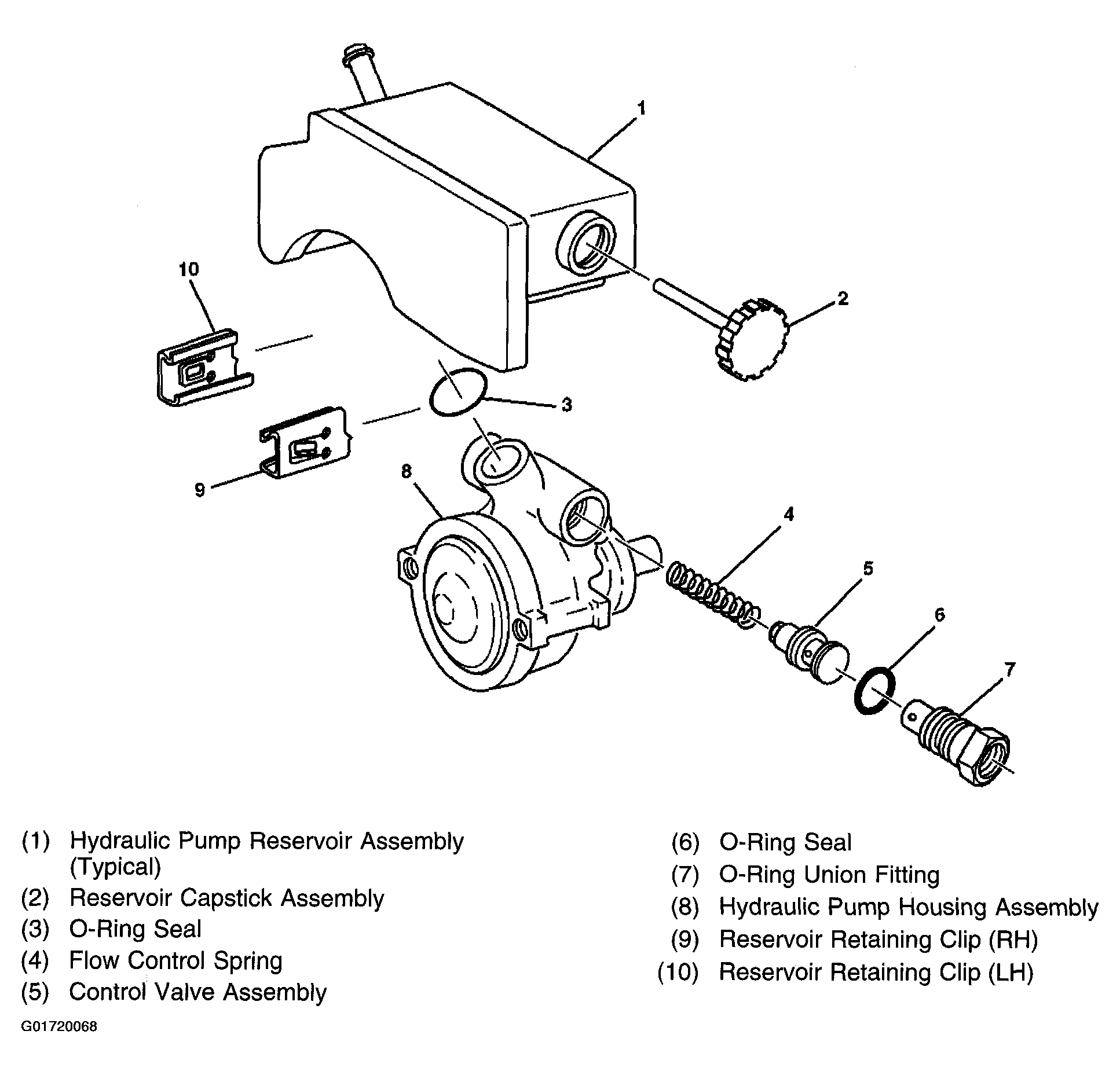

Fig 1: Power Steering Pump Assembly-CB Series Component Locations

G01720068

Courtesy of GENERAL MOTORS CORP.
