Sunroof Switch Connector End View

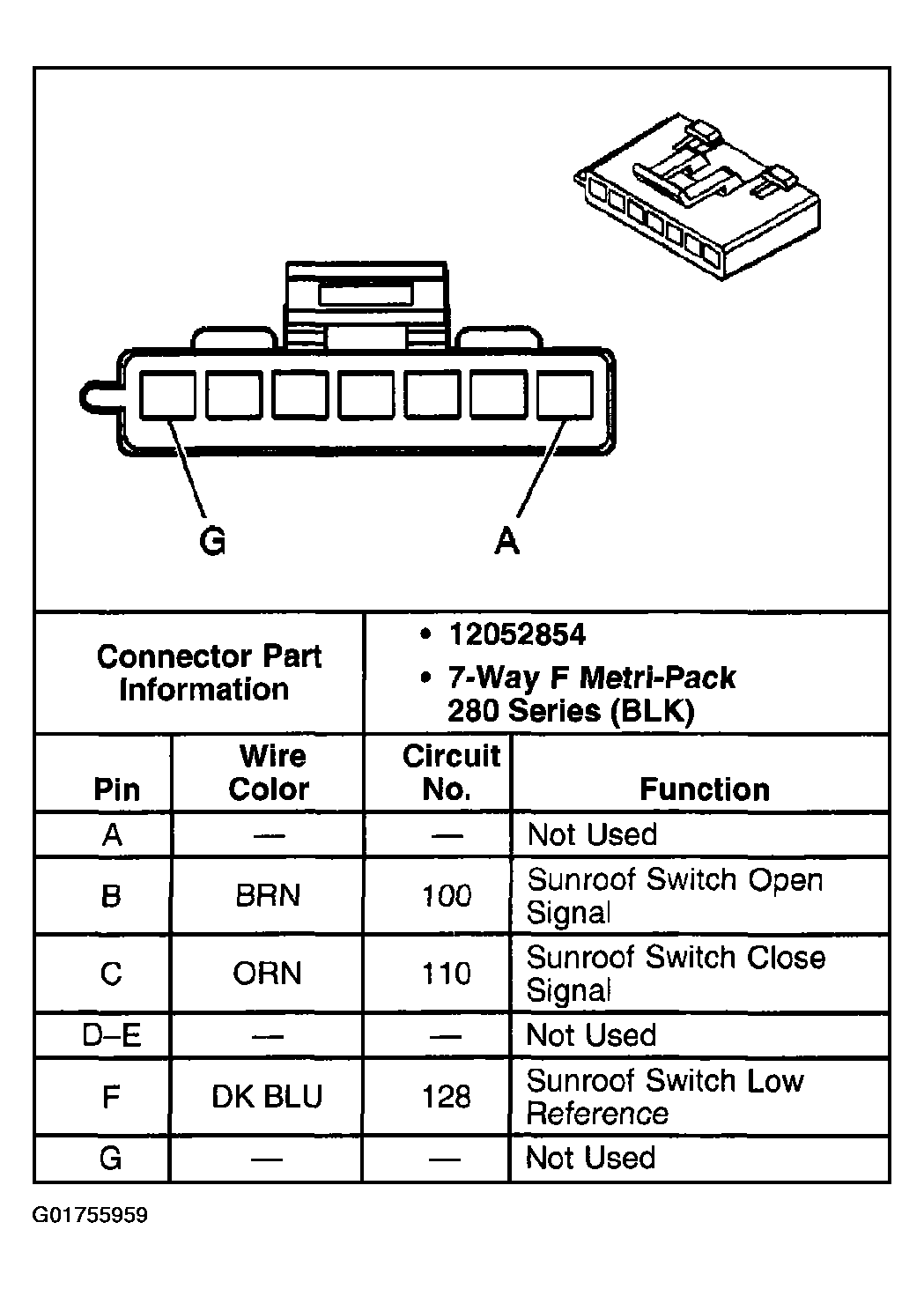

Fig 1: Sunroof Switch

G01755959

Courtesy of GENERAL MOTORS CORP.
