Test Description

The numbers below refer to the step numbers on the diagnostic table.

  1. 3. Use the scan tool to check the normal state of the ABS indicator control circuit.
  2. 4. Ensures that the Instrument Panel Cluster (IPC) can operate the ABS indicator.

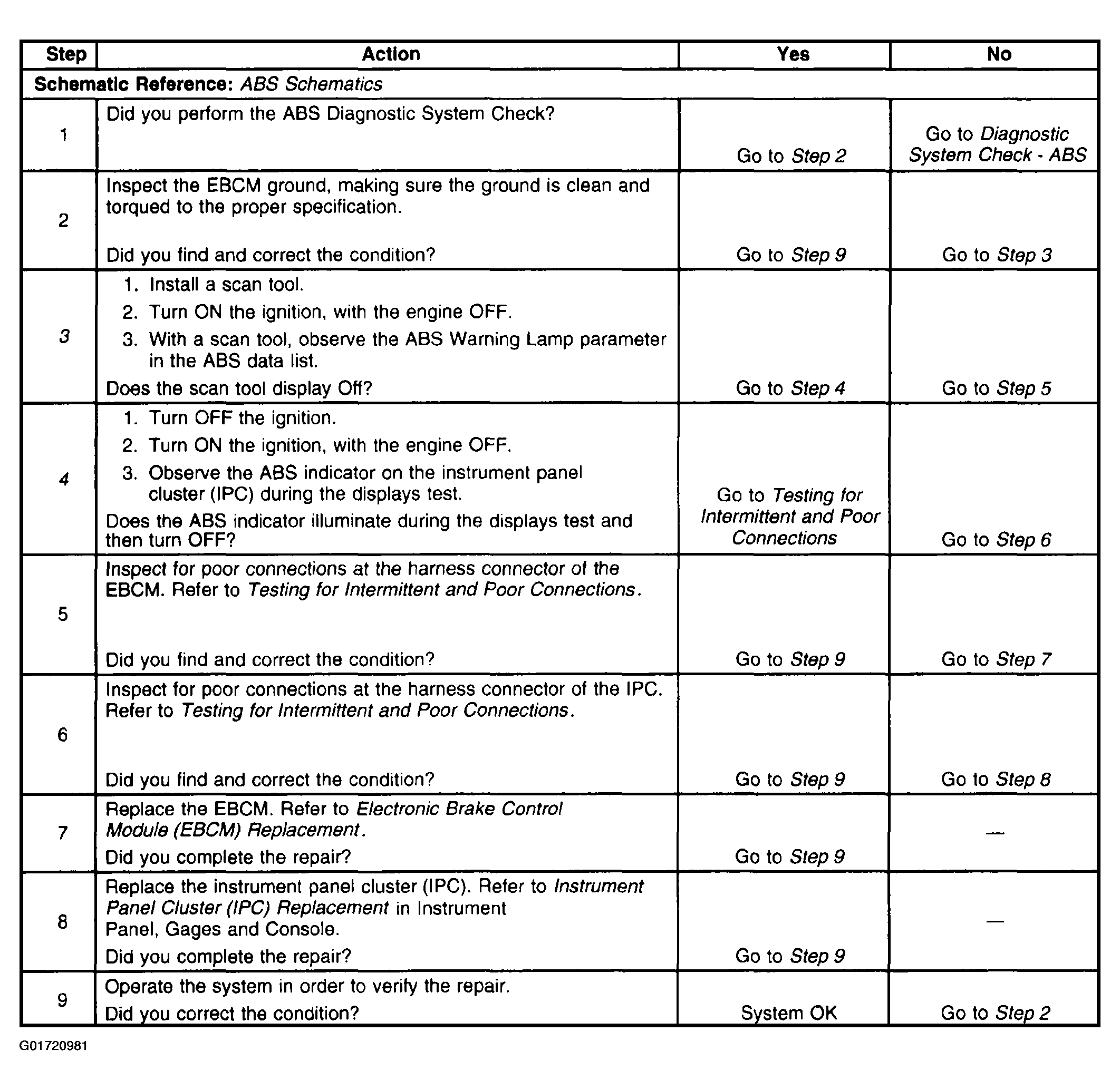

Fig 1: ABS Indicator Inoperative Testing Procedures
G01720981Courtesy of GENERAL MOTORS CORP.
