Installation Procedure

WARNING: This page is about a different car, the 2002 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.

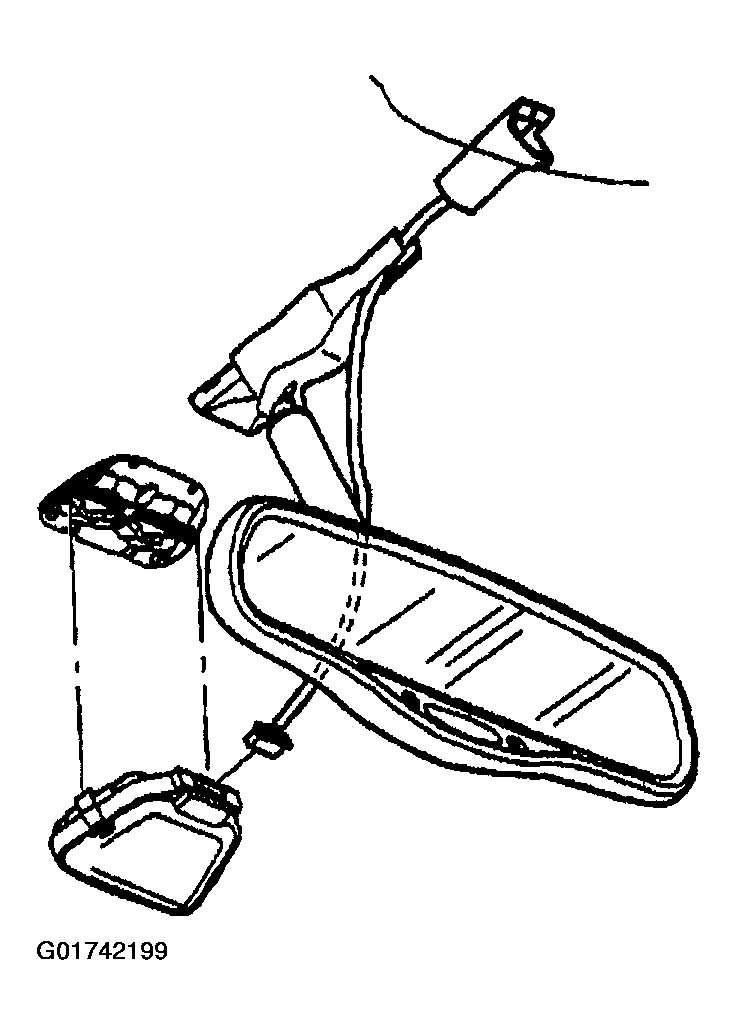

  1. Connect the electrical connector to the rain sensor module. See Figure.
  2. Install the rain sensor module in the windshield coupler.
  3. Fasten the windshield coupler clips.

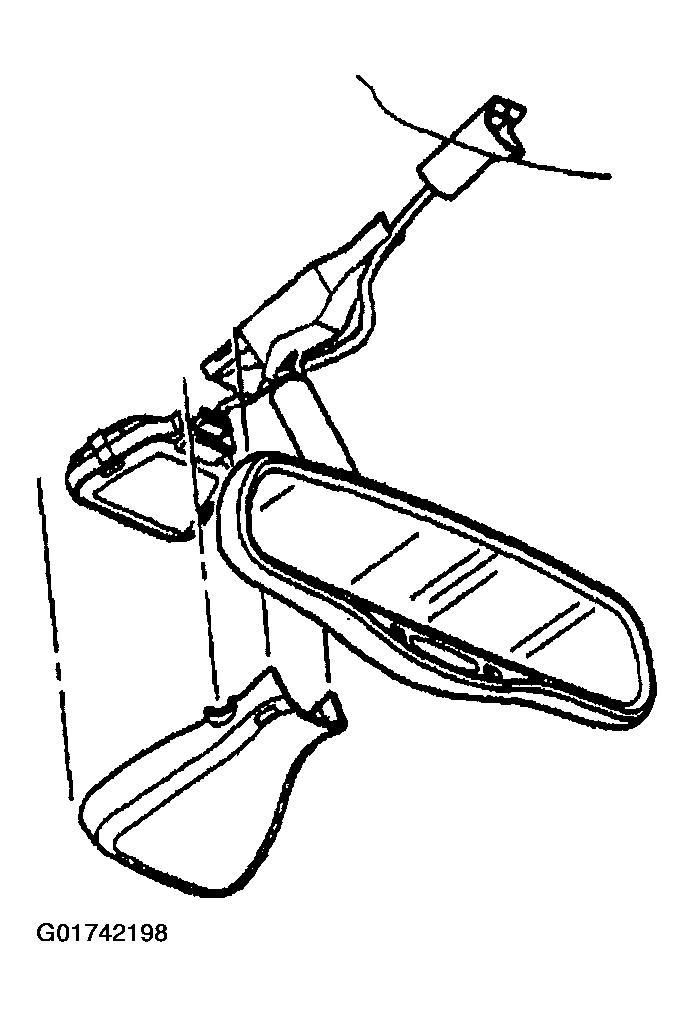

  4. Install the trim cover on the rain sensor module. See Figure.
