Installation Procedure

WARNING: This page is about a different car, the 2005 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.

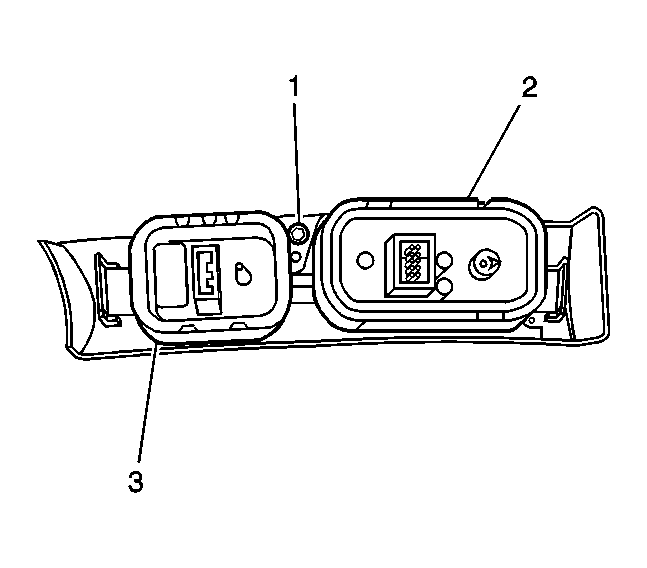

    Fig 1: View of Fastener & HUD Switch
    GM660090Courtesy of GENERAL MOTORS CORP.
  1. Install the headlamp switch (2) to the IP trim plate.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the fastener (1).

    Tighten:  Tighten the fastener to 2 N.m (18 lb in).

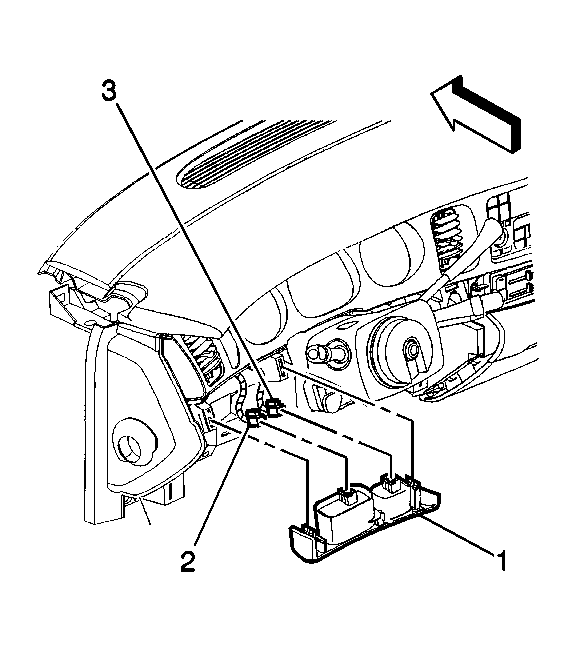

    3. Fig 2: View of Trim Plate & Electrical Connectors
    GM428497Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connectors (2, 3).
  4. Install the IP trim plate. Refer to Trim Plate Replacement - Instrument Panel (I/P) Accessory Left in Instrument Panel, Gages and Console.
