Installation Procedure

WARNING: This page is about a different car, the 2002 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the Global Positioning System (GPS) antenna coaxial cable into the retainers in the rear shelf carrier.
  2. Close the cable retainers.

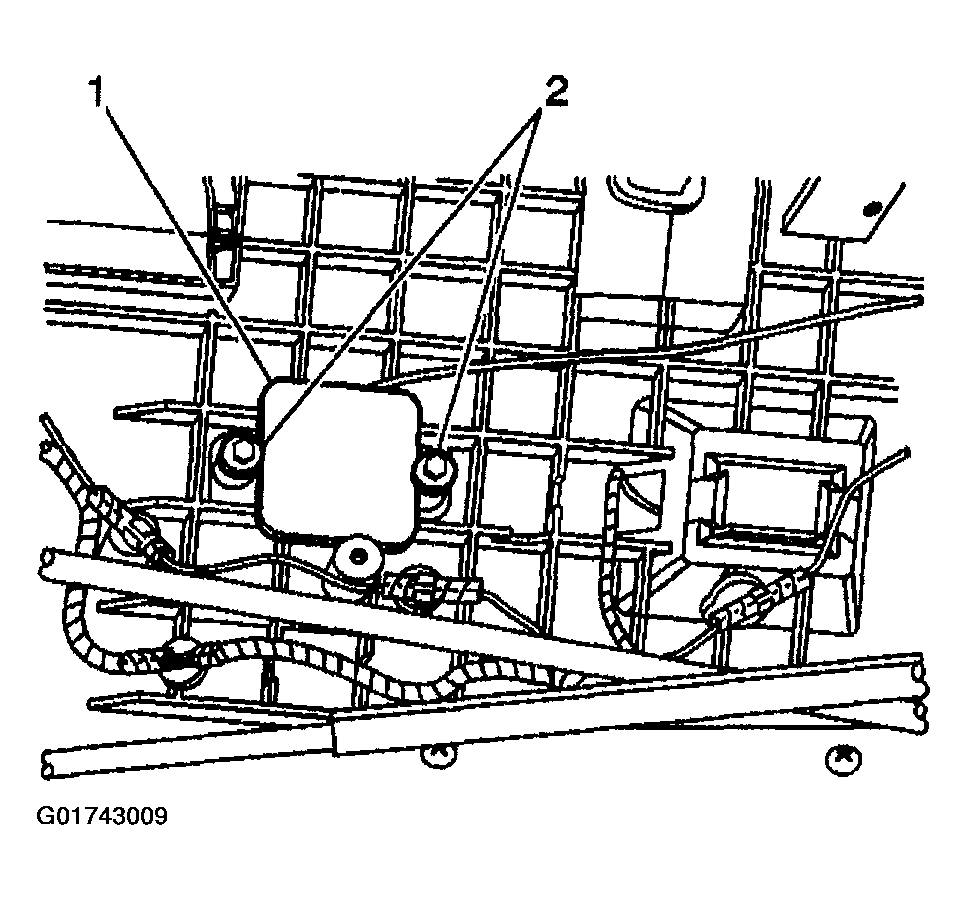

  3. Secure the GPS antenna module (1) to the rear shelf carrier with the push-in fasteners (2). See Figure.
  4. Connect the GPS antenna coaxial cable connector to the Communication Interface Module.
  5. Install the forward rear compartment trim. Refer to COMPARTMENT TRIM PANEL REPLACEMENT - REAR .
  6. Install the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR .
