Removal Procedure

WARNING: This page is about a different car, the 2002 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Do not exchange the vehicle communication interface module with other vehicles. Each vehicle communication interface module has a Specific Station Identification (STID) and Electronic Serial Number (ESN). These identification numbers are stored in the General Motors vehicle history files by VIN and are used by OnStar® and the National Cellular Telephone Network.
  1. Remove the rear compartment trim. Refer to COMPARTMENT TRIM PANEL REPLACEMENT - REAR in Body Rear End.
  2. Disconnect the antenna (2) and electrical connections (3) from the Vehicle Communication Interface Module (VCIM) (4).
  3. Release the VCIM retaining tabs (1).
  4. Slide the vehicle VCIM (4) out of the electrical component mounting bracket.

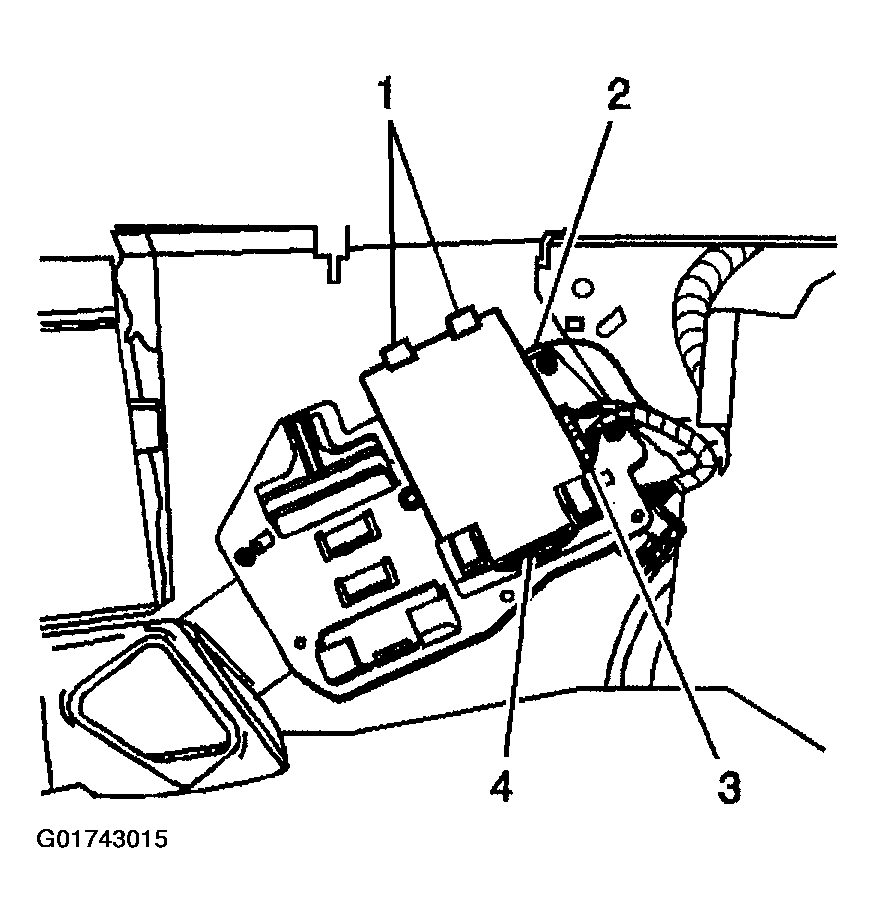

Fig 1: Removing VCIM
G01743015Courtesy of GENERAL MOTORS CORP.
