Century, Grand PRIX & Regal

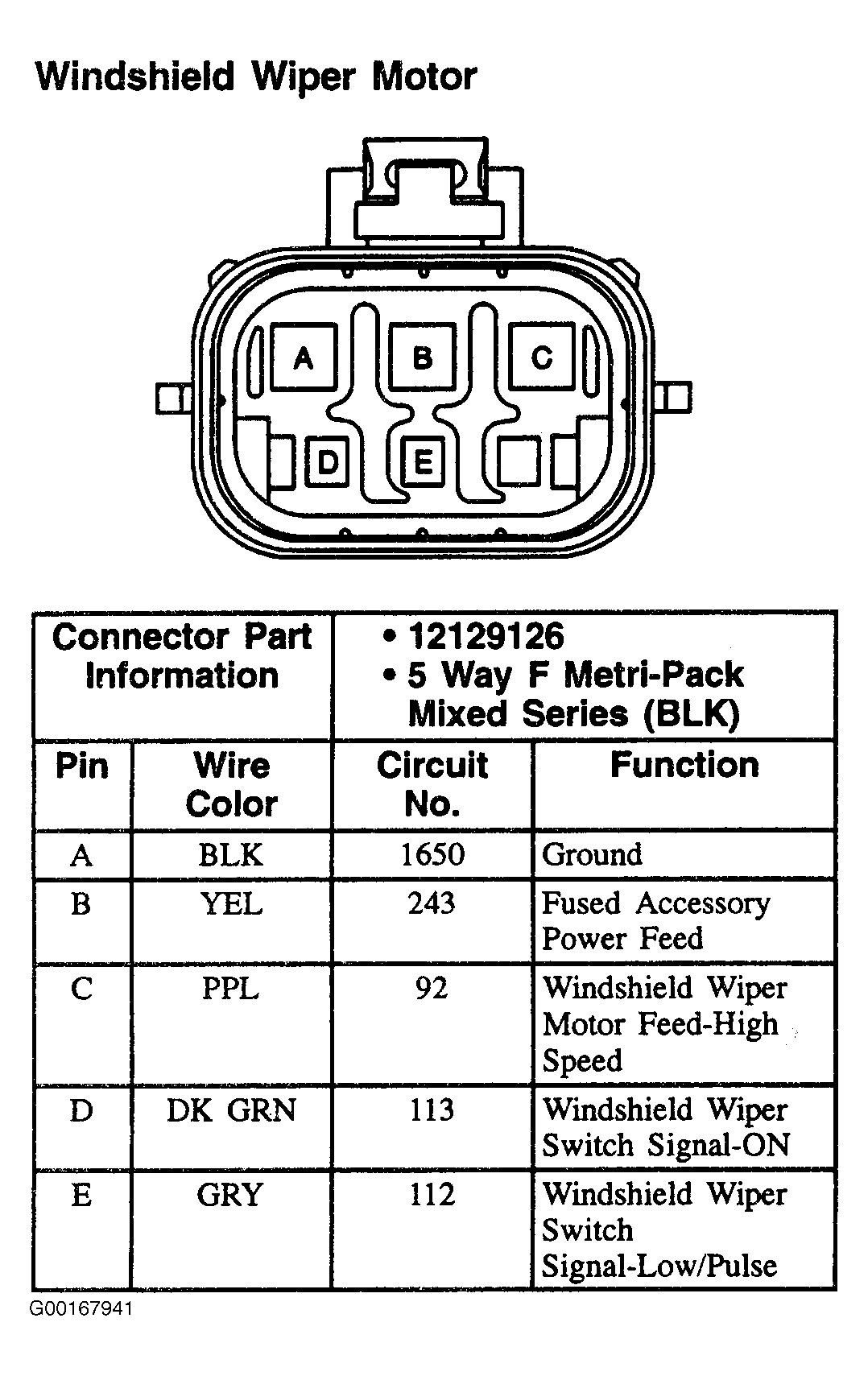

Fig 1: Windshield Wiper Motor (Century, Grand Prix & Regal) - 5-Pin Connector (Black)

G00167941

Courtesy of GENERAL MOTORS CORP.
