Left Hand - A/C Front, Automatic Temperature Control

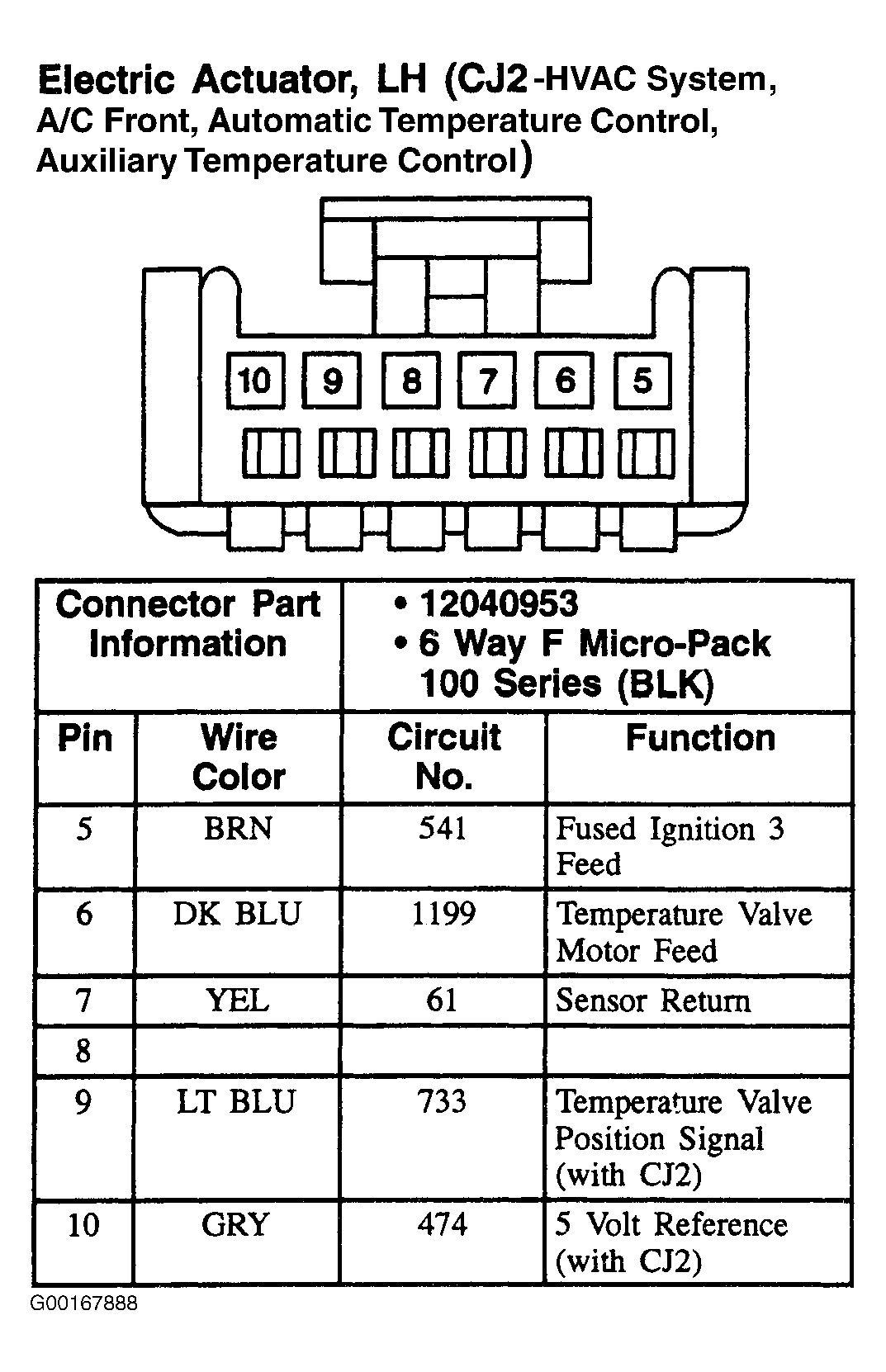

Fig 1: Electric Actuator, Left Hand (CJ2 - HVAC System, A/C Front, Automatic Temperature Control, Auxiliary Temperature Control) (Grand Prix) - 6-Pin Connector (Black)
G00167888Courtesy of GENERAL MOTORS CORP.
