Blower Motor Control Module C1

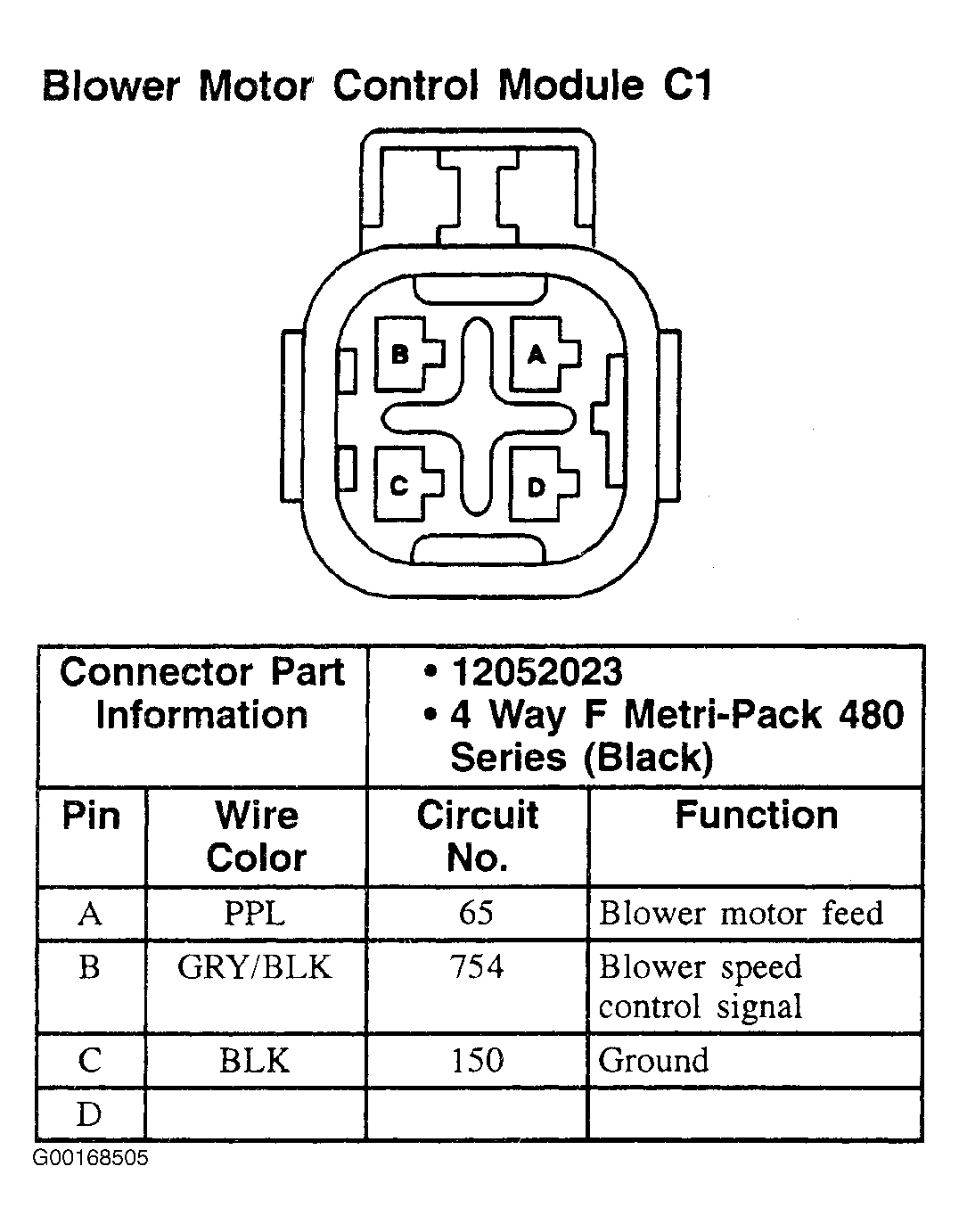

Fig 1: Blower Motor Control Module C1 (Cutlass Supreme, Lumina & Monte Carlo) - 4-Pin Connector (Black)

G00168505

Courtesy of GENERAL MOTORS CORP.
