Section 6E - Revised Diagnostic Table For DTC P0122 (61-65-52)

Publication date: 1996-11-01
Reference number: 61-65-52

SECTION 6E - REVISED DIAGNOSTIC TABLE FOR DTC P0122

TECHNICAL SERVICE BULLETIN

Reference Number(s): 61-65-52

SECTION 6E, ENGINE CONTROLS - REVISED DIAGNOSTIC TABLE FOR DTC PO122

Model(s): 1996 Buick Roadmaster

1996 Chevrolet Caprice, Impala SS Section: 6E - Engine Fuel & Emission Bulletin No.: 61-65-52 Date: November, 1996

NOTE: This is a Service Manual Update.

VEHICLES AFFECTED

1996 Buick Roadmaster and 1996 Chevrolet Caprice and Impala SS with 4.3L and 5.7L engines (VINs W, P - RPOs L99, LT1).

SERVICE INFORMATION

This bulletin is being issued to revise Diagnostic Trouble Code PO122 TP Sensor Low Voltage table for the 1996 B Platform Service Manual. See Fig 1 thru Fig 4 .

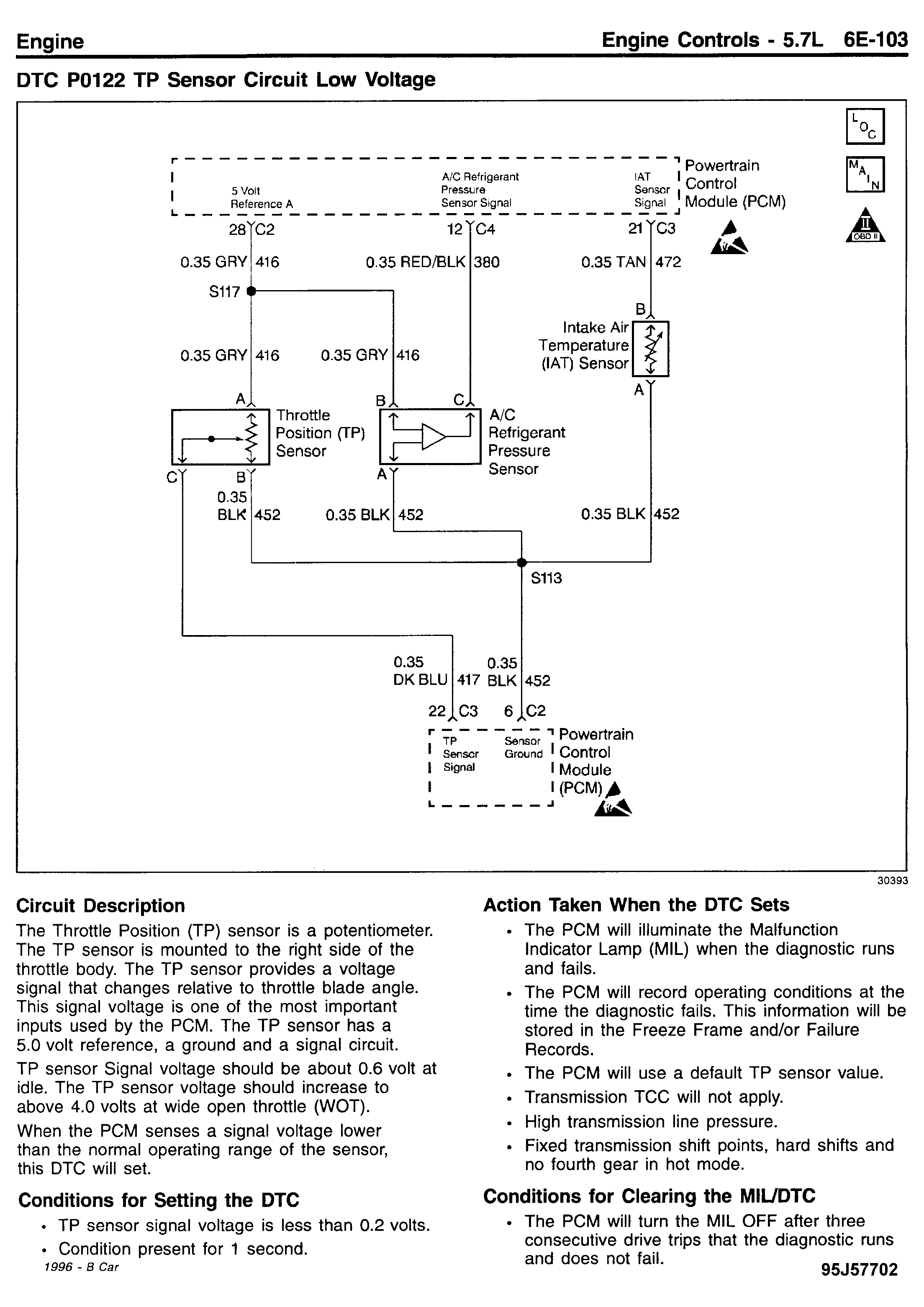

Fig 1: 1996 B Platform Service Manual Update - 5.7L, Page 6E-103

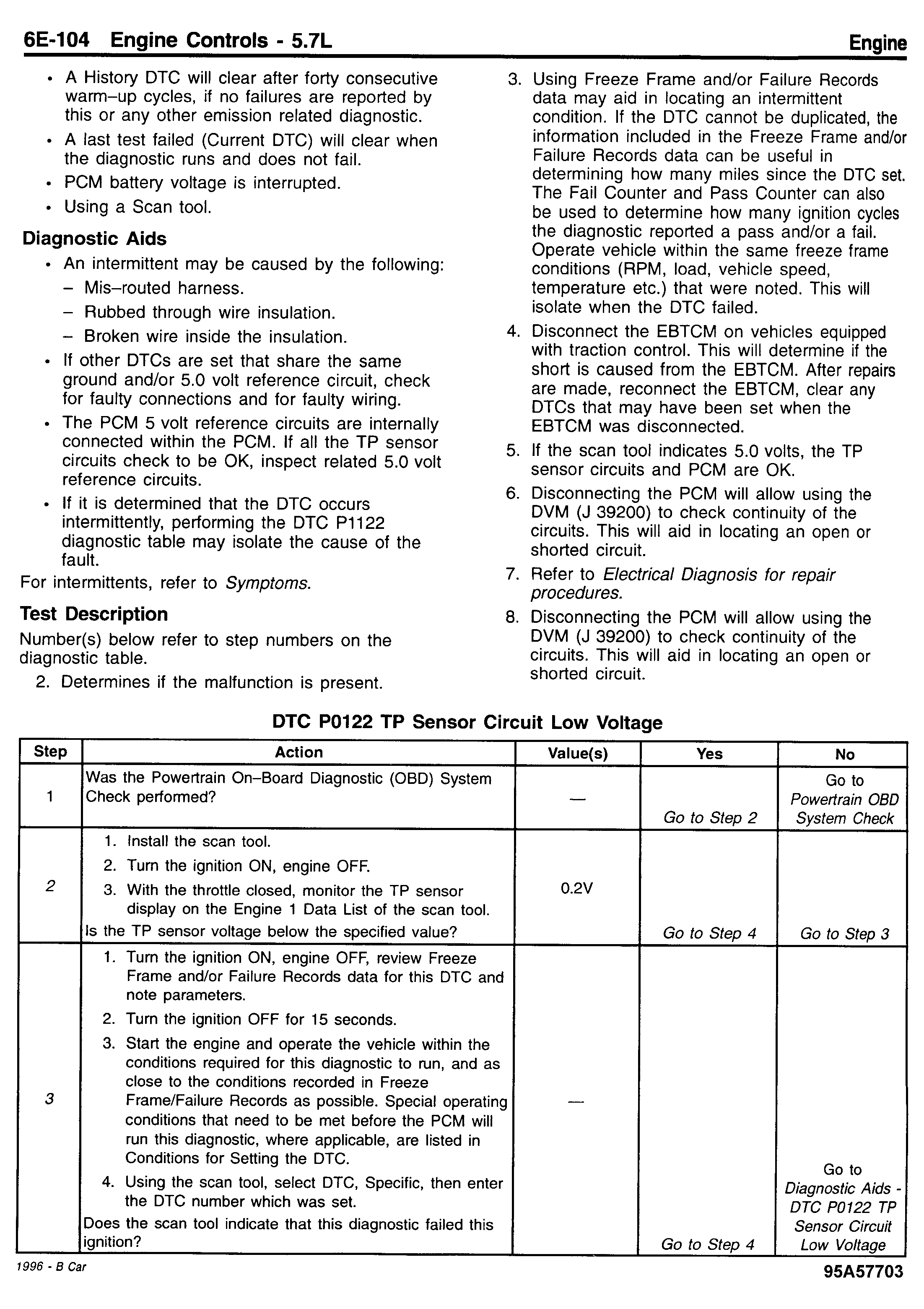

Fig 2: 1996 B Platform Service Manual Update - 5.7L, Page 6E-104

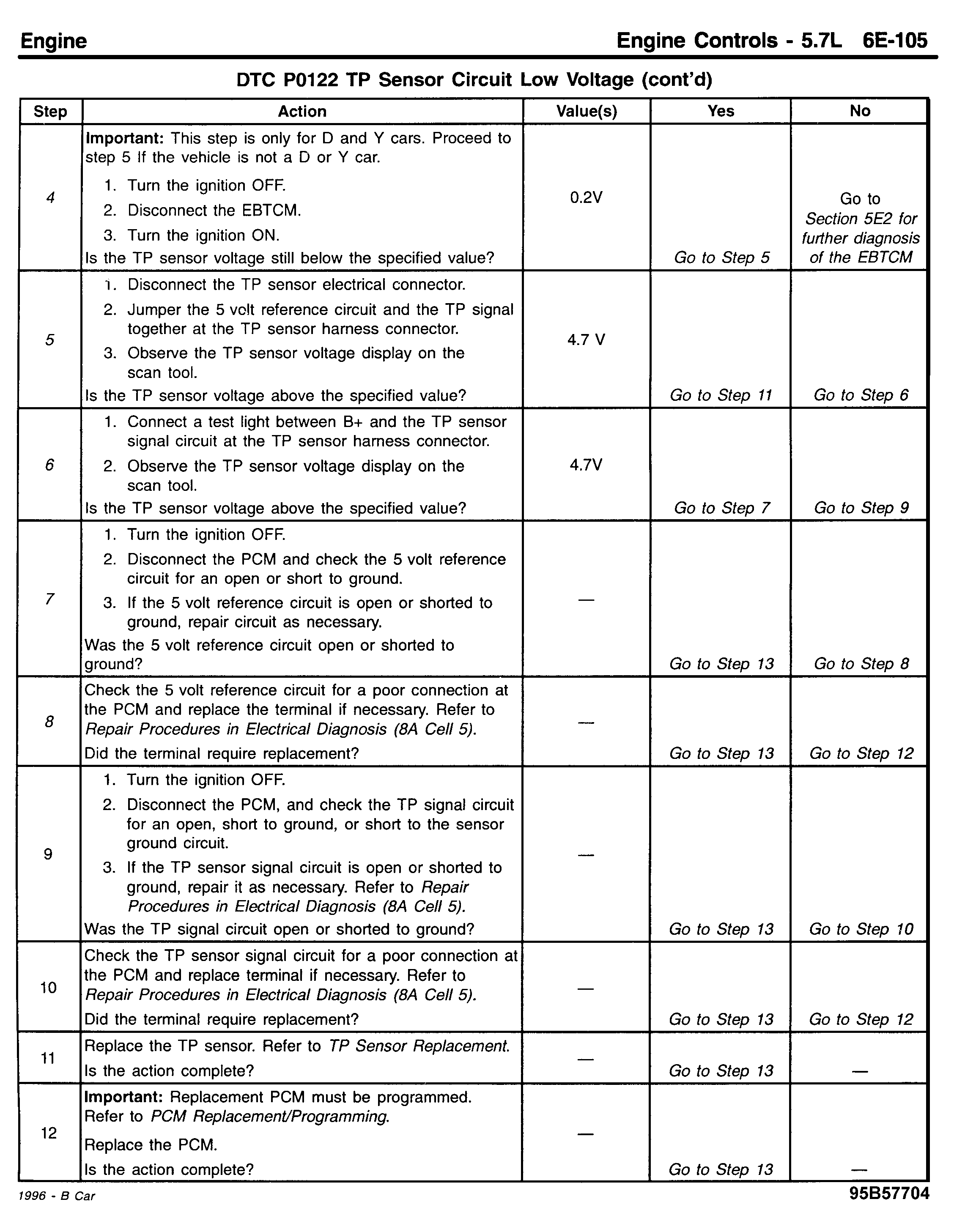

Fig 3: 1996 B Platform Service Manual Update - 5.7L, Page 6E-105

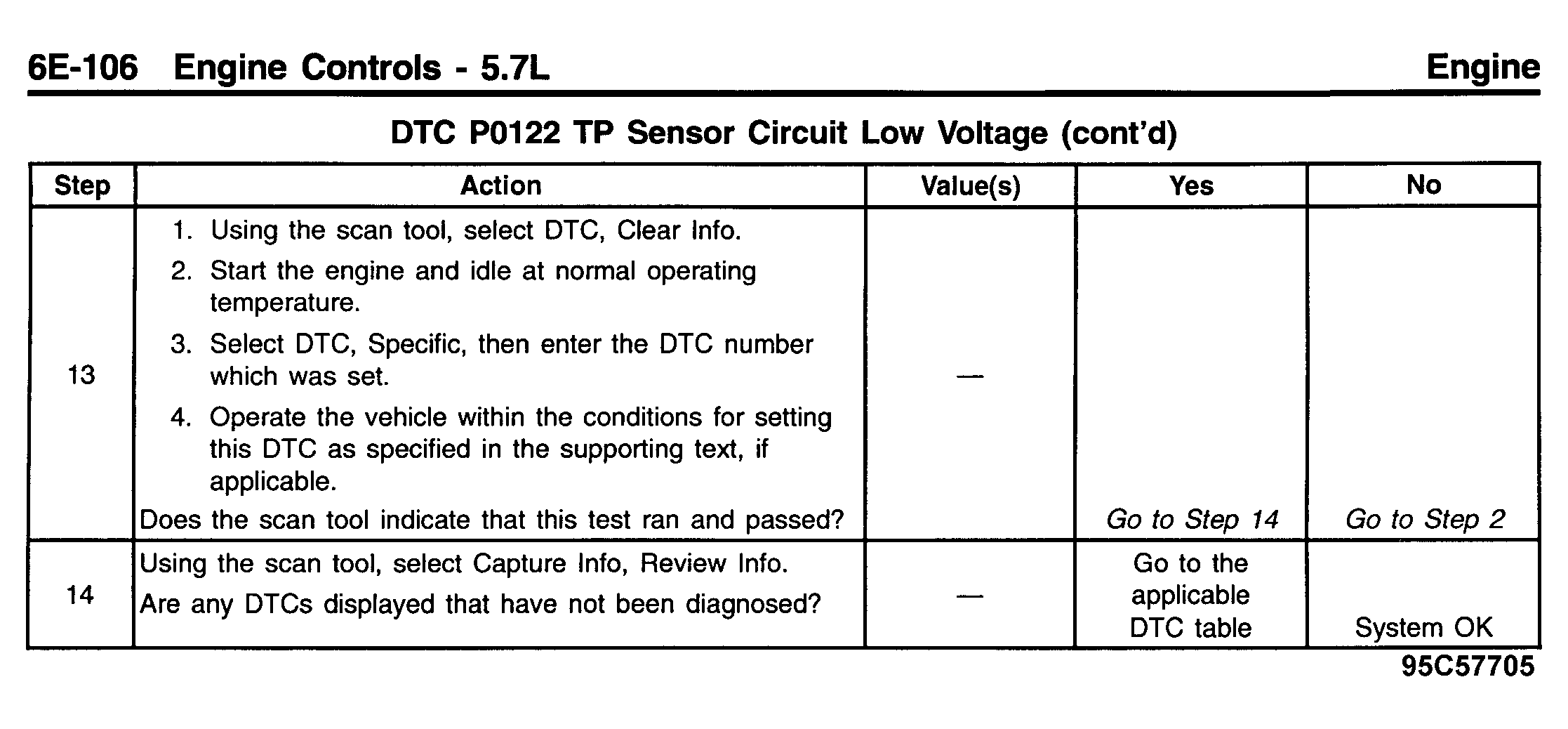

Fig 4: 1996 B Platform Service Manual Update - 5.7L, Page 6E-106
