Diagnostic Aids

If test failed on this ignition cycle, wiggle related electrical harness connectors while monitoring scan tool.

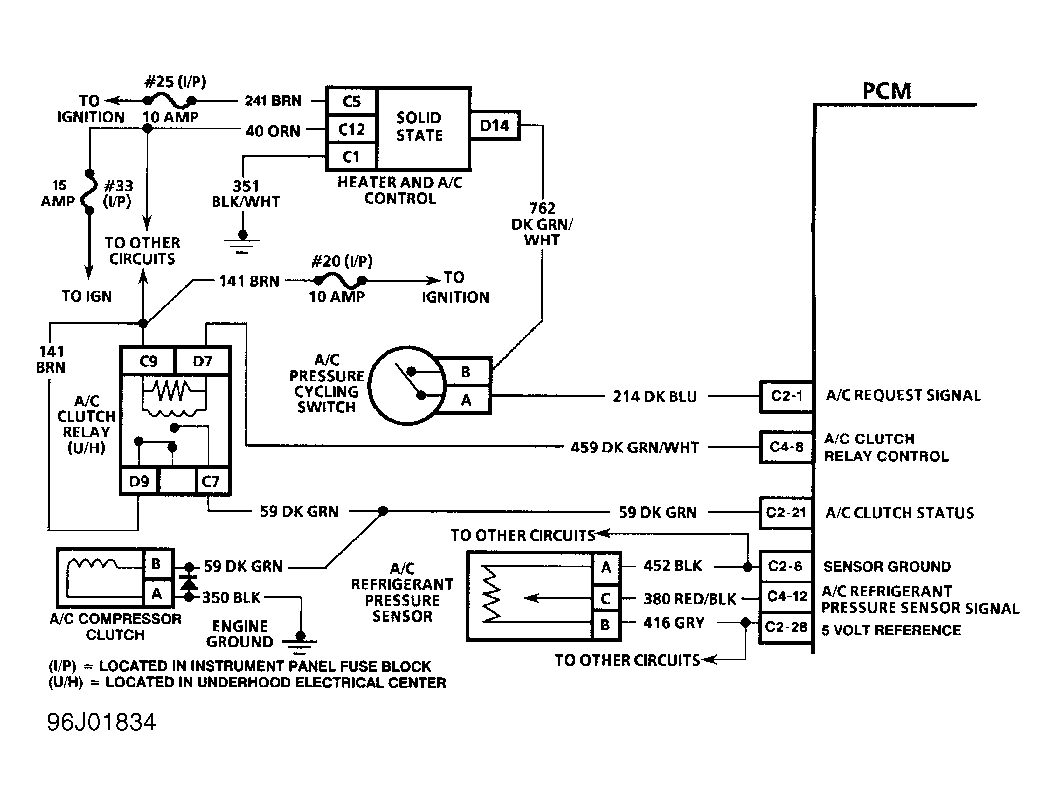

Fig 1: DTC P0530 Schematic - Fleetwood

Courtesy of GENERAL MOTORS CORP.

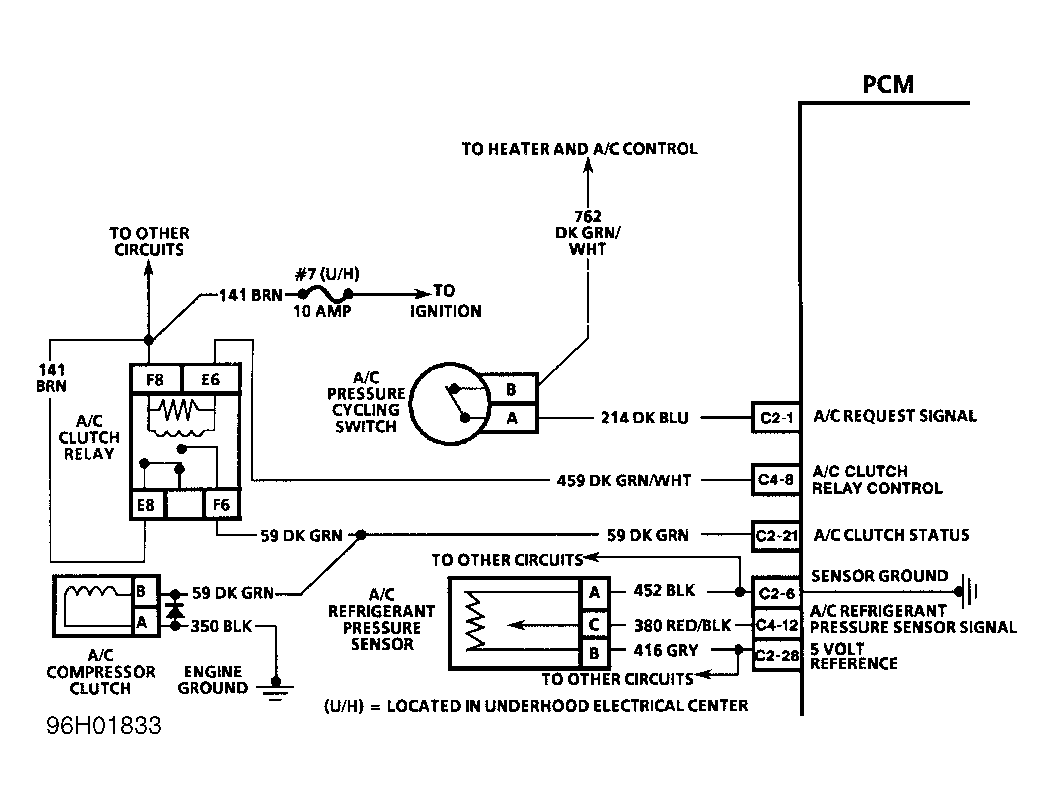

Fig 2: DTC P0530 Schematic - Except Fleetwood

Courtesy of GENERAL MOTORS CORP.
