Class 1 Serial Data Line Diagnosis

To perform diagnosis, see Fig 1 and Fig 2 .

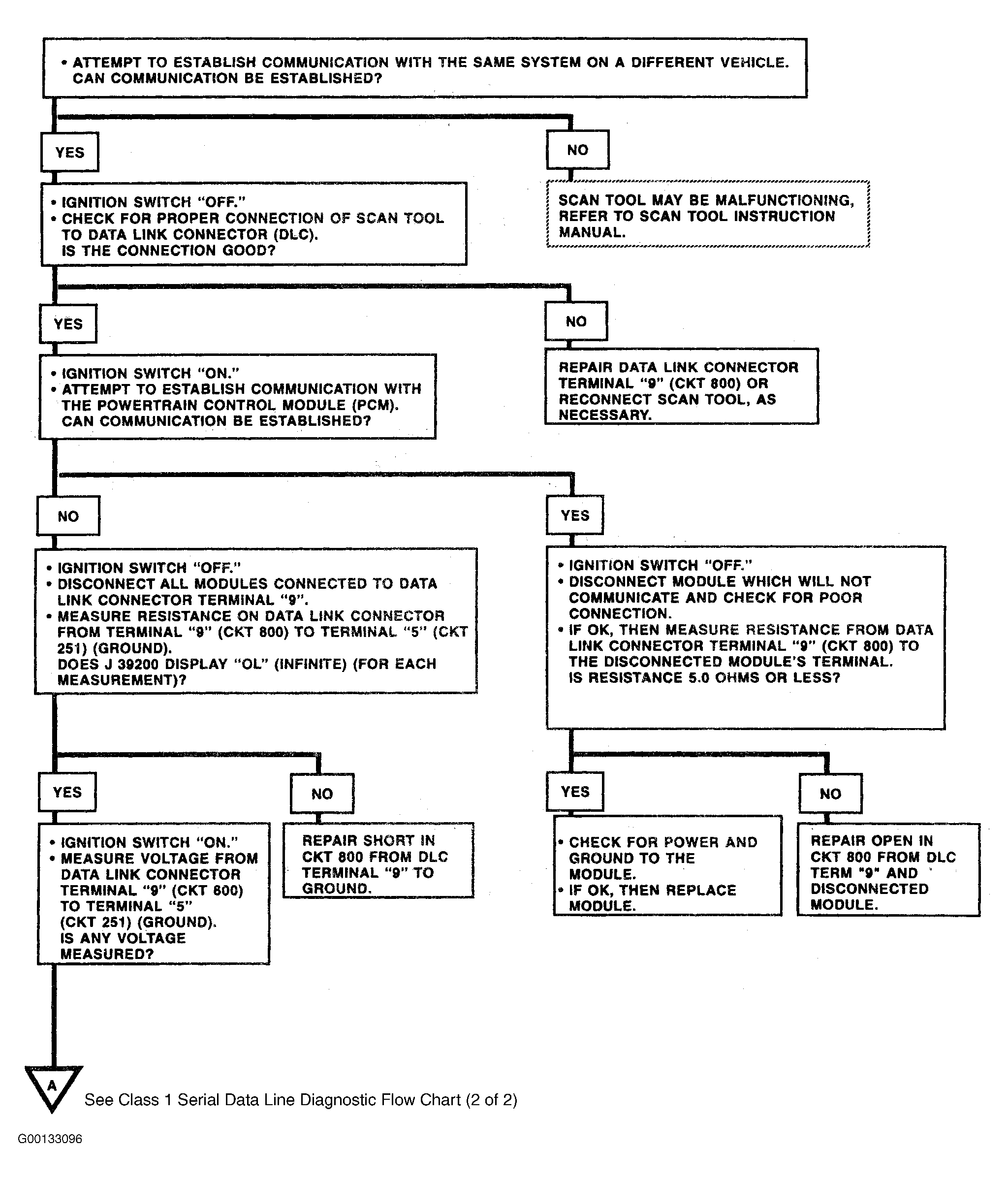

Fig 1: Class 1 Serial Data Line Diagnostic Flowchart (1 Of 2)
G00133096Courtesy of GENERAL MOTORS CORP.
Fig 2: Class 1 Serial Data Line Diagnostic Flowchart (2 Of 2)
G00133097Courtesy of GENERAL MOTORS CORP.
