Connector Identification

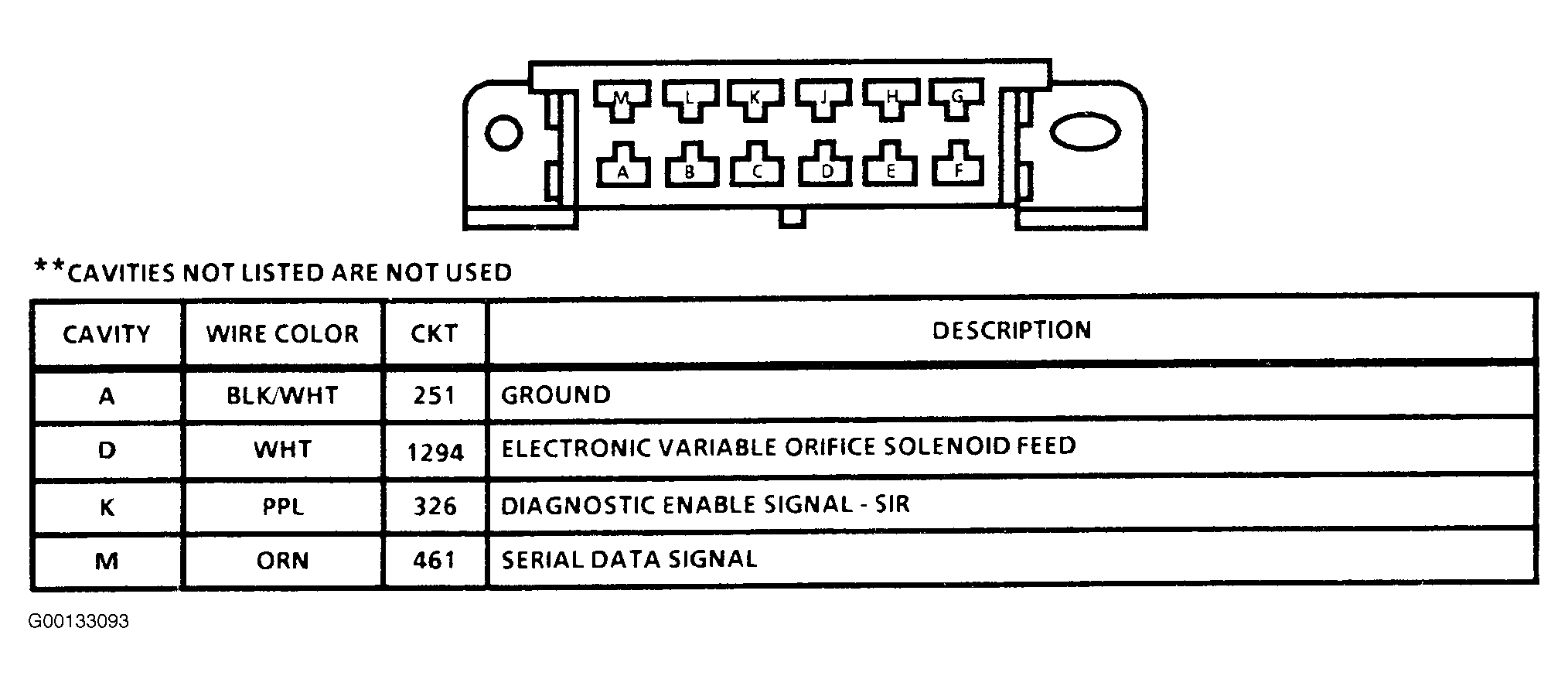

Fig 1: Data Link Connector Pin Identification

G00133093

Courtesy of GENERAL MOTORS CORP.
