Test F: Window Motor Test

To perform test procedure, see Fig 1 .

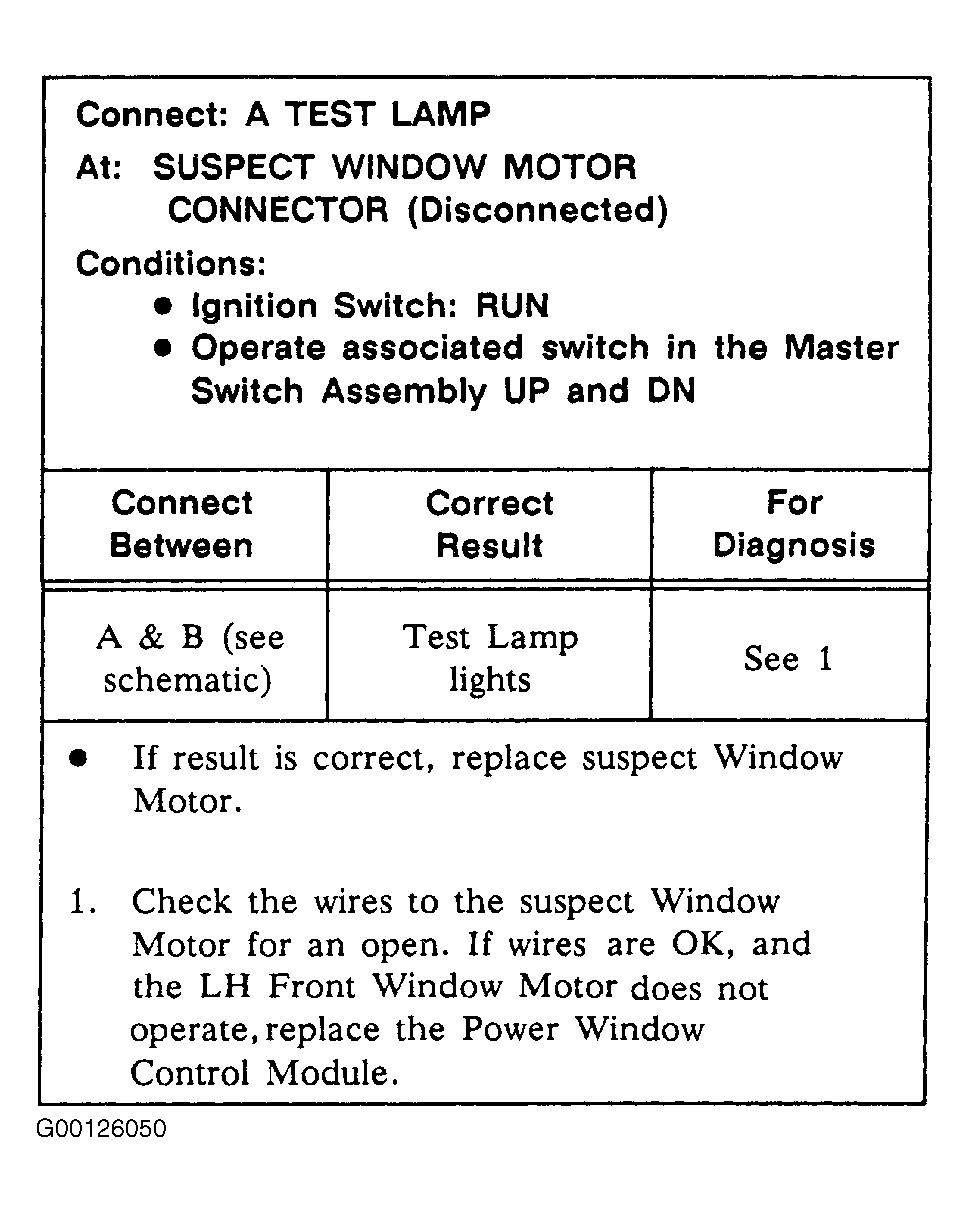

Fig 1: Test F: Window Motor Test

G00126050

Courtesy of GENERAL MOTORS CORP.
