Test E: Right Front Window Switch Test

To perform test procedure, see Fig 1 .

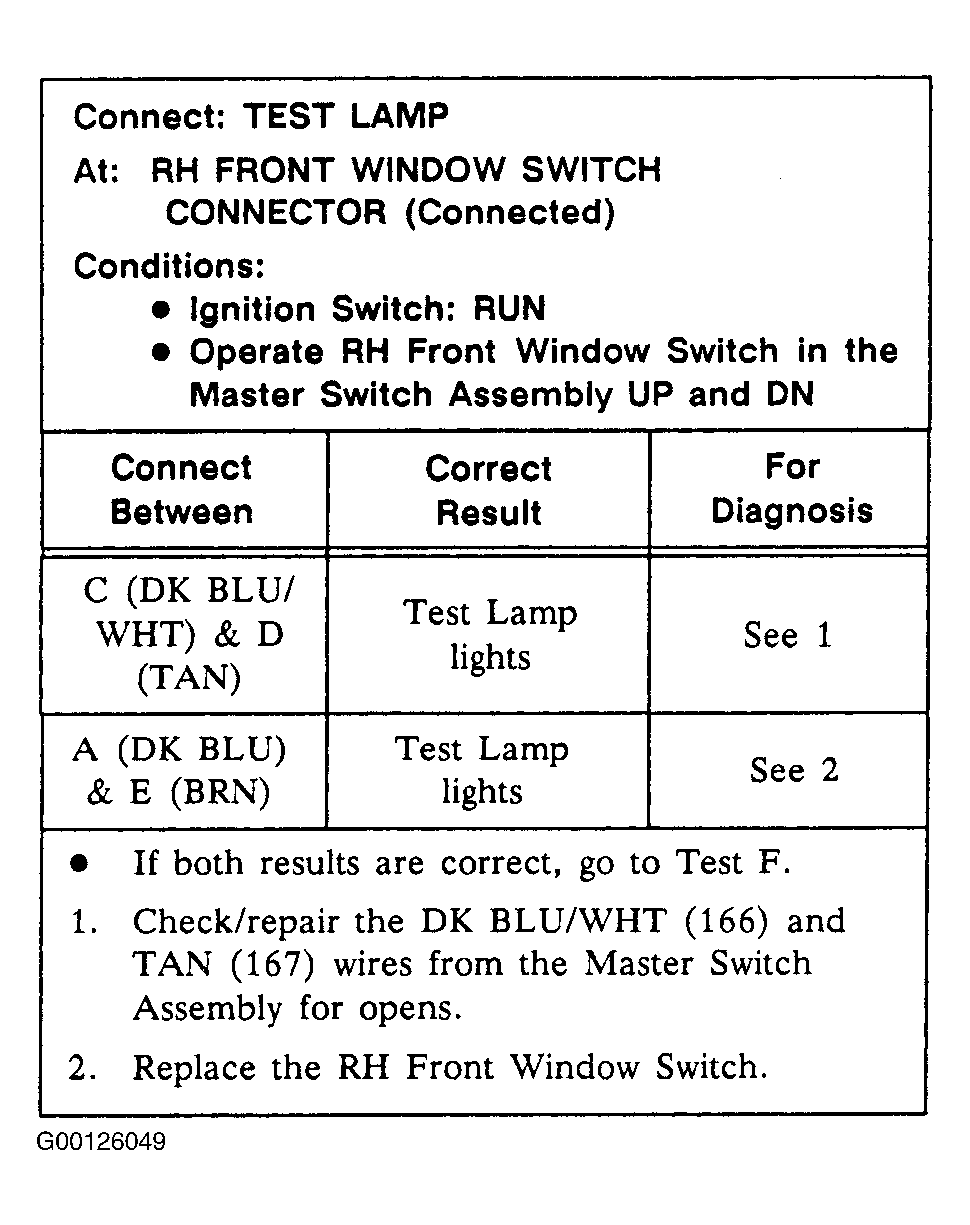

Fig 1: Test E: Right Front Window Switch Test

G00126049

Courtesy of GENERAL MOTORS CORP.
