Test D: Rear Window Switch Test

To perform test procedure, see Fig 1 .

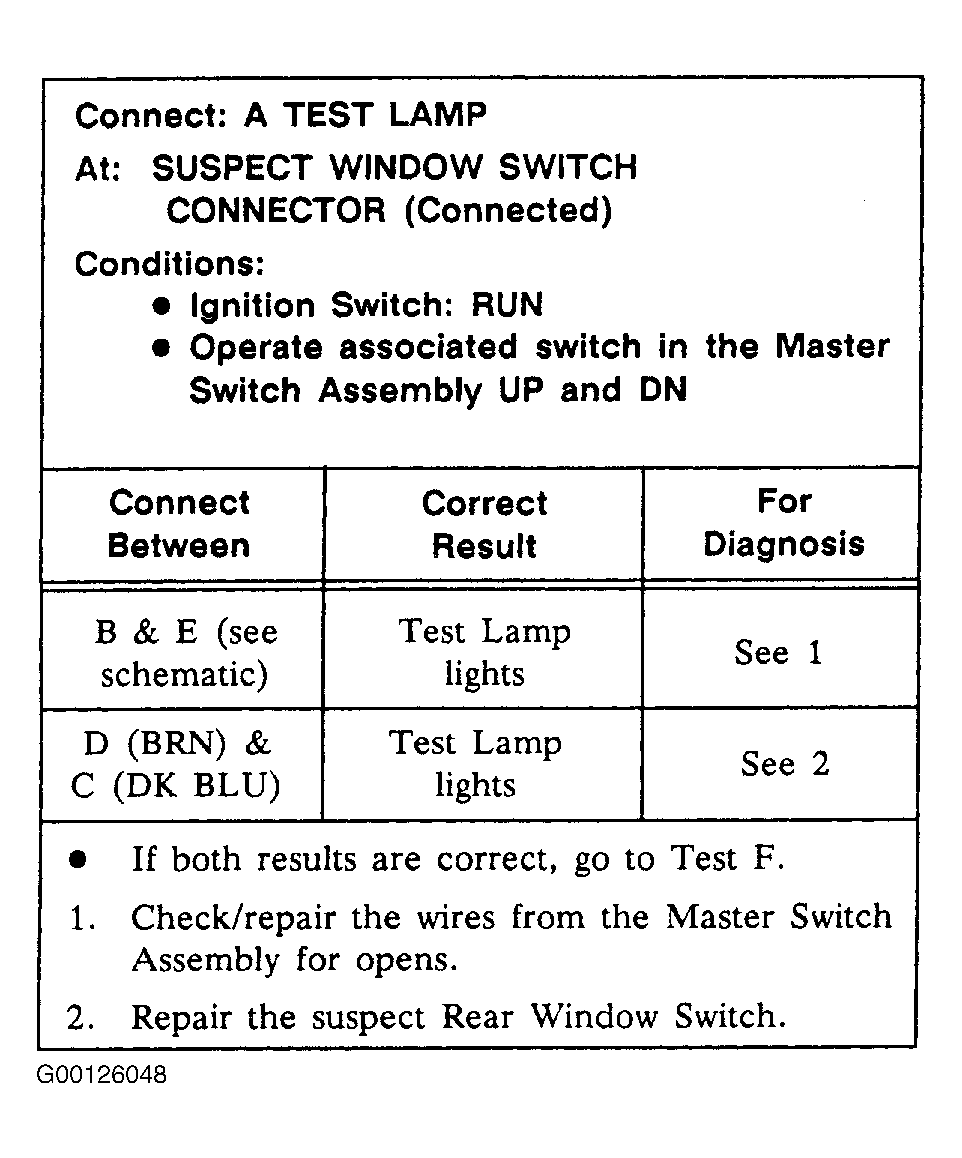

Fig 1: Test D: Rear Window Switch Test

G00126048

Courtesy of GENERAL MOTORS CORP.
