Wiring Diagrams

Fig 1: ABS Wiring Diagram (1991 General Motors B-Body Cars)

G91H11319

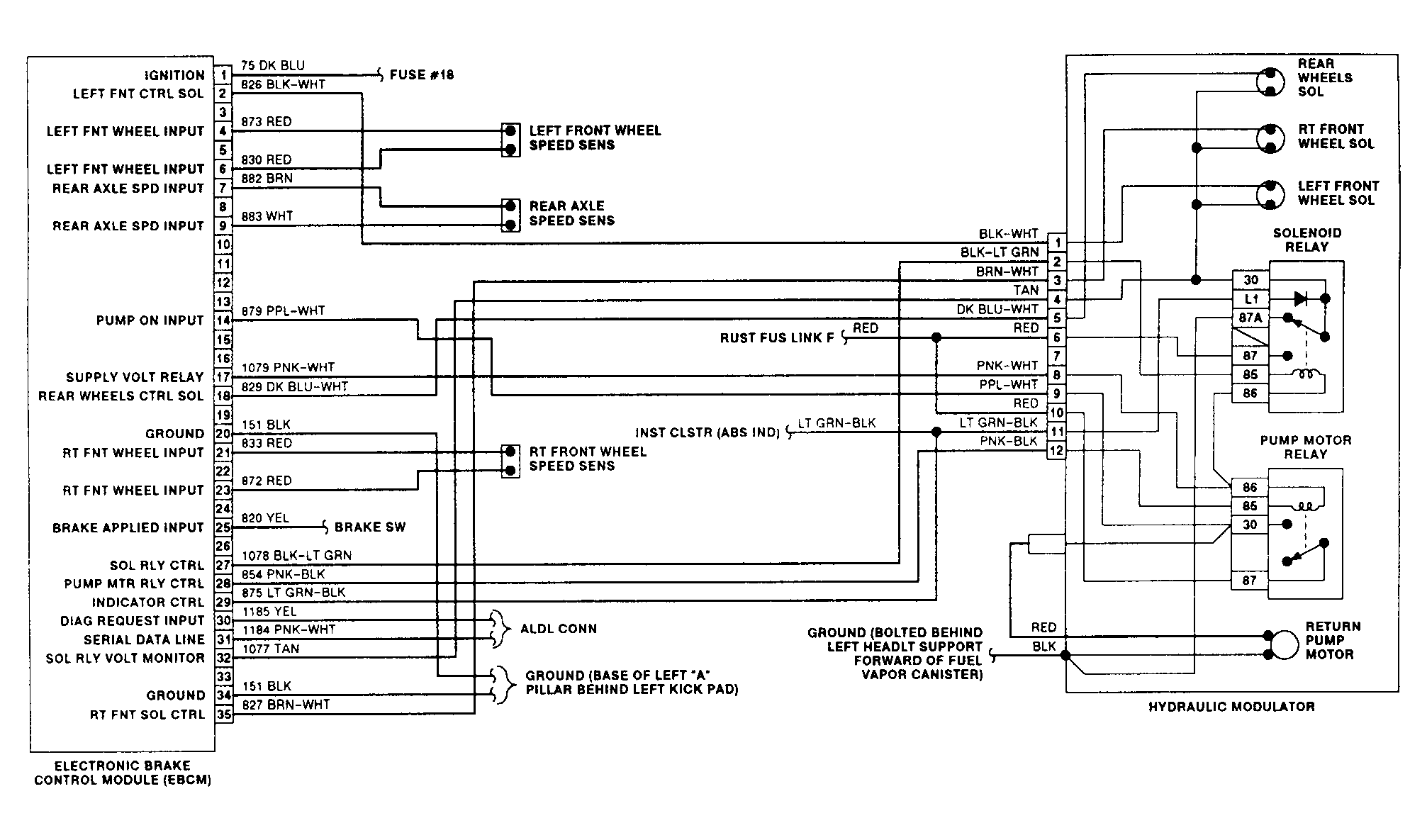

Fig 2: ABS Wiring Diagram (1992 General Motors B-Body Cars)

G92J04922
