Pressure Modulator Valve (PMV) Assembly: Installation

To install, reverse removal procedure. Tighten bolts to specification. See TORQUE SPECIFICATIONS  . Fill reservoir with fluid, and bleed system. See BLEEDING BRAKE SYSTEM  .

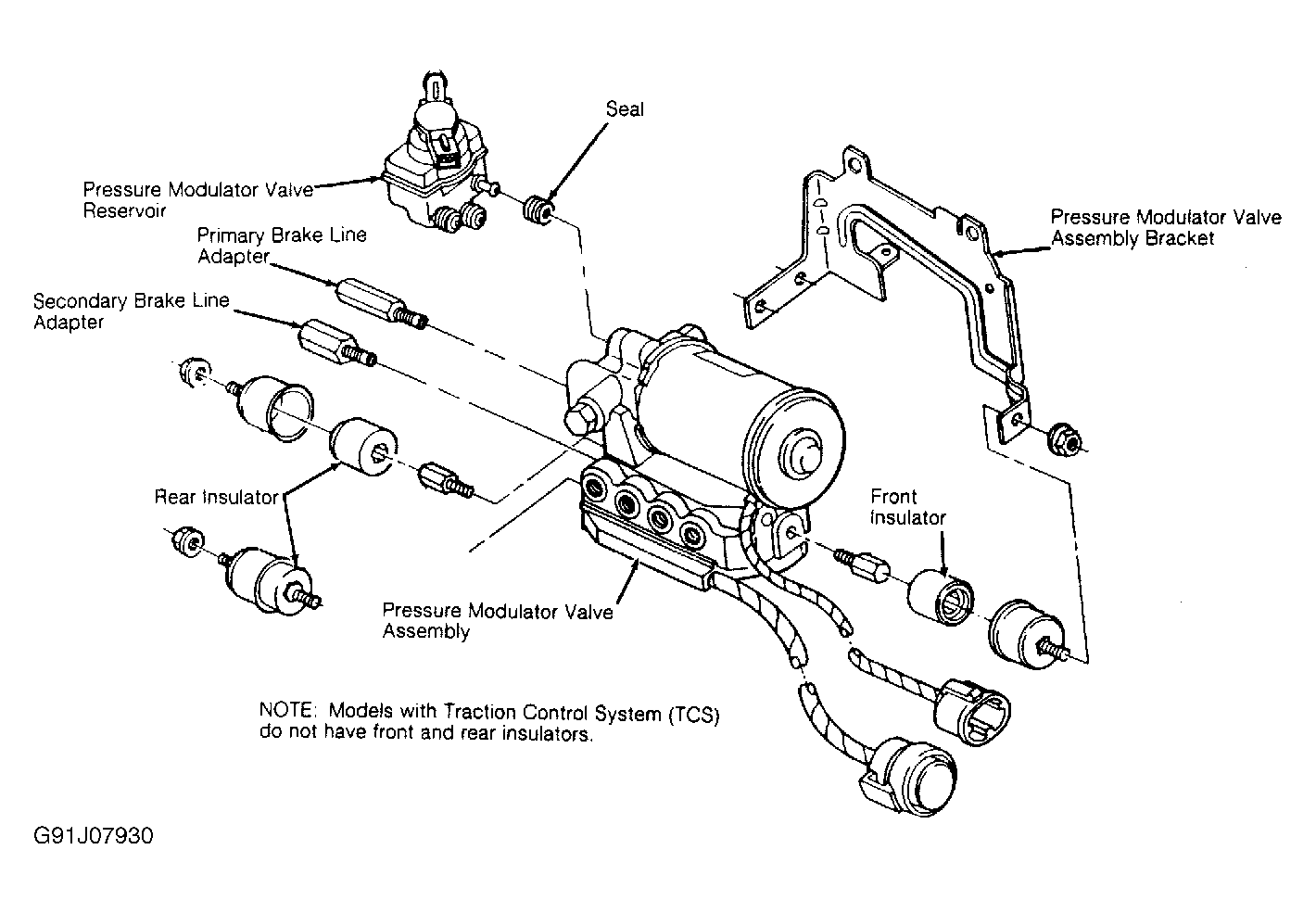

Fig 1: Exploded View Of Pressure Modulator Valve Assembly

Courtesy of GENERAL MOTORS CORP.
