Wiring Diagrams

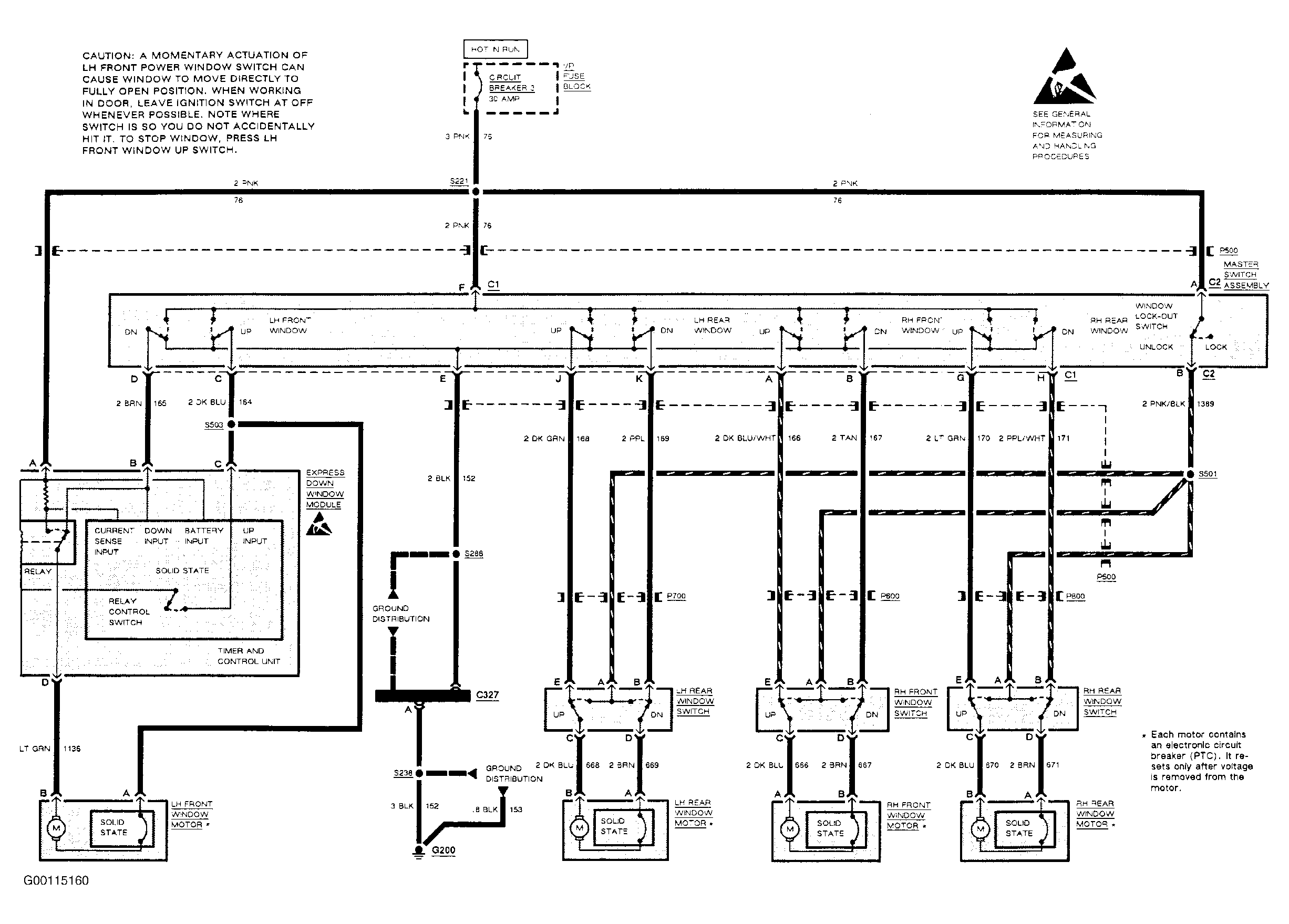

Fig 1: Power Window Wiring Diagram (LeSabre)

G00115160

Courtesy of GENERAL MOTORS CORP.
