Test B: Luggage Compartment Release Isolation

To perform Luggage Compartment Release Isolation testing, refer to illustration. See Fig 1 .

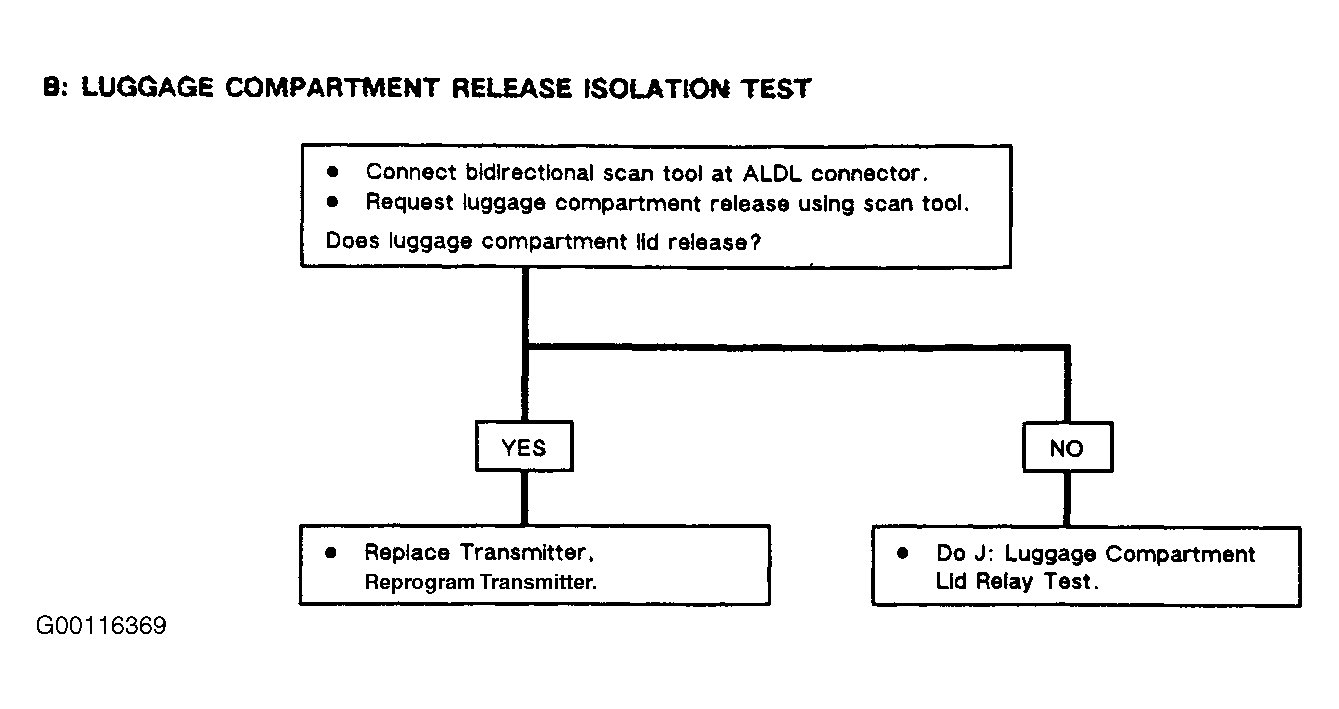

Fig 1: Testing Luggage Compartment Release Isolation

Courtesy of GENERAL MOTORS CORP.
