Home >> Buick >> 1991 >> LeSabre Base, 4T60/ME9 >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Tests W/Codes - 3.8L PFI >> Diagnostic Flow Charts >> Code 38, Brake Switch Circuit >> If Code 26 is set with Code 38, see Code 26 chart.

If Code 26 is set with Code 38, see Code 26 chart.

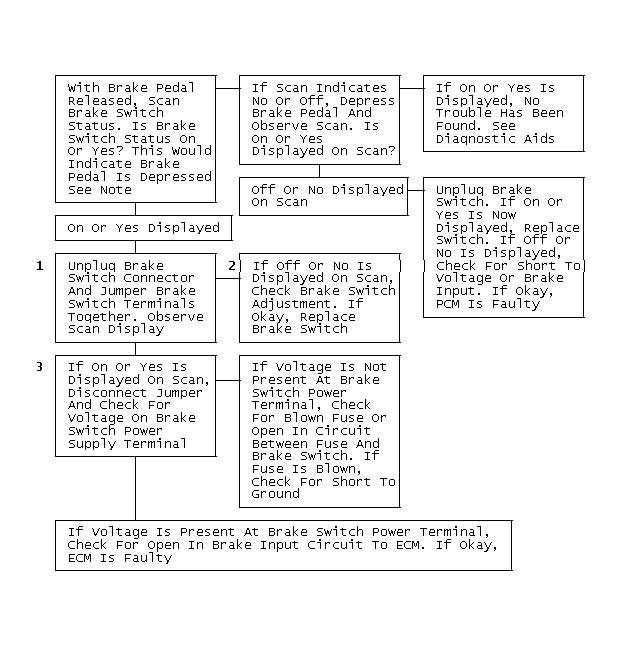

Fig 1: Code 38, Flow Chart

GB0021326
