Note on Intermittents

Since all 4 (or 3 in the case of Reatta) groups of relays can cause an intermittent condition, see NOTE ON INTERMITTENTS (in each CODE B420 Cont.) for each of the relays.

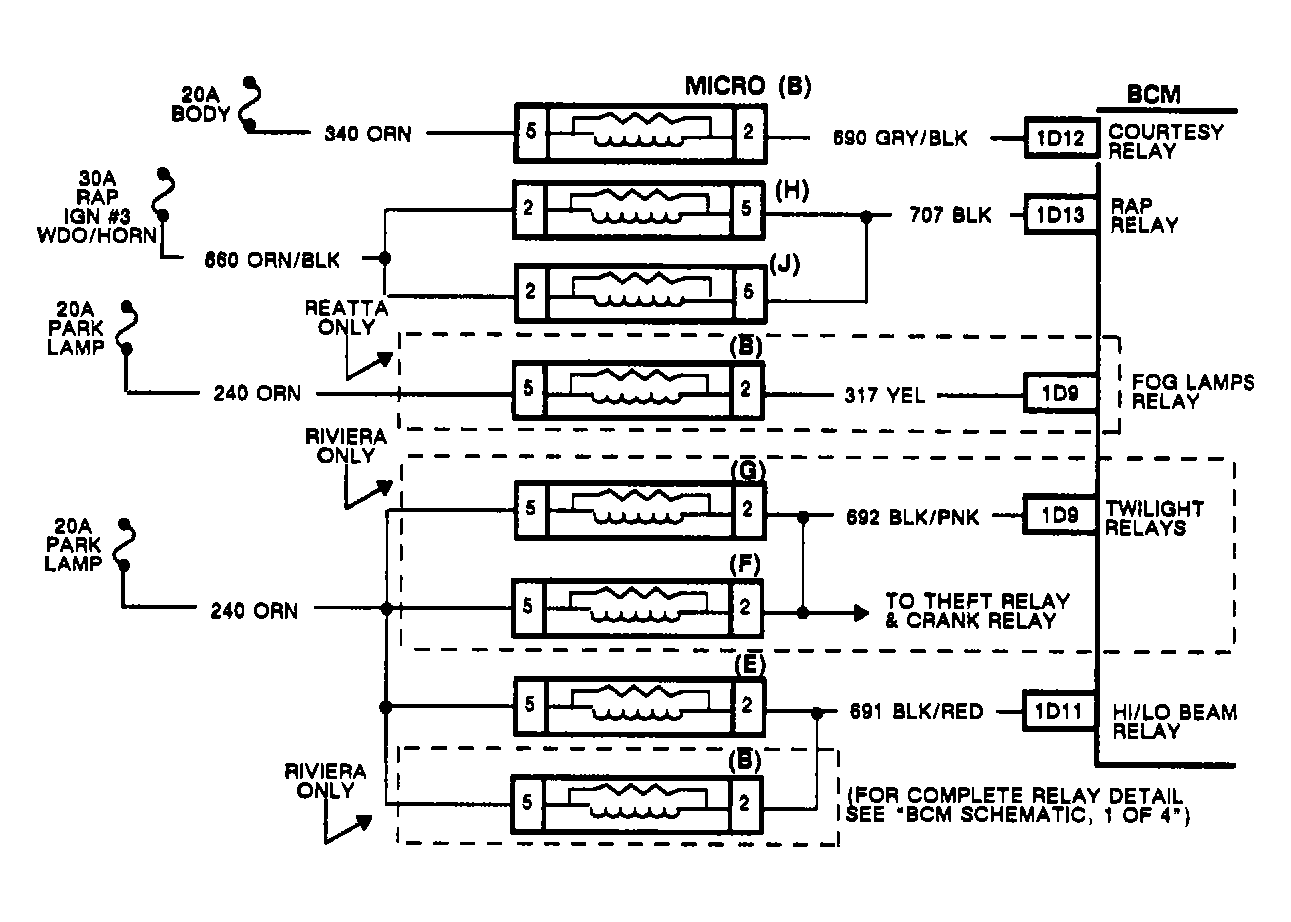

Fig 1: Code B420: Circuit Diagram
G90D21777

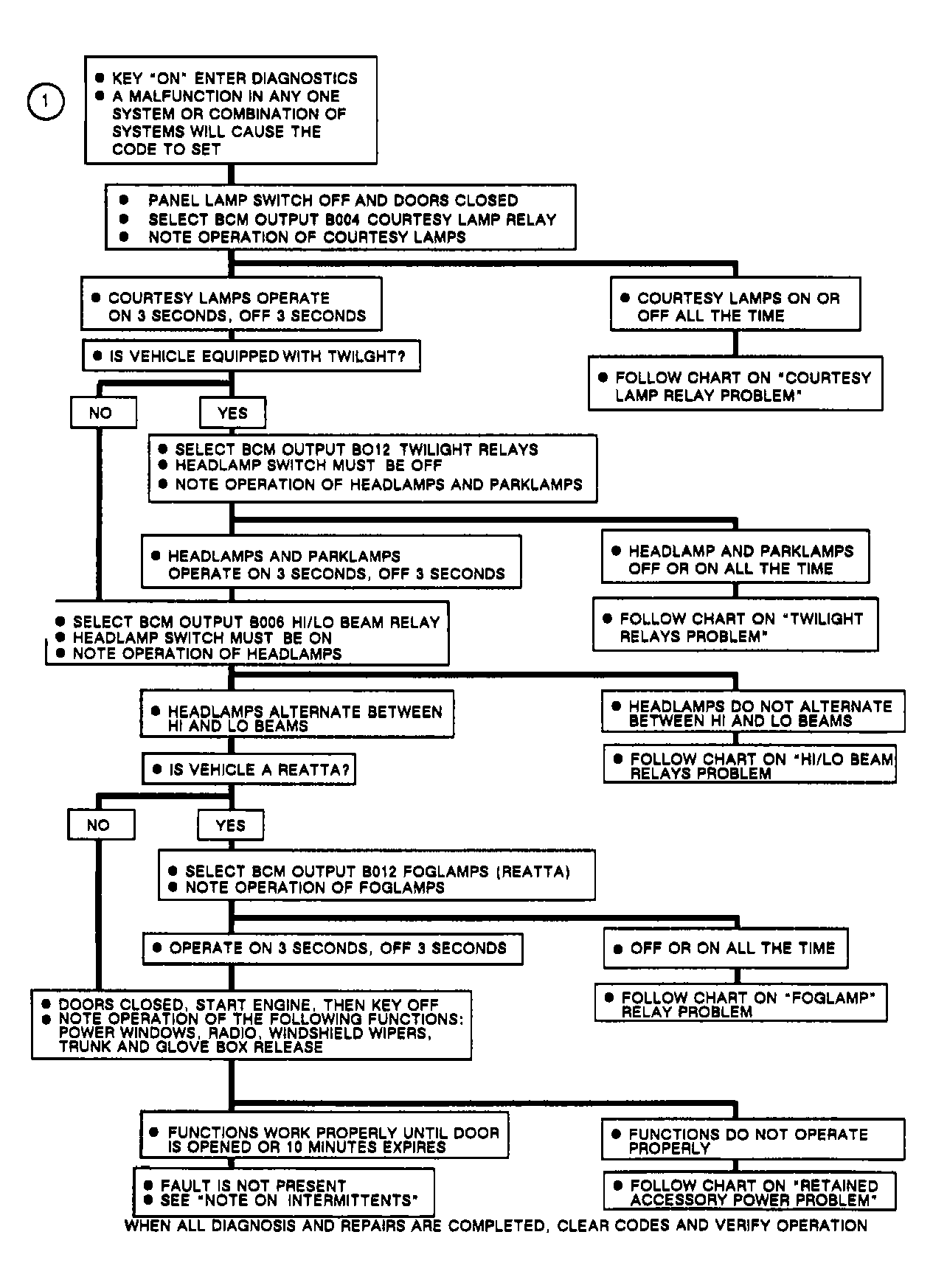

Fig 2: Code B420: Flow Chart Twilight Light Relay Circuit
G90B14622
