Engine Controls - Tests W/Codes - 3.8L PFI
>>
Diagnostic Code Charts: 13 - 65
>>
Code 41: Cam Sensor Circuit
>>
Notes
Code 41: Cam Sensor Circuit: Notes
Quick reference:
See
Figure
for Code 41 flow chart.

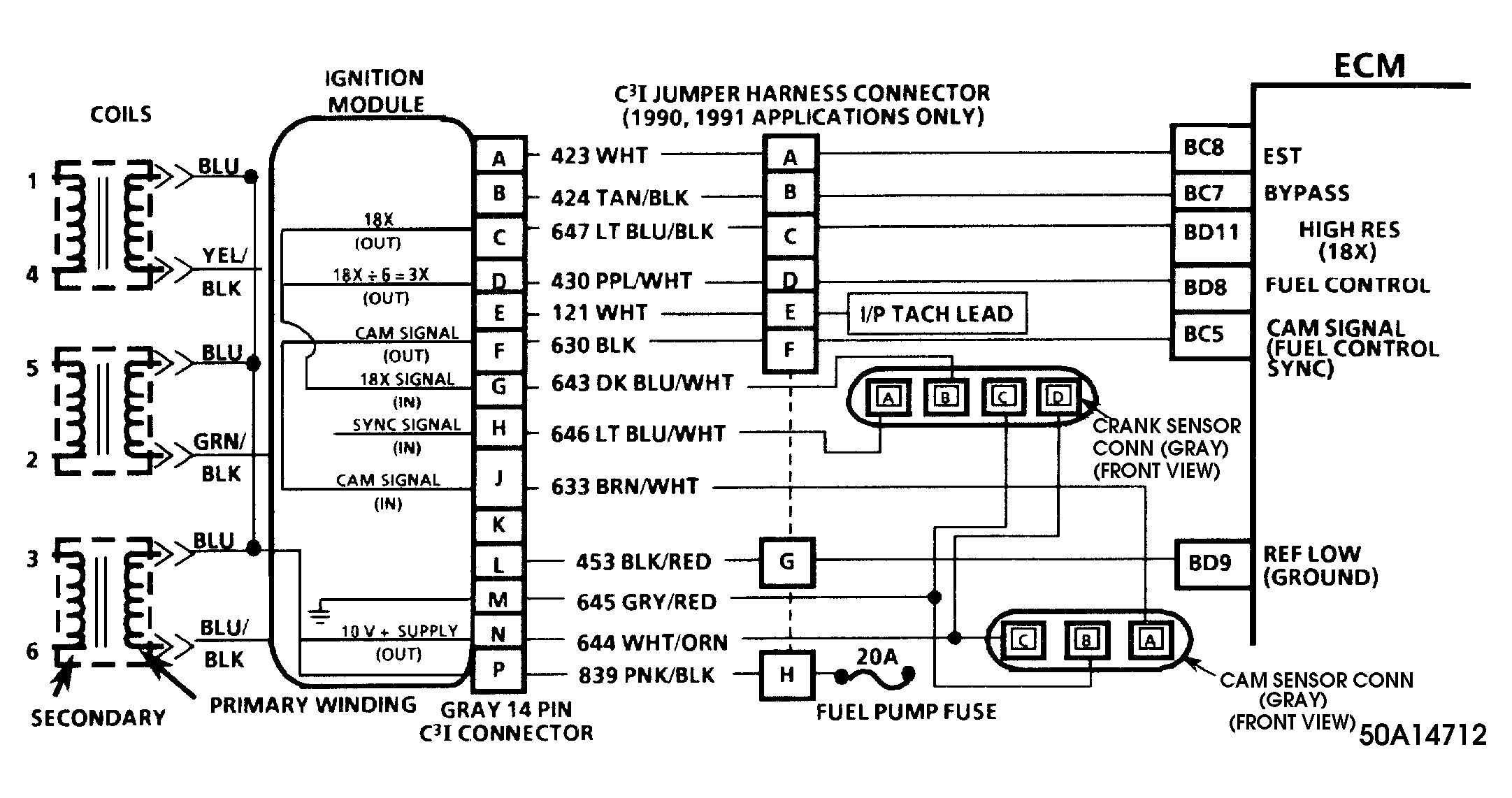

See
Figure
for Code 41 supplemental wiring.
