Diagnostic Aids

Check circuit No. 496 for a potential short or open to ground. Also check for proper installation of MEM-CAL. Mechanical engine knock can cause a knock sensor signal. Abnormal engine noise must be corrected before using this chart.

NOTE: Code 43 circuit diagram and flow chart has been updated by Technical Service Bulletin No. 91-6-6, dated 8/24/90 for Pontiac models and Technical Service Bulletin No. 91-6E-01, dated 8/24/90 for Buick models.

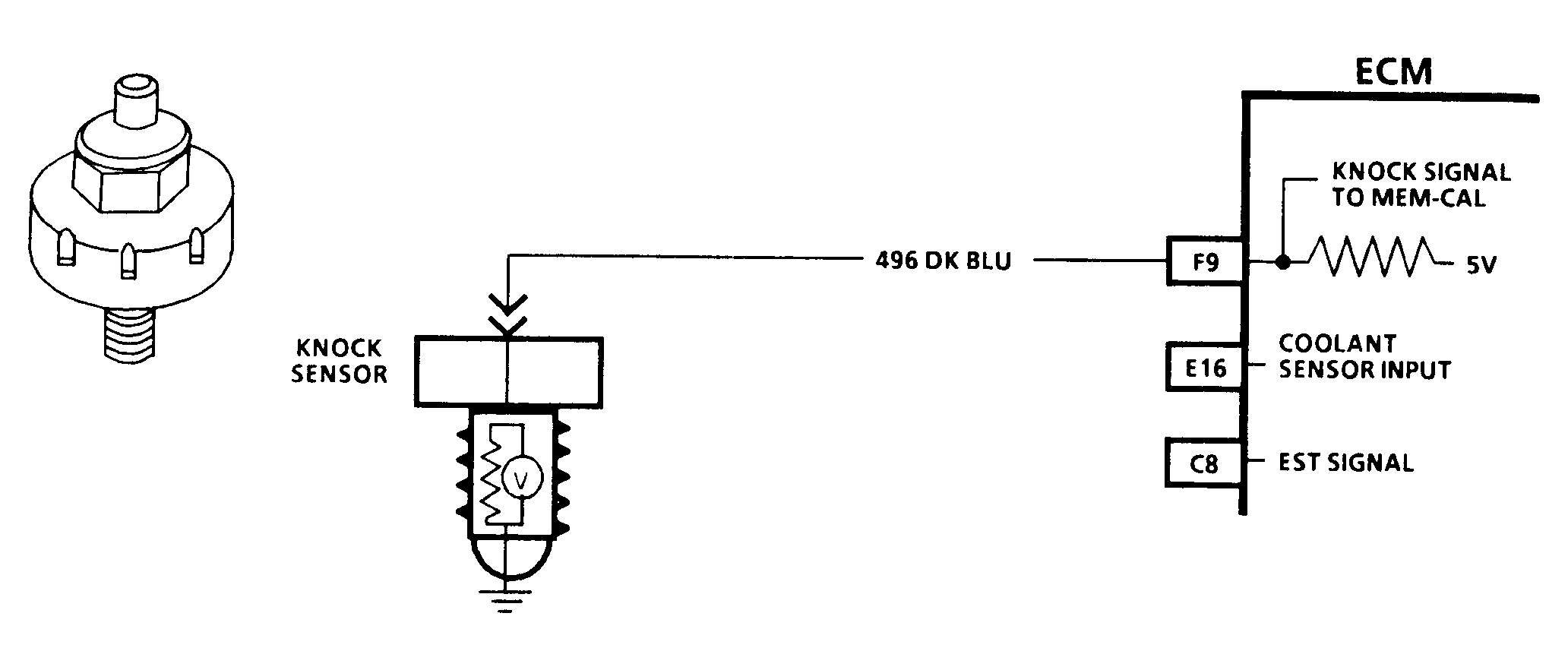

Fig 1: Code 43 Circuit Diagram, Electronic Spark Control
G200117
Fig 2: Code 43 Flow Chart, Electronic Spark Control
G50E08475
