Preliminary Checking Procedure

Check prior to making control pressure test:

• Check transmission fluid level.
• Check and adjust T.V. cable.
• Check and adjust outside manual linkage.
• Check engine tune-up.
• Install oil pressure gauge. See Fig 1 .
• Connect tachometer to engine.
• Check electrical system.
• Check vacuum modulator.

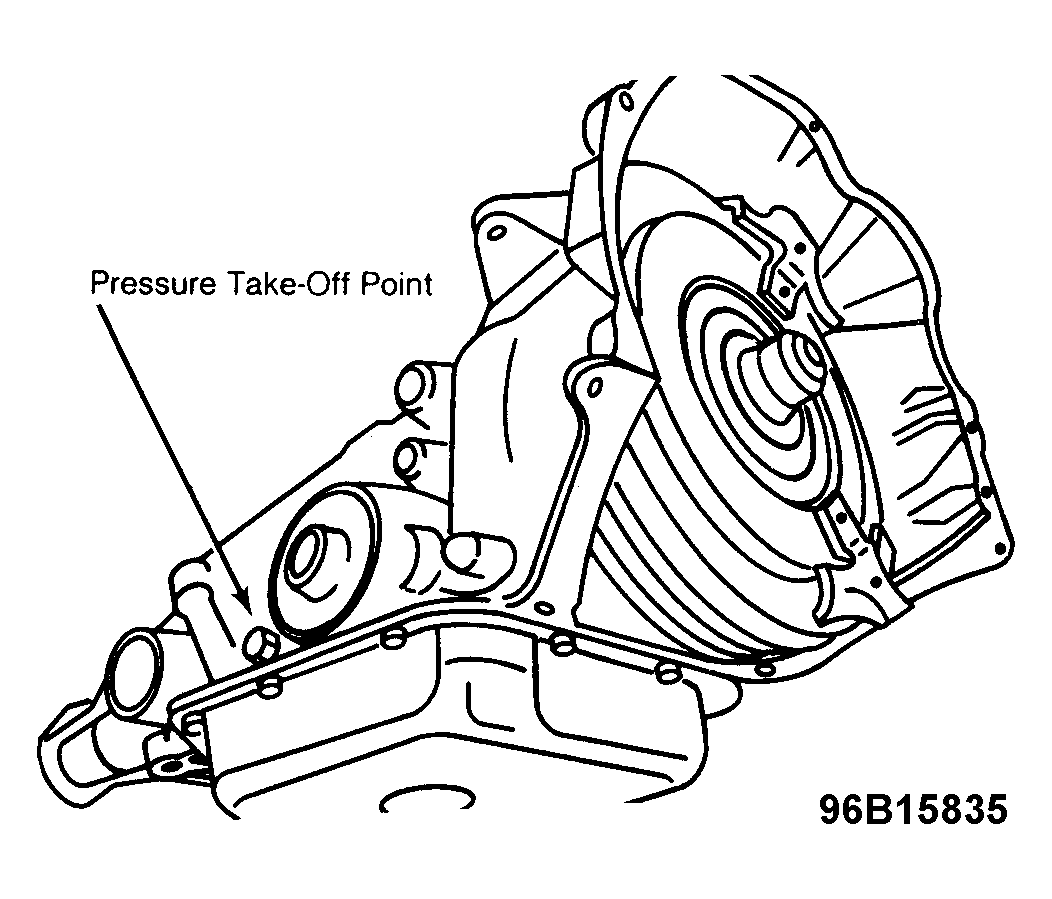

Fig 1: Location of Control Pressure Test Take-Off Point

Courtesy of GENERAL MOTORS CORP.
