Programming the tire data (wheel electronics)
NOTE:
TECHNICAL INFORMATION
After replacing a tire or wheel electronics, the wheel electronics must be reprogrammed for the tire!
If the programmable wheel electronics are depressurized (tires removed) longer than 2 min, then the tire data set written on the wheel electronics is deleted.
The programmable wheel electronics must be reprogrammed with the tire data set from the QR code on the tire sidewall using the special tool (RDC Tool).

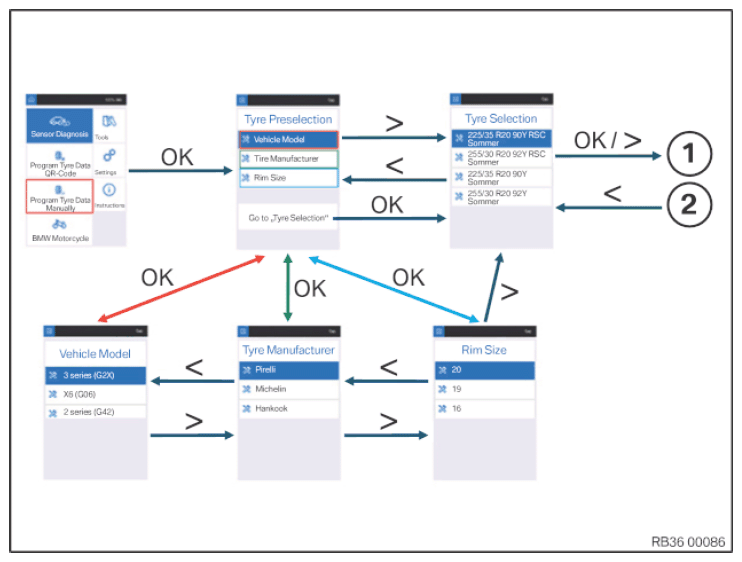

New: If no QR code is available on the tire, the tire data must be programmed manually using the special tool (RDC Tool) (see flowchart).
The exact procedure must be taken from the operating instructions for the special tool (RDC Tool).
After replacing a tire or wheel electronics, the wheel electronics must be reprogrammed for the tire!
If the programmable wheel electronics are depressurized (tires removed) longer than 2 min, then the tire data set written on the wheel electronics is deleted.
The programmable wheel electronics must be reprogrammed with the tire data set from the QR code on the tire sidewall using the special tool (RDC Tool).
New: If no QR code is available on the tire, the tire data must be programmed manually using the special tool (RDC Tool) (see flowchart).
The exact procedure must be taken from the operating instructions for the special tool (RDC Tool).

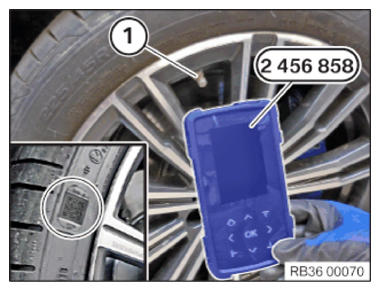

- Scan the tire data (QR code) with the special tool 2 456 858 on the tire.
- Program the tire data on the wheel electronics (1) with the special tool 2 456 858.
- Adjust the tire pressure.
- Start the tire recognition in the central information display (CID).
Programming other wheel electronics
-> After successful programming on the sensor (valve), the same programming can be re-started on another sensor by pressing the "OK" button (3).
-> The arrow button "<" (2) takes you back to the tire selection!
-> In the event of a fault message, the "OK" button takes you back to the start of programming.
