Install accelerator pedal module

Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Damage to wiring harness
During the assembly of the accelerator pedal module, make sure that the cable is not pinched between the holder and the accelerator pedal module.

Damaged wiring harness must be replaced.

Courtesy of BMW OF NORTH AMERICA, INC.

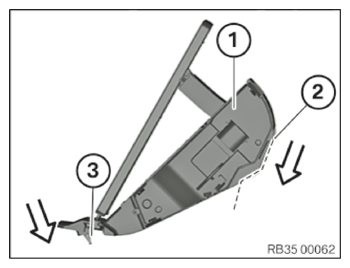

First, insert the accelerator pedal module (1) at the top into the holder (2) in the arrow direction.
Then, align in the mounting (3) at the bottom.
A positioning pin at the bottom of the accelerator pedal module helps ensure correct alignment.
Replace the hexagon socket screw (1).
Parts: Hexagon socket screw
Fit the hexagon socket screw (1) and tighten.

TIGHTENING TORQUE SPECIFICATION

Accelerator pedal module to body
M6 Replace screw.	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Clip in the cover.
