Detaching rear active stabilizer
Detaching rear active stabilizer

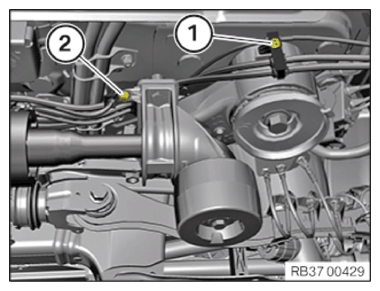

Loosen screws (1) and (2).
Release the vehicle wiring harness of the active stabilizer with both cable brackets.
Courtesy of BMW OF NORTH AMERICA, INC.

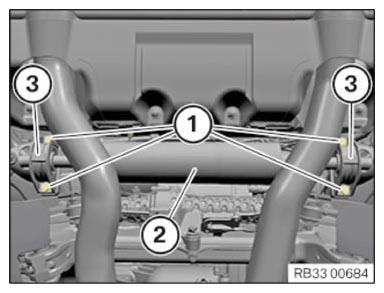

Loosen screws (1).
Active stabilizer (2) swivels down with retainers (3).
Courtesy of BMW OF NORTH AMERICA, INC.
