(Replacing recirculated air microfilter)
WARNING: This page is about a different car, the 2018 BMW X5 M, 2017 BMW X5 M, 2016 BMW X5 M, and 2015 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
64 31 017 Replacing recirculated air microfilter
IMPORTANT:
Risk of damage!
A/C system must not be operated without the prescribed filter element.
Follow manufacturer's instructions.
A/C system must not be operated without the prescribed filter element.
Follow manufacturer's instructions.
- Remove lower dashboard trim panel

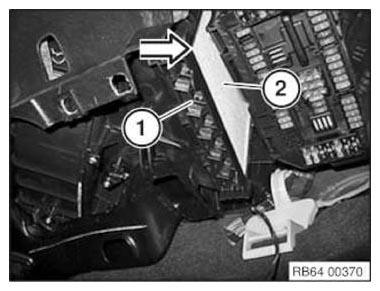

Slide lock (1) in direction of arrow and remove.
Feed out filter (2) towards bottom.
Installation note:
Replacement filter consists of two halves.
