Installing the front spring strut

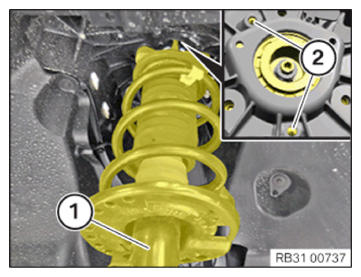

Position the front spring strut (1) completely with the swivel bearing in the wheel well.
Make sure the pins (2) of the support bearing are in the correct position.

Courtesy of BMW OF NORTH AMERICA, INC.

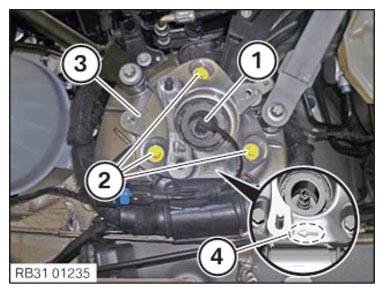

Position the mount (3) on the shock tower.
The arrow points (4) in the driving direction.
Replace screws (2).
Parts: Screws

Tighten the screws (2).

TIGHTENING TORQUE SPECIFICATION

Front support bearing to body
M8 Replace screws.	Joining torque	28 Nm
M8 Replace screws.	Angle of rotation	90°

Courtesy of BMW OF NORTH AMERICA, INC.
