Installing the cooling module

Check

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

NOTE: Perform the steps on the right and left side.

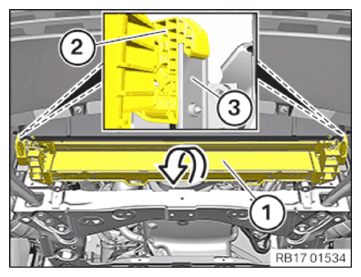

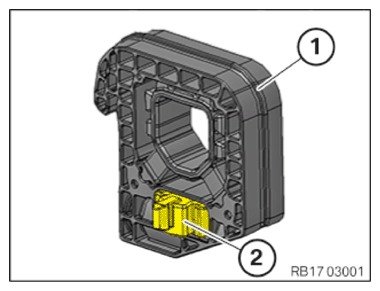

Check if stop pad (2) is present on cooler module mount (1).
Result

» Stop pad (2) is not present .

Measure
- Replace stop pad (2).
  Result

  » Stop pad (2) is present .

  Measure
- Continue with the next step.
Courtesy of BMW OF NORTH AMERICA, INC.

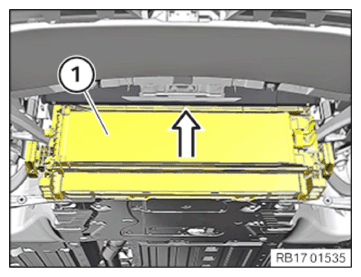

Feed in the cooling module (1) with the help of a support person from below in the direction of arrow and install it.

Courtesy of BMW OF NORTH AMERICA, INC.
Attach the cooling module (1) with the cooler module mounts (2) in the direction of arrow to the side member (3).

Courtesy of BMW OF NORTH AMERICA, INC.

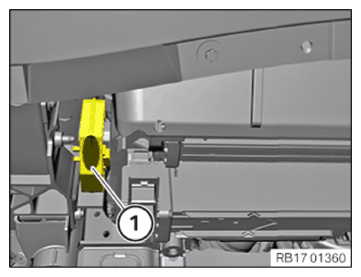

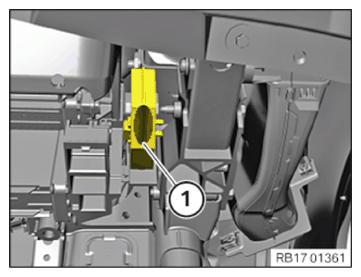

Tighten the screw (1) on the right cooler module mount.

TIGHTENING TORQUE SPECIFICATION

Cooling module to side member
M6	tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten the screw (1) on the left cooler module mount

TIGHTENING TORQUE SPECIFICATION

Cooling module to side member
M6	tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

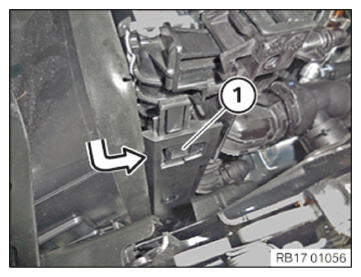

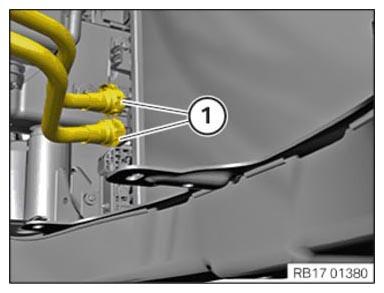

Connect the transmission oil lines (1) to the transmission oil cooler and audibly lock.

Courtesy of BMW OF NORTH AMERICA, INC.

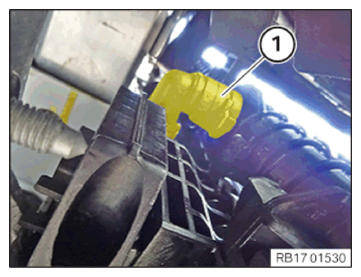

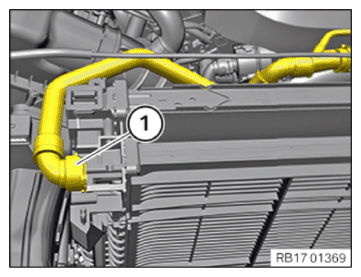

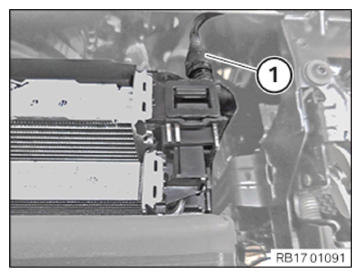

Connect and lock coolant line (1) to the low-temperature coolant expansion tank.
The coolant line (1) must audibly engage.

Courtesy of BMW OF NORTH AMERICA, INC.
Connect and lock coolant line (1) to the low-temperature coolant expansion tank.
The coolant line (1) must audibly engage.

Courtesy of BMW OF NORTH AMERICA, INC.
For better accessibility: Press the cooling module (1) in the direction of the arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

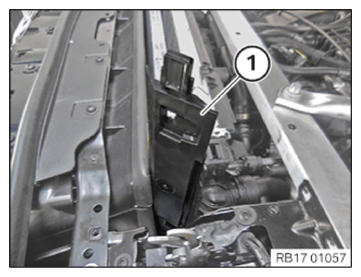

Insert the left cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Mount the left cover panel (1) on the cooling module and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: To provide a better overview: Illustration of surrounding parts removed.

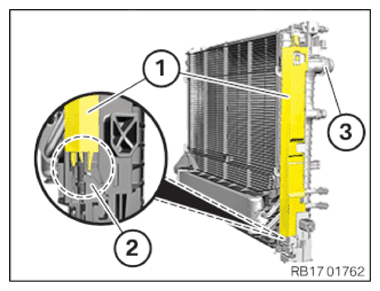

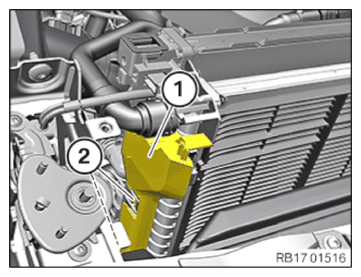

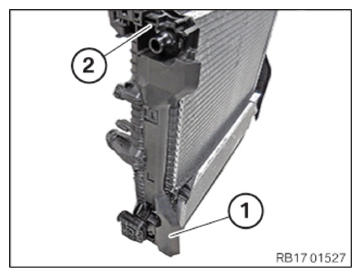

Mount the cover (1) on the left in the marked area on the low-temperature coolant radiator (2).
Check that the left cover (1) is seated correctly on the cooling module (3).

Courtesy of BMW OF NORTH AMERICA, INC.

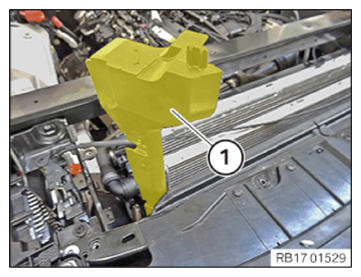

Feed in the cover (1) of the cooling module.

Courtesy of BMW OF NORTH AMERICA, INC.

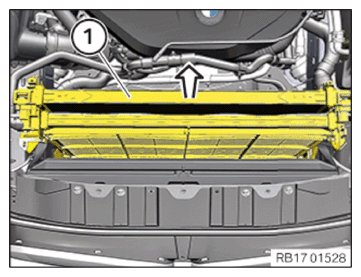

Feed in and install the cover (1) of the cooling module in the direction of the arrow.
Ensure that the locking mechanisms (2) properly engage.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: To provide a better overview: Illustration of surrounding parts removed.
Check that the right cover (1) is seated correctly on the cooling module (2).

Courtesy of BMW OF NORTH AMERICA, INC.

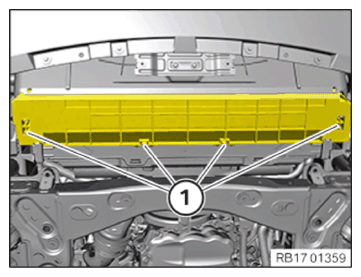

Install the cover panel at the bottom on the cooling module and lock the locks (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Securing the engine oil cooler

Precondition

Front assembly protection has been removed.

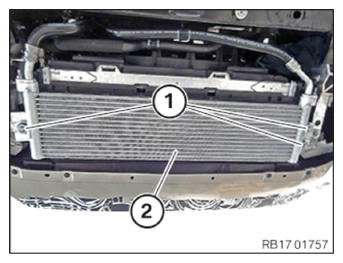

Insert the engine oil cooler (2) and position it.

Tighten the screws (1).

TIGHTENING TORQUE SPECIFICATION

Engine oil cooler on holder
Hexagon screw M8X35	tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

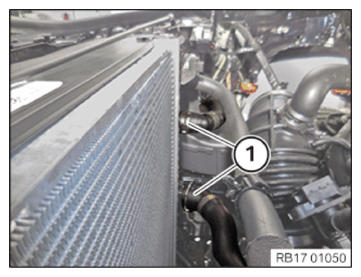

Connect the right coolant hoses (1) to the radiator and audibly lock it in place.

Courtesy of BMW OF NORTH AMERICA, INC.
Connect the coolant hose (1) to the radiator on the left and audibly lock it.

Courtesy of BMW OF NORTH AMERICA, INC.

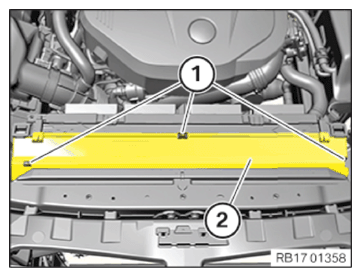

Install the upper cover panel (2) on the cooling module and lock the locks (1).

Courtesy of BMW OF NORTH AMERICA, INC.
