Installing front brake disc
NOTE:
TECHNICAL INFORMATION
Brake discs must only be replaced in pairs (per axle).
Fit new brake discs only together with new brake pads.
Brake discs must only be replaced in pairs (per axle).
Fit new brake discs only together with new brake pads.
- Thoroughly clean the contact surface of the wheel hub and remove traces of corrosion residue if necessary.
Unevenness in the contact surface can cause distortion in the brake disk (2) !

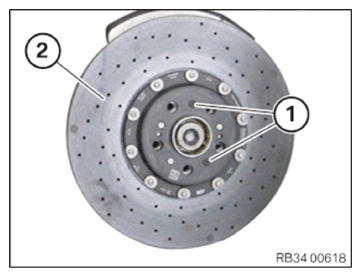

- Position the brake disc (2) .
- Replace screws (1)
.
Parts: Screws
- Tighten down screws (1) .
TIGHTENING TORQUES SPECIFICATION
| Brake disc to front wheel hub | ||
| M8 Replace screw. |
Tightening torque | 16 Nm |
