Remove all special tools

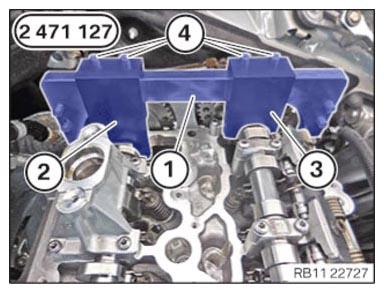

- Release the screws (4) from the set of special tools 2 471 127.
- Guide out the setting gauge 0.5° (2) from the special tool 2 471 127 between the exhaust camshaft and the basic carrier (1) and remove.
- Guide out the setting gauge 0.7° (3)
from the special tool 2 471 127
between the intake camshaft and the basic carrier (1)
and remove.

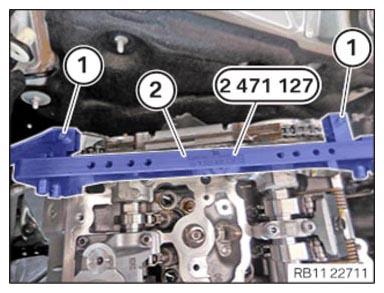

- Release the screws (1) from the set of special tools 2 471 127 .
- Guide out the basic carrier (2) from the special tool 2 471 127 and remove.

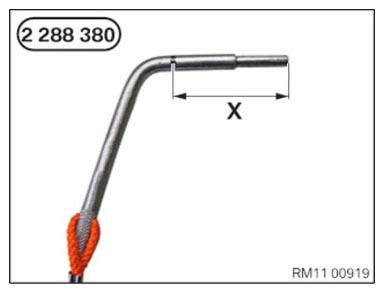

- Guide the special tool 2 288 380
out and remove.

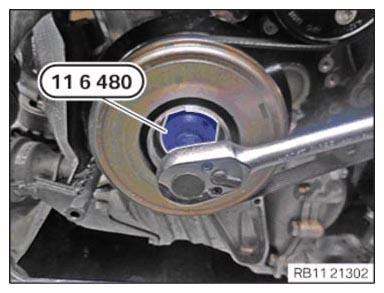

- Guide the special tool 0 493 380 (11 6 480)
out and remove.

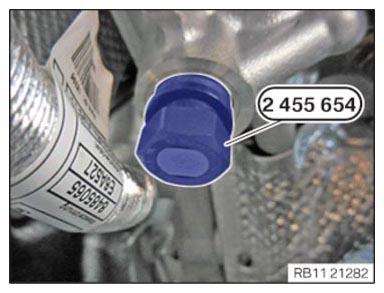

- Guide the special tool 2 455 654 out and remove.
