(Installing loading edge trim)

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details

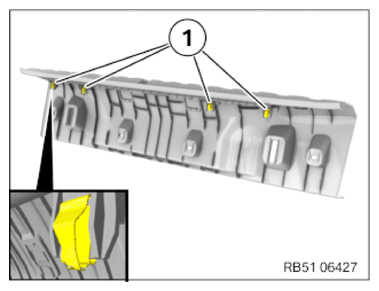

Check the clamps (1) for damage and replace if necessary

Courtesy of BMW OF NORTH AMERICA, INC.

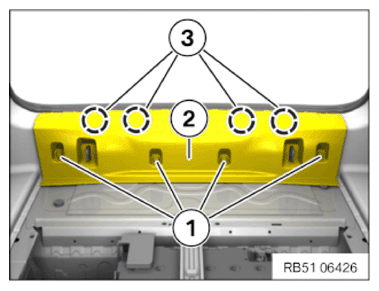

Feed loading edge trim (2) in beneath sealing lip of tailgate seal
Fit the trim of the loading edge (2) at the detents (3) and clip it in to the bottom
Secure expanding rivet (1)

Courtesy of BMW OF NORTH AMERICA, INC.
