Installing front storage compartment trim
Installing front storage compartment trim

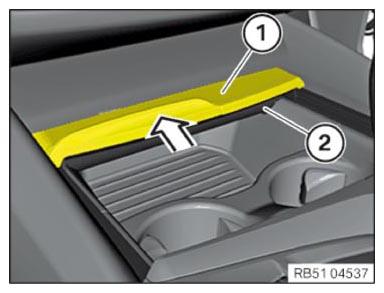

Position storage compartment trim
(1)
on the lower part
(2)
and clip it in toward the arrow direction.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
