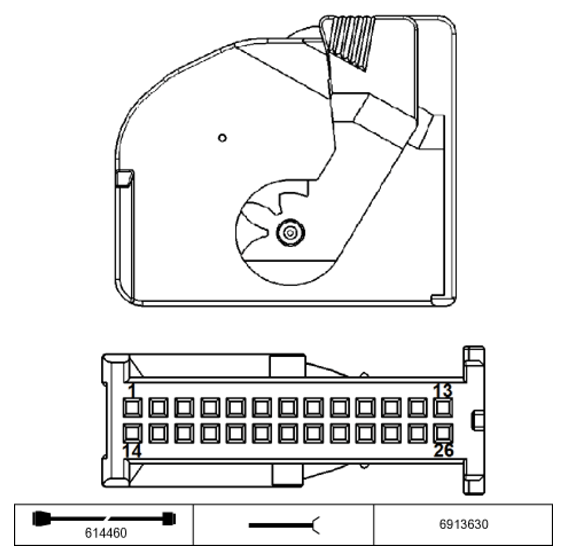

Convertible Top Module A41*2B Connector End View
Pin Assignments At Plug Connector A41*2B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | A | Supply | Angle-of-rotation sensor, main pillar |
| 2 | E | Signal | Angle-of-rotation sensor, main pillar |
| 3 | M | Ground | Angle-of-rotation sensor, main pillar |
| 4 | -- | Not used | |
| 5 | E | Hall sensor signal | Fin raised sensor, right |
| 6 | E | Hall sensor signal | Electric motor cowl panel lock drive |
| 7 | E | Hall sensor signal | Fin raised sensor, right |
| 8 | E | Hall sensor signal | Electric motor cowl panel lock drive |
| 9 | E | Hall sensor signal | Convertible top cover sensor locked sensor, left |
| 10 | E | Hall sensor signal | Convertible top cover locked sensor, right |
| 11 | -- | Not used | |
| 12 | -- | Not used | |
| 13 | E | Hall sensor signal | Open soft top compartment lid |
| 14 | A | Supply | Rotation angle sensor, fin |
| 15 | E | Signal | Rotation angle sensor, fin |
| 16 | M | Ground | Rotation angle sensor, fin |
| 17 | -- | Not used | |
| 18 | M | Ground | Fin raised sensor, right |
| 19 | E | Hall sensor signal | Electric motor cowl panel lock drive |
| 20 | M | Ground | Fin raised sensor, right |
| 21 | E | Hall sensor signal | Electric motor cowl panel lock drive |
| 22 | M | Ground | Convertible top cover sensor locked sensor, left |
| 23 | M | Ground | Convertible top cover locked sensor, right |
| 24 | -- | Not used | |
| 25 | -- | Not used | |
| 26 | M | Ground | Open soft top compartment lid |
