11 34 004 Adjust valve clearance (W20)

Special tools required:

Necessary preliminary tasks:

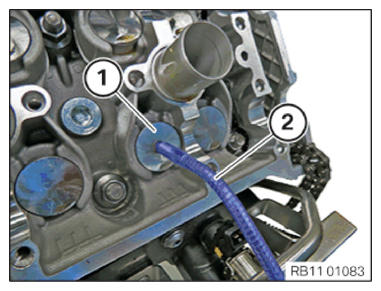

Remove bucket tappets (1) by means of a magnet (2).

Set down bucket tappets on special tool 11 4 480 in a tidy and orderly fashion.

Fig 1: Removing Bucket Tappets With Magnet

Courtesy of BMW OF NORTH AMERICA, INC.

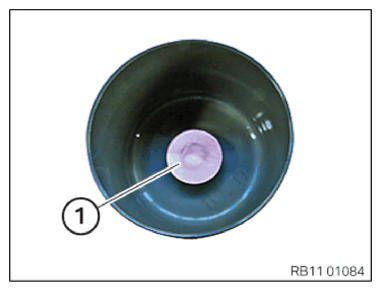

Compensating plate (1) is removed with the magnet.

Fig 2: Identifying Compensating Plate

Courtesy of BMW OF NORTH AMERICA, INC.

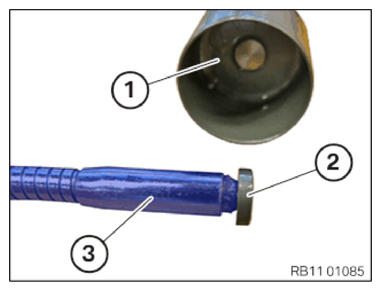

Remove compensating plate (2) with a magnet (3) from the bucket tappet (1).

Installation note:

Determine compensating plate (2) according to ID code.

Fig 3: Identifying Bucket Tappet, Compensating Plate And Magnet

Courtesy of BMW OF NORTH AMERICA, INC.

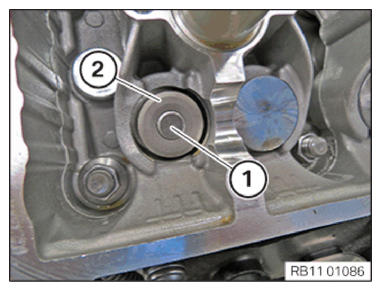

Insert compensating plate (1) on the valve head (2) with the ID code facing up.

Position set bucket tappet over valve head.

Fig 4: Identifying Compensating Plate And Valve Head

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check VALVE CLEARANCE and adjust if necessary.
